EVC134 is a 20 m industrial connection cable designed for extended M12 connectivity in automation systems. It features a PUR halogen-free cable, gold-plated contacts and durable M12 connectors. Its high IP protection makes it suitable for demanding industrial environments. The cable is also designed for dynamic applications and drag-chain installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Extended Connectivity
The 20 m cable length provides convenient routing across larger machines and automation installations. It reduces the need for additional cable extensions in many applications. M12 connections provide standardized connectivity between field devices. The cable is suitable for industrial sensor and actuator networks.
Harsh Environment Protection
EVC134 is designed for environments involving dust, moisture, oils and coolants. IP65, IP67, IP68 and IP69K ratings provide strong environmental protection. The PUR cable jacket supports demanding industrial use. FKM sealing further supports reliable connector sealing.
Mechanical Reliability
The cable is suitable for drag-chain applications and repeated movement. Its construction supports more than 5 million bending cycles. The minimum bending radius is 10 times the cable diameter. This helps support long-term operation in automated machinery.
Automation Integration

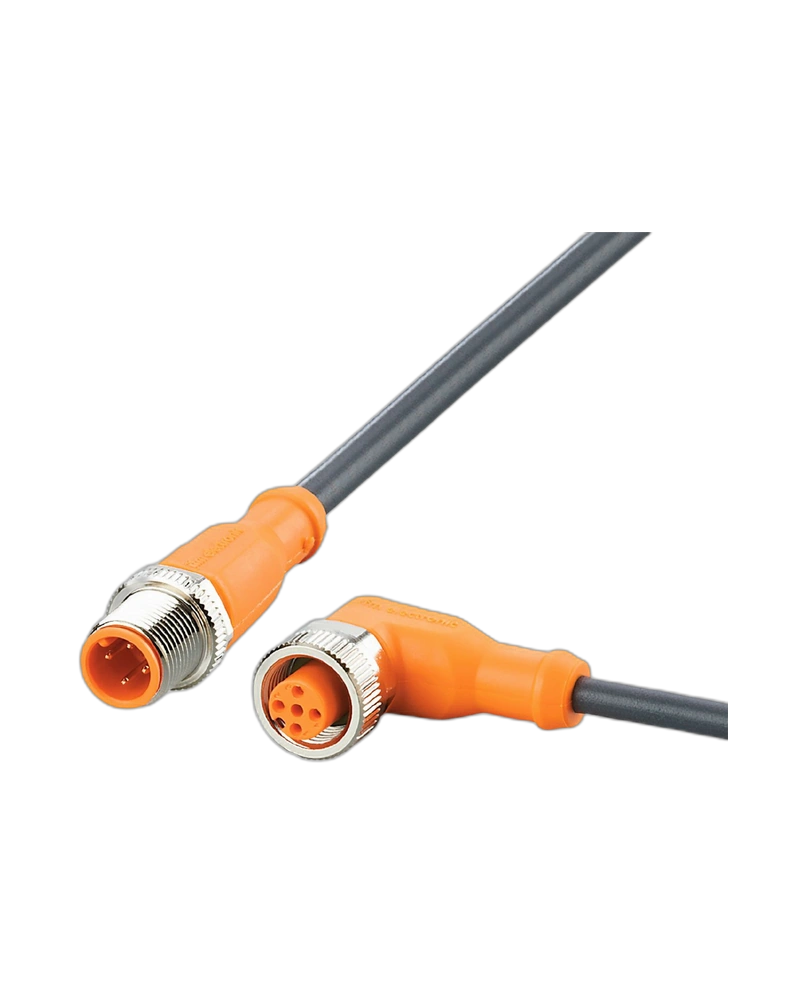

The straight M12 plug and angled M12 socket provide practical installation flexibility. Gold-plated contacts support reliable electrical connectivity. The cable is halogen-free and silicone-free. It is well suited for factory automation and machine-tool environments.
20 m cable length
M12 A-coded connectors
Gold-plated contacts
PUR halogen-free cable
IP65 / IP67 / IP68 / IP69K
Oil and coolant resistant
Drag-chain suitable
FKM sealing
Vibration and shock resistant
Suitable for harsh industrial environments
Factory automation
Machine tools
Industrial sensor connections
Robotic equipment
Conveyor systems
Control and monitoring systems
Dynamic machinery
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Model | VDOAH040MSS0020H04STGH040MSS |
| Cable Length | 20 m |
| Connector | M12 |
| Connector Configuration | Straight plug / angled socket |
| Coding | A-coded |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Ø 4.3 mm |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM |
| Nut Material | Nickel-plated brass |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Weight | Approx. 548 g |
| Pack Quantity | 1 pc |
