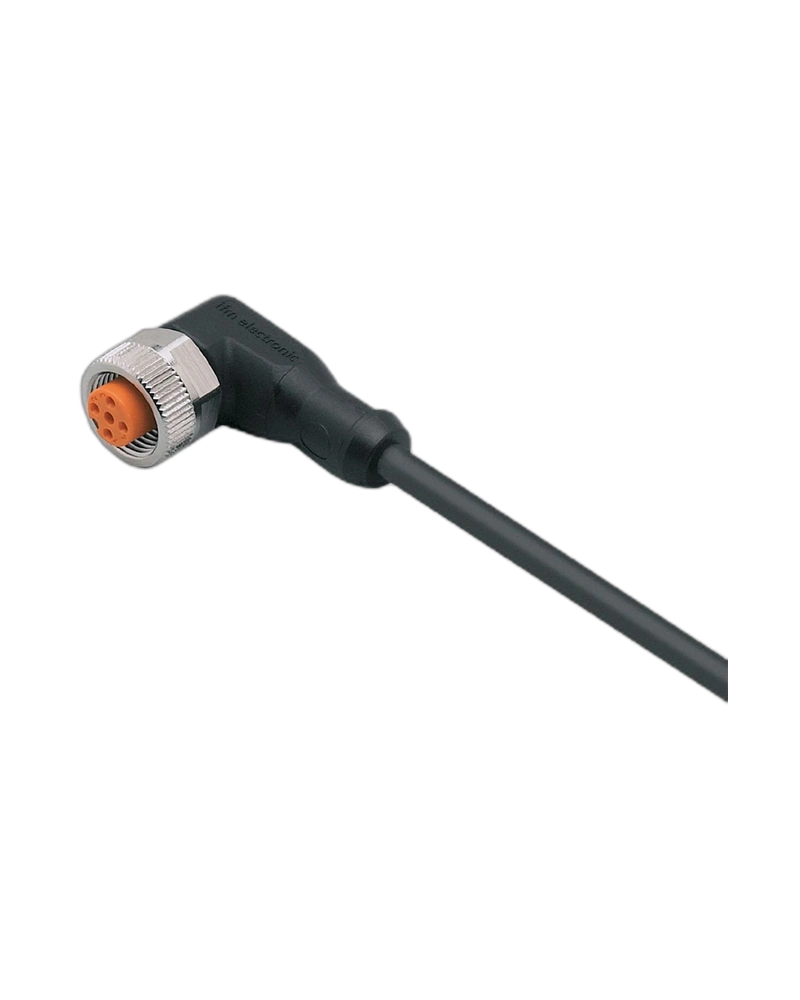

IFM EVC130 is a 20 m M12 female cordset designed for compatible PNP sensors in industrial automation systems. It features an angled M12 socket, gold-plated contacts and a flexible PUR cable. Integrated LEDs provide power and switching-status indication. High IP protection and drag-chain suitability support reliable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 20 m cable length provides extended connection capability for sensors positioned far from control equipment. The angled M12 socket supports convenient installation and cable routing. The flexible PUR cable is suitable for industrial machine environments. Secure locking helps maintain a reliable connection during operation.
The EVC130 operates from 10 to 36 V DC and supports a maximum current load of 4 A. Its PNP electrical design is suitable for compatible sensor applications. Gold-plated contacts support reliable signal transmission. Green and yellow LEDs provide convenient status indication.
The cable is designed for industrial applications involving oils and coolants. It provides IP65, IP67, IP68 and IP69K protection. The PUR cable supports repeated movement and drag-chain use. More than 5 million bending cycles help provide long-term durability.
20 m PUR cable
M12 angled female socket
DC PNP electrical design
10–36 V DC operating voltage
4 A current rating
4 × 0.34 mm² cable
Gold-plated contacts
Green power LED
2 yellow switching-status LEDs
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
PNP sensor connections
Industrial automation
Factory automation
Machine monitoring
Production systems
Control equipment
Long-distance sensor connections
| Specification | Details |
|---|---|
| Product Model | EVC130 |
| Part Number | ADOAH043MSS0020H04 |
| Product Type | Female Cordset / Connection Cable |
| Manufacturer | IFM |
| Connector | M12 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Cable Length | 20 m |
| Cable Material | PUR |
| Cable Construction | 4 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, black transparent |
| Sealing Material | FKM / Viton |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Power LED | Green |
| Switching Status | 2 × yellow LEDs |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Weight | 568.7 g |
