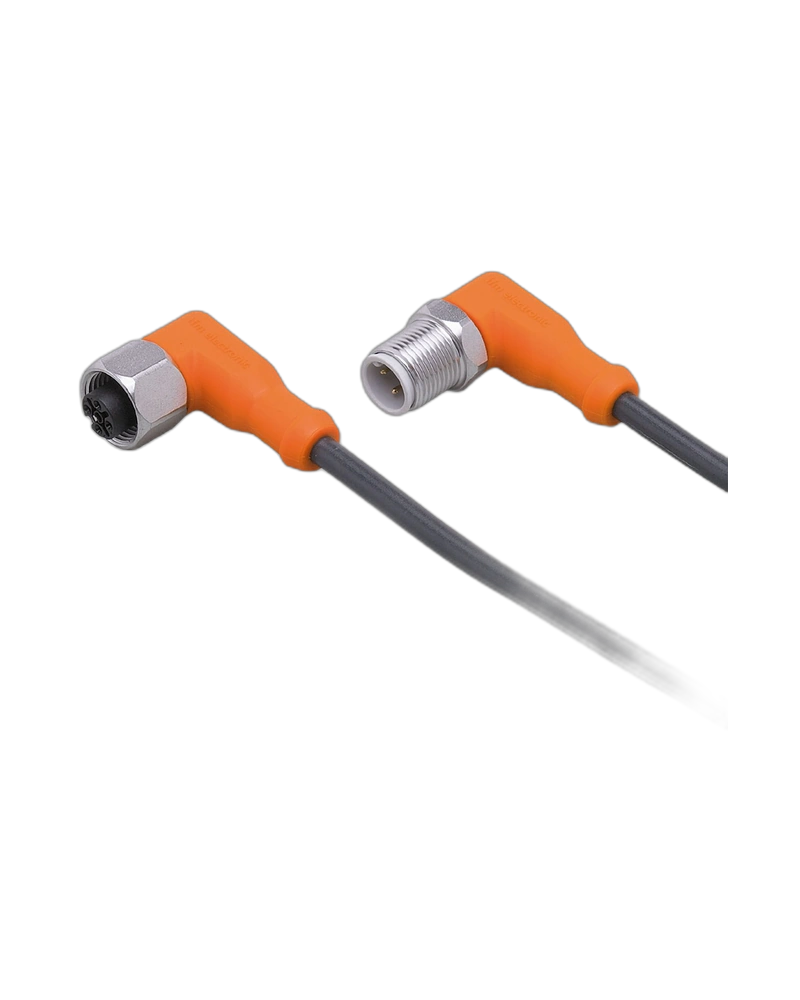

IFM EVC12A is a 5 m M12 connection cable designed specifically for applications in hazardous areas. It features angled M12 connectors, gold-plated contacts and a robust PUR cable. The cable provides reliable protection against oils, coolants, vibration and shock. ATEX and IECEx approvals make it suitable for compatible hazardous-area applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC12A is designed for use in suitable hazardous-area applications where certified connection technology is required. Its M12 connectors provide secure industrial connectivity. Gold-plated contacts support reliable electrical transmission. The stainless-steel locking components provide strong mechanical coupling.
The 5 m PUR cable provides flexibility and mechanical durability. TPU connector bodies and FKM sealing support reliable environmental protection. Stainless-steel 316L locking components provide enhanced corrosion resistance. The cable is also halogen-free and suitable for paint-compatible applications.
The cable provides IP67 protection in the specified hazardous-area application and IP68/IP69K when used outside the hazardous area. It supports operation from -20°C to +60°C. ATEX and IECEx approvals support suitable explosive-atmosphere applications.
5 m PUR cable
M12 angled plug and angled socket
4 contacts
Gold-plated contacts
Halogen-free construction
ATEX approved
IECEx approved
60 V AC/DC operating voltage
2 A current rating
IP67 protection
IP68 / IP69K outside hazardous areas
Stainless-steel 316L locking components
Oil and coolant resistant
Hazardous-area automation
Industrial process equipment
Explosive atmosphere applications
Chemical processing equipment
Oil and gas environments
Paint-compatible industrial applications
Industrial sensor connections
| Specification | Details |
|---|---|
| Product Model | EVC12A |
| Part Number | VDOAH040VAT0005H04STAH040VAT |
| Product Type | Connection Cable |
| Manufacturer | IFM |
| Connector 1 | M12 Plug |
| Connector 1 Design | Angled |
| Connector 2 | M12 Socket |
| Connector 2 Design | Angled |
| Coding | A-coded |
| Number of Contacts | 4 |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Construction | 4 × 0.34 mm² |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 2 A |
| Protection Class | II |
| Ambient Temperature | -20°C to +60°C |
| Protection Rating | IP67 |
| Protection Outside Hazardous Area | IP68 / IP69K |
| Housing Material | TPU, orange |
| Sealing Material | FKM |
| Nut Material | Stainless steel 316L |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Special Feature | Halogen-free |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | BVS 08.0041 U |
| Hazardous Area Marking | II 3G Ex ec IIC Gc / II 2D Ex tb IIIC Db |
| Dimensions | 31 × 15.5 × 36.5 mm |
| Weight | 212.5 g |
