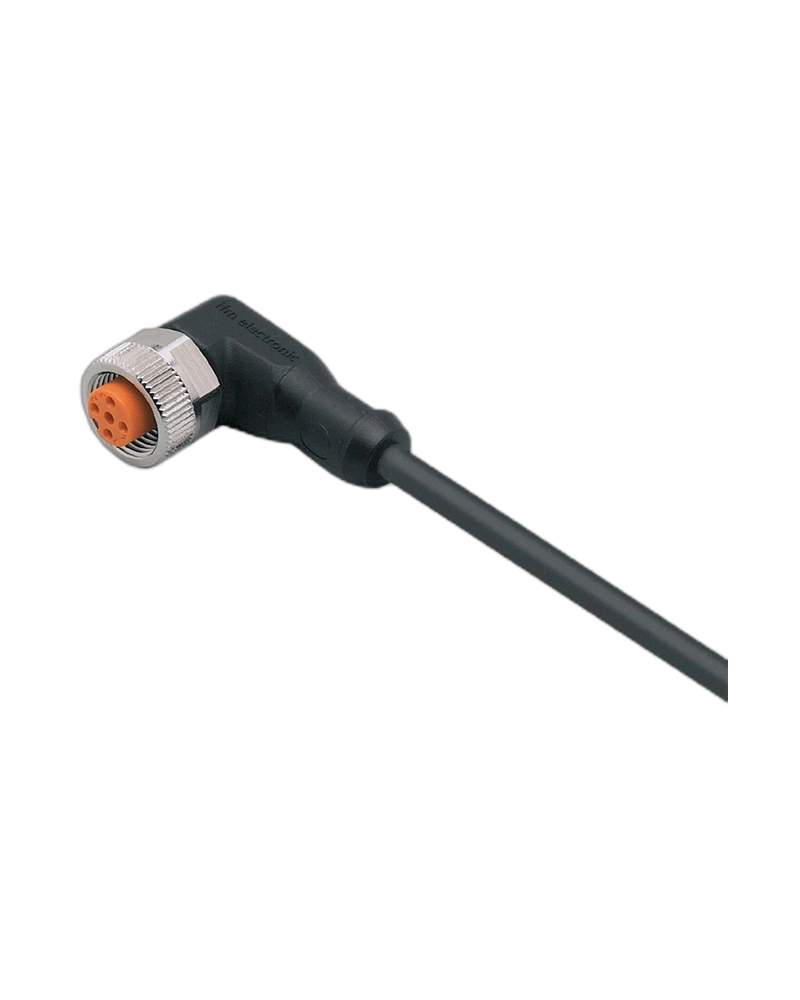

IFM EVC129 is a 15 m M12 female cordset designed for connecting compatible PNP sensors in industrial automation systems. It features an angled M12 socket with gold-plated contacts and a flexible PUR cable. Integrated LEDs provide power and switching-status indication. Its high IP protection and drag-chain suitability support demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 15 m cable length provides extended connectivity between sensors and control equipment. The angled M12 socket helps simplify installation in restricted spaces. The cable is designed for compatible M12 sensors. Its flexible construction supports practical routing across industrial machinery.
The EVC129 uses a DC PNP electrical design and operates from 10 to 36 V DC. It supports a maximum current load of 4 A. Gold-plated contacts help provide dependable electrical signal transmission. Integrated LEDs provide convenient operating and switching-status indication.
The PUR cable is halogen-free and designed for industrial environments. TPU housing and FKM sealing provide environmental protection. The cable supports IP65, IP67, IP68 and IP69K protection. Drag-chain suitability and more than 5 million bending cycles support repeated movement.
15 m PUR cable
M12 angled female socket
DC PNP electrical design
10–36 V DC operating voltage
4 A current rating
4 × 0.34 mm² cable
Gold-plated contacts
Green power LED
2 yellow switching-status LEDs
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
PNP sensor connections
Industrial automation
Machine monitoring
Factory automation
Production equipment
Sensor status indication
Control systems
| Specification | Details |
|---|---|
| Product Model | EVC129 |
| Part Number | ADOAH043MSS0015H04 |
| Product Type | Female Cordset / Connection Cable |
| Manufacturer | IFM |
| Connector | M12 Socket |
| Connector Design | Angled |
| Coding | A-coded |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Construction | 4 × 0.34 mm² |
| Cable Diameter | 4.3 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU, black transparent |
| Sealing Material | FKM / Viton |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Power LED | Green |
| Switching Status | 2 × yellow LEDs |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Weight | 412.8 g |
