IFM EVC128 is a 1.5 m M12 connection cable designed for sensor and actuator applications in industrial automation. It combines a straight M12 plug with an angled M12 socket and includes integrated LED status indication. The PUR cable provides flexibility and durability for industrial installations. IP65, IP67, IP68 and IP69K protection supports demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

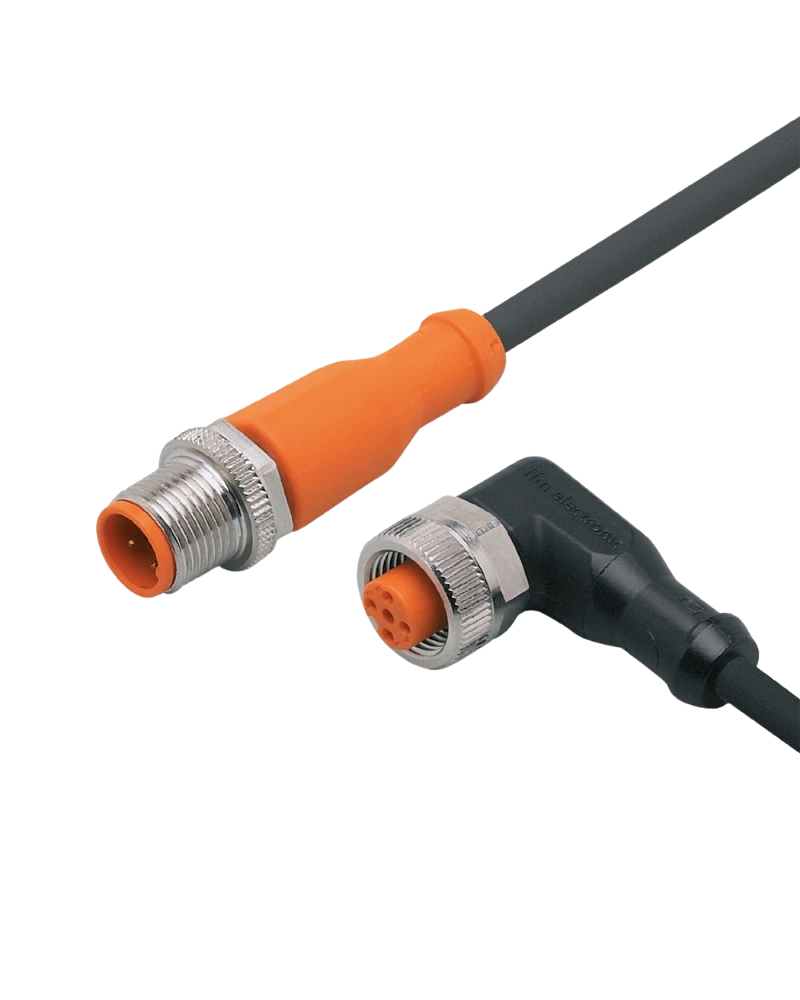

The EVC128 combines a straight M12 plug with an angled M12 socket for convenient cable routing. This configuration is useful where installation space is limited. The 1.5 m cable provides practical connection flexibility. The A-coded M12 connectors support compatible automation devices.
Integrated green and yellow LEDs provide convenient operating and switching-status indication. This helps technicians identify operating conditions without additional diagnostic equipment. The PNP electrical design is suitable for compatible sensor and actuator systems. Gold-plated contacts support reliable signal transmission.
The cable operates from 10 to 36 V DC and supports a 4 A current rating. PUR cable construction and FKM sealing provide reliable protection. IP65, IP67, IP68 and IP69K protection supports harsh industrial environments. The cable is also suitable for drag-chain applications.
M12 straight plug to angled socket
1.5 m cable length
3 × 0.34 mm² PUR cable
DC PNP electrical design
10–36 V DC operating voltage
4 A current rating
Green power LED
Yellow switching-status LED
Gold-plated contacts
Silicone-free and halogen-free
IP65 / IP67 / IP68 / IP69K
Drag-chain suitable
PNP sensor connections
Industrial automation
Machine tools
Factory automation
Sensor monitoring
Actuator systems
Control and diagnostic applications
| Specification | Details |
|---|---|
| Product Model | EVC128 |
| Part Number | VDOAH032MSS01,5H03STGH030MSS |
| Product Type | Patchcord / Connection Cable |
| Manufacturer | IFM |
| Connector 1 | M12 Plug |
| Connector 1 Design | Straight |
| Connector 2 | M12 Socket |
| Connector 2 Design | Angled |
| Coding | A-coded |
| Number of Contacts | 3 / 5 |
| Cable Length | 1.5 m |
| Cable Material | PUR |
| Cable Construction | 3 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Ambient Temperature | -25°C to +90°C |
| Protection Rating | IP65 / IP67 / IP68 / IP69K |
| Housing Material | TPU |
| Sealing Material | FKM / Viton |
| Nut Material | Brass, nickel-plated |
| Contact Material | Gold-plated |
| Cable Colour | Black |
| Power LED | Green |
| Switching Status LED | Yellow |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Dimensions | 15.5 × 15.5 × 49.5 mm |
| Weight | Approx. 73 g |
