EVC095 is an industrial M12 connecting cable with an angled connector designed for dependable sensor and actuator connections. Its 2 m halogen-free PUR cable, gold-plated contacts and high protection rating make it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
EVC095 provides a reliable connection solution for industrial sensors, actuators and automation equipment. Its angled connector design is useful where installation space is restricted.
Connection Design

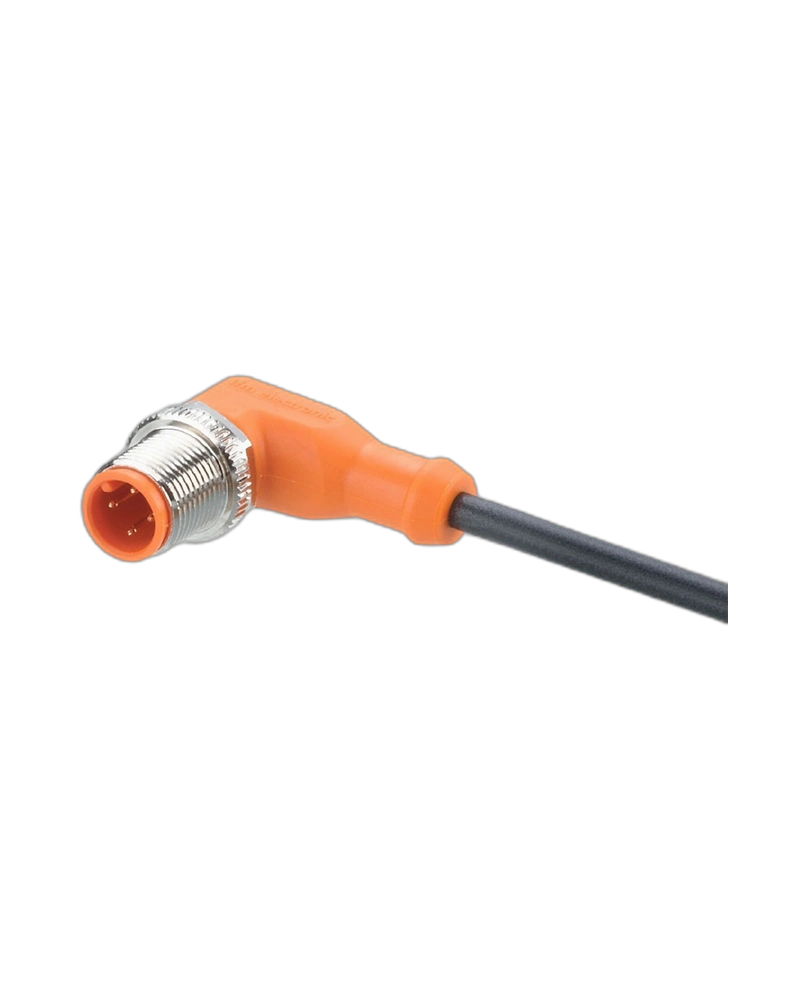

The cable features an angled M12 connector with gold-plated contacts, an orange TPU housing and nickel-plated brass nut. The locking system provides secure mechanical connection.
Cable Construction
EVC095 uses a 2 m black PUR cable with five 0.34 mm² conductors. The cable is halogen-free and designed for flexible industrial installation.
Application Performance
With IP65, IP67, IP68 and IP69K protection and drag-chain suitability, EVC095 is well suited for factory automation, machine tools and moving machinery.
Key Features
Angled M12 connector
5 gold-plated contacts
2 m PUR cable
Halogen-free cable
Silicone-free construction
IP65/IP67/IP68/IP69K protection
TPU orange connector body
Nickel-plated brass nut
Drag-chain suitable
More than 5 million bending cycles
Applications
Factory automation
Industrial sensors
Actuators
Machine tools
Moving machinery
Automation equipment
Control systems
Industrial electrical equipment
| Specification | Details |
|---|---|
| Product Type | Connecting cable with plug |
| Model | EVC095 |
| Connector | M12, angled |
| Cable Length | 2 m |
| Cable Material | PUR |
| Conductors | 5 × 0.34 mm² |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 4 A |
| Protection Rating | IP65, IP67, IP68, IP69K |
