EVC093 is an industrial M12 connection cable with an angled connector for reliable sensor and actuator connections. Its 2 m halogen-free PUR cable and robust construction provide dependable performance in automation machinery and demanding industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Introduction
EVC093 is designed to provide secure and reliable electrical connectivity for industrial automation equipment. Its angled connector configuration is useful where installation space is limited.
Connection Design

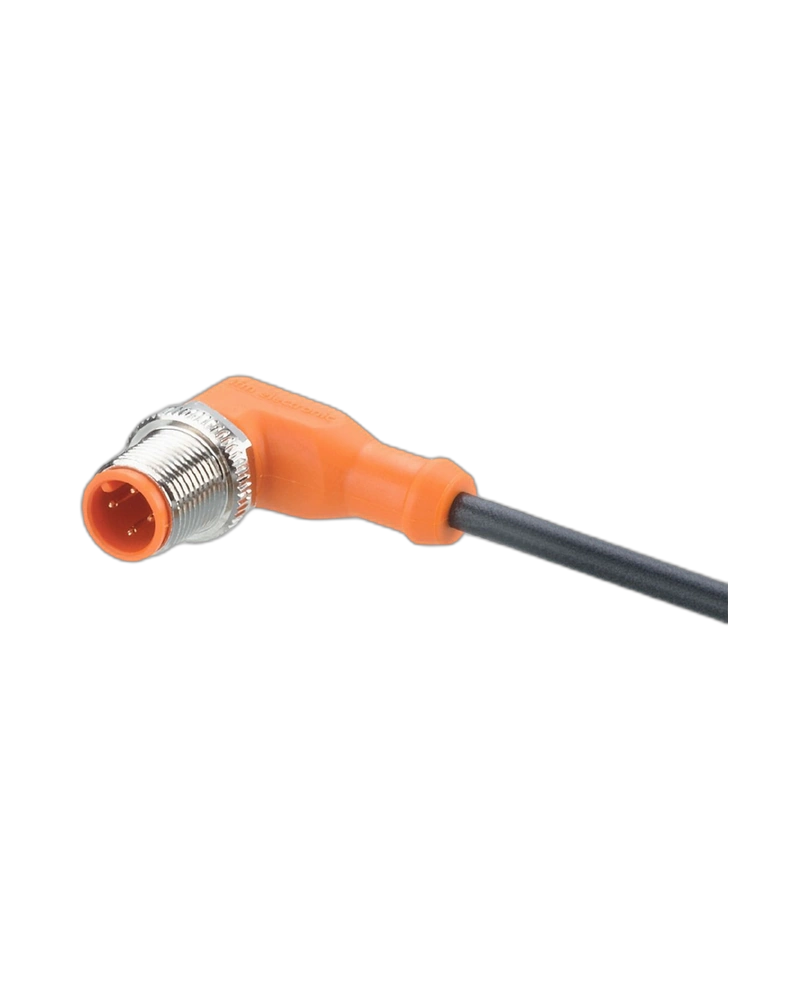

The cable features an angled M12 connector with gold-plated contacts, a TPU housing and nickel-plated brass locking nut. This design provides a secure and durable connection.
Cable Construction
EVC093 uses a 2 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and designed for industrial installation requirements.
Application Performance
EVC093 is suitable for sensors, actuators, machine tools, factory automation and moving cable applications. It supports high mechanical durability with more than 5 million bending cycles.
Key Features
Angled M12 connector
2 m PUR cable
Gold-plated contacts
Halogen-free cable
Silicone-free construction
IP65/IP67/IP68/IP69K protection
Brass nickel-plated nut
Drag-chain suitable
High bending-cycle capability
Industrial automation compatible
Applications
Industrial automation
Factory automation
Industrial sensors
Actuators
Machine tools
Control systems
Moving machinery
Industrial electrical equipment
| Specification | Details |
|---|---|
| Product Type | Connecting cable with plug |
| Model | EVC093 |
| Connector | M12, angled |
| Cable Length | 2 m |
| Cable Material | PUR |
| Wire Size | 3 × 0.34 mm² |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Rating | IP65, IP67, IP68, IP69K |
