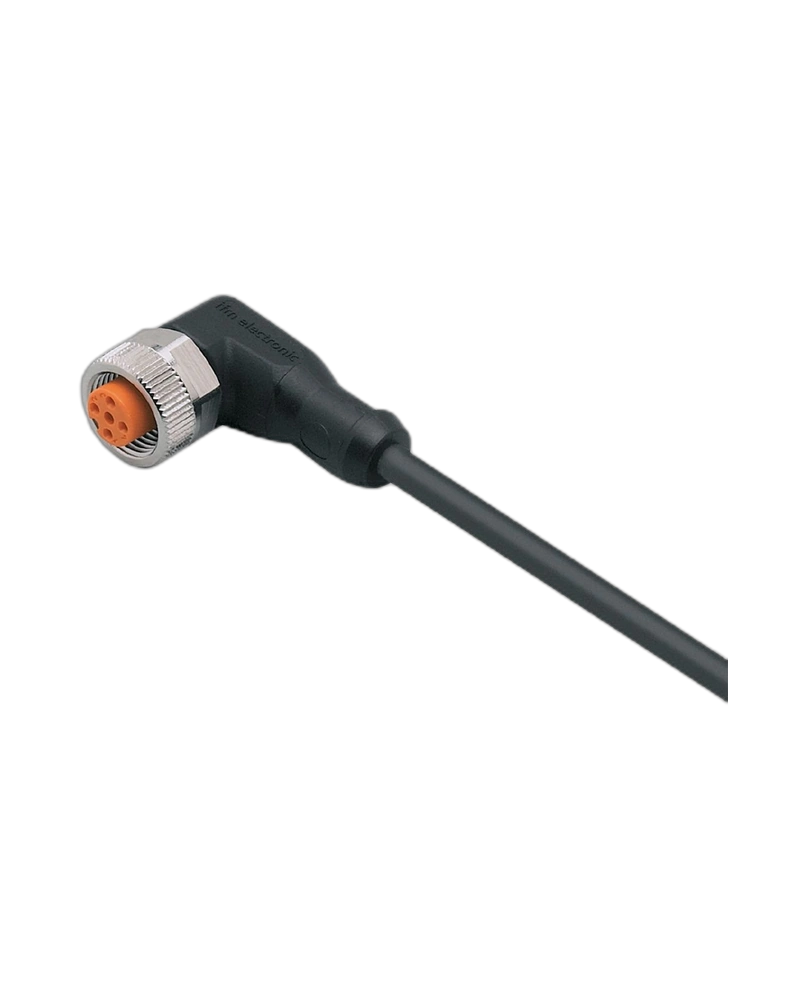

EVC091 is a 25 m industrial connecting cable with an angled M12 socket and integrated status indication. It is designed for reliable sensor connectivity and provides visual operating and output status through LEDs. The PUR cable offers flexibility, while gold-plated contacts and high IP protection support reliable operation. It is suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC091 provides visual status indication through two yellow output LEDs and one green power LED. This allows operators to identify operating and output conditions quickly. The indicators are useful where visibility is required around machinery. They can simplify troubleshooting during commissioning and maintenance.
The angled socket provides convenient cable routing around industrial sensors. Four contacts provide electrical connectivity for compatible equipment. Gold-plated contacts support reliable signal transmission. The secure locking system maintains connection stability.
The 25 m cable provides long-distance connectivity for large machines and production systems. It is suitable for distributed sensor installations. PUR construction provides flexibility and mechanical durability. The long cable length helps reduce additional cable extensions.
EVC091 is suitable for drag-chain applications with a minimum bending radius of 10 times the cable diameter. It supports up to 3.3 m/s travel speed under specified conditions and more than 5 million bending cycles. IP65/IP67/IP68/IP69K protection supports demanding industrial environments.
25 m cable length
Angled M12 socket
4-pole connection
Integrated LED indication
2 yellow output LEDs
1 green power LED
Gold-plated contacts
PUR cable
Halogen-free
Oil resistant
Coolant resistant
Drag-chain suitable
High IP protection
Industrial sensors
Machine tools
Factory automation
Production lines
Sensor diagnostics
Conveyor systems
Dynamic machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH043MSS0025H04 |
| Cable Length | 25 m |
| Connector | M12 Socket |
| Design | Angled |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU, black transparent |
| Locking | Brass, nickel-plated |
| Sealing | FKM / Viton |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Output Indicators | 2 × yellow LED |
| Power Indicator | 1 × green LED |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
