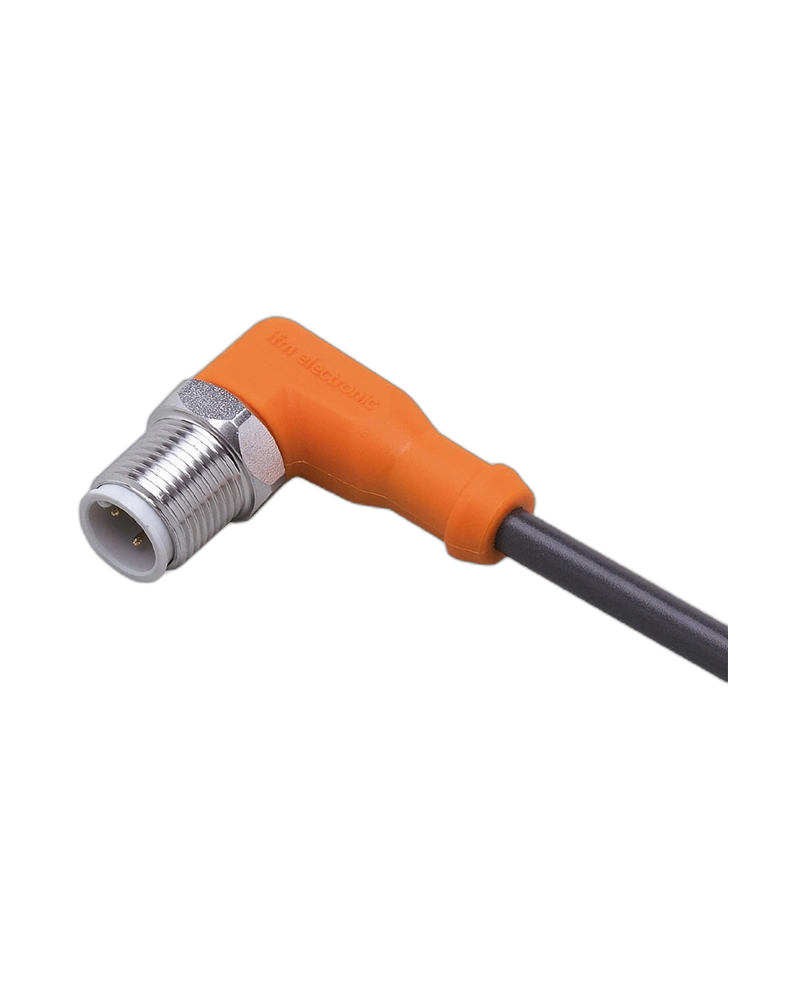

EVC08A is a 2 m angled connecting cable with a 4-pole M12 connection designed for specified hazardous-area applications. It features ATEX and IECEx approvals for Group II Category 3G/2D applications. The PUR cable and gold-plated contacts provide reliable industrial connectivity. It is intended for use where explosion-protection requirements apply.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC08A is specifically designed for applications requiring certified explosion-protection connection technology. Its ATEX marking supports specified gas and dust hazardous-area applications. IECEx approval provides additional international certification. Installation must follow the applicable hazardous-area requirements.
The angled connector helps route the cable efficiently in machine and process installations. Four contacts provide electrical connectivity for compatible equipment. Gold-plated contacts support reliable signal transmission. The stainless-steel locking nut provides secure mechanical coupling.
The 2 m cable uses a black, halogen-free PUR construction. PUR provides flexibility and resistance to industrial mechanical stress. The 4 × 0.34 mm² cable configuration supports common sensor connections. The compact length is suitable for nearby hazardous-area equipment.
The product carries BVS 08 ATEX E 109 U and IECEx BVS 08.0041 U approvals. Markings include II 3G Ex nA IIC Gc and II 2D Ex tb IIIC Db. Protection is IP67, with IP68/IP69K applicable outside hazardous areas according to the technical data.
2 m cable length
Angled M12 connection
4-pole connection
ATEX approved
IECEx approved
Group II application
Category 3G/2D
Gold-plated contacts
PUR cable
Halogen-free
Stainless-steel locking nut
IP67 protection
Hazardous-area automation
Chemical processing
Process automation
Oil and gas equipment
Potentially explosive environments
Industrial sensors
Process machinery
Explosion-protected installations
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTAH040VAT0002H04/3G/2D |
| Cable Length | 2 m |
| Connector Design | Angled |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU, orange |
| Locking Nut | Stainless steel 316L / 1.4404 |
| Operating Voltage | 60 V AC / 60 V DC |
| Current Rating | 2 A |
| Ambient Temperature | -20°C to +60°C |
| Protection | IP67; IP68/IP69K outside hazardous areas |
| ATEX | BVS 08 ATEX E 109 U |
| IECEx | BVS 08.0041 U |
| Gas Marking | II 3G Ex nA IIC Gc |
| Dust Marking | II 2D Ex tb IIIC Db IP65/IP67 |
| Protection Class | II |
| Pack Quantity | 1 pc |
