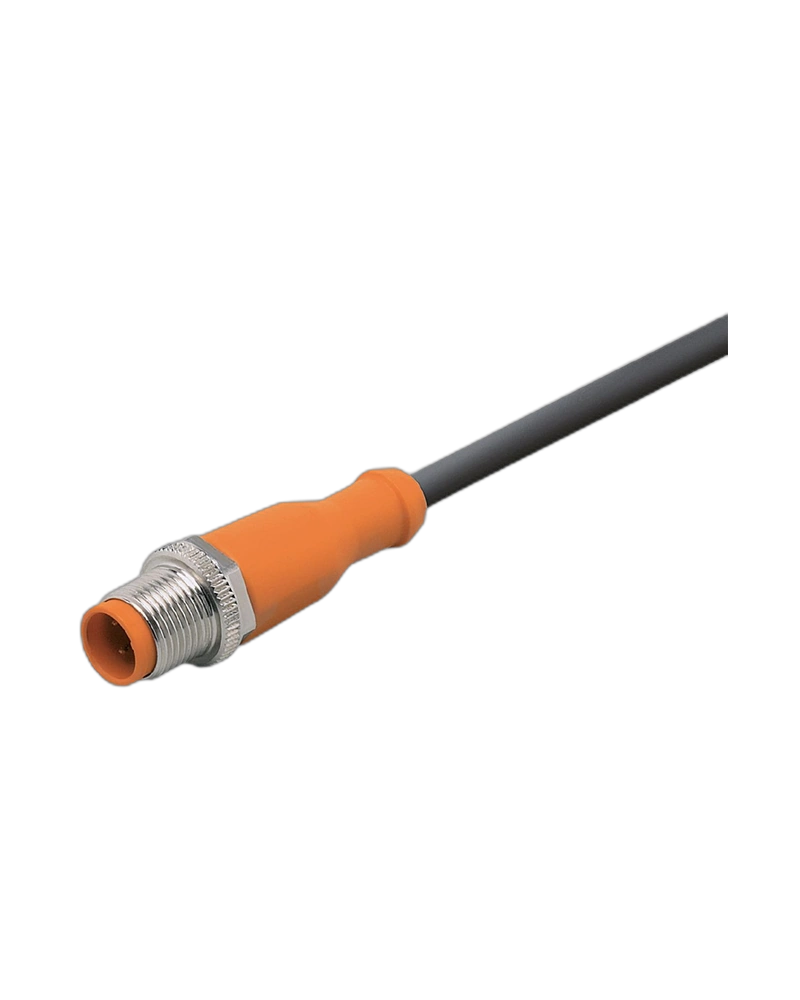

EVC078 is a 10 m industrial connecting cable with a straight 4-pole M12 plug. It is designed for reliable connectivity between automation components, sensors and control equipment. The PUR cable provides flexibility, durability and resistance to demanding industrial conditions. Its gold-plated contacts and secure M12 connection support stable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC078 features a straight M12 plug designed for dependable industrial connectivity. The 4-pole configuration supports common sensor and automation connections. Gold-plated contacts help maintain reliable electrical transmission. The secure locking mechanism helps prevent accidental disconnection.
The 10 m cable provides excellent routing flexibility across larger machines. It allows sensors and control equipment to be positioned farther apart. PUR construction supports flexible cable management. The extended length can reduce the requirement for additional cable extensions.
The cable is manufactured using durable PUR material. It is halogen-free and suitable for demanding industrial installations. The connector housing provides mechanical strength. The cable design supports vibration and shock resistance.
EVC078 is suitable for industrial applications involving oils, coolants and lubricants. High IP protection helps protect the connection against moisture and contaminants. The coupling mechanism provides stable mechanical connection. It is suitable for factory automation and machine tools.
10 m cable length
Straight M12 plug
4-pole connection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
Vibration resistant
Shock resistant
Drag-chain suitable
High IP protection
Factory automation
Industrial sensors
Machine tools
Production machinery
Control equipment
Actuator systems
Conveyor systems
Industrial automation panels
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS0010H04 |
| Cable Length | 10 m |
| Connector | M12 Plug |
| Connector Design | Straight |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | Up to 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Temperature | -25°C to +90°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Protection Class | II |
| Oil Resistant | Yes |
| Coolant Resistant | Yes |
| Drag Chain | Yes |
| Pack Quantity | 1 pc |
