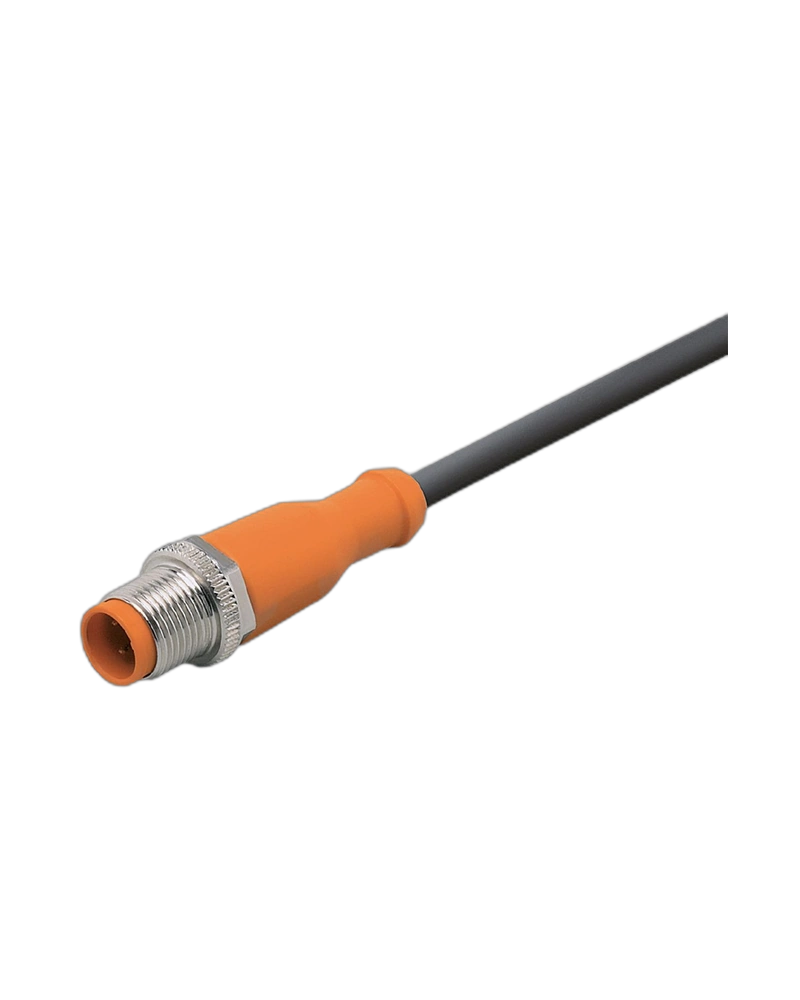

EVC077 is a 5 m industrial connecting cable with a straight 4-pole M12 plug. It provides reliable electrical connectivity for factory automation and industrial machinery. The PUR cable is halogen-free, silicone-free and fitted with gold-plated contacts. High protection and drag-chain suitability make it suitable for demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC077 provides a secure 4-pole M12 connection for compatible industrial devices. Gold-plated contacts support reliable electrical transmission. The straight connector design provides conventional machine connectivity. Secure locking helps maintain the connection.
The 5 m cable provides greater routing flexibility across machinery. It is suitable for connections between sensors, actuators and control equipment. PUR construction allows flexible routing. The extended length can reduce the need for cable extensions.
EVC077 supports 250 V AC / 300 V DC with a 4 A current rating. This provides flexibility for industrial electrical connections. The product is designed for industrial automation applications. Application-specific electrical requirements should always be checked before installation.
EVC077 is suitable for drag-chain applications. The cable supports more than 5 million bending cycles under specified conditions. IP65/IP67/IP68/IP69K protection supports demanding industrial environments. Vibration and shock resistance support reliable machine operation.
5 m cable length
Straight M12 plug
4-pole connection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
250 V AC
300 V DC
4 A current rating
IP65/IP67/IP68/IP69K
Drag-chain suitable
Vibration resistant
Shock resistant
Oil/coolant application suitable
Industrial automation
Machine tools
Factory automation
Production machinery
Control equipment
Actuator systems
Conveyor systems
Dynamic machine applications
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS0005H04 |
| Cable Length | 5 m |
| Connector | M12 Plug |
| Design | Straight |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Operating Voltage | 250 V AC / 300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| cULus Temperature | Up to +75°C |
| Protection | IP65/IP67/IP68/IP69K |
| Silicone Free | Yes |
| Halogen Free | Yes |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
