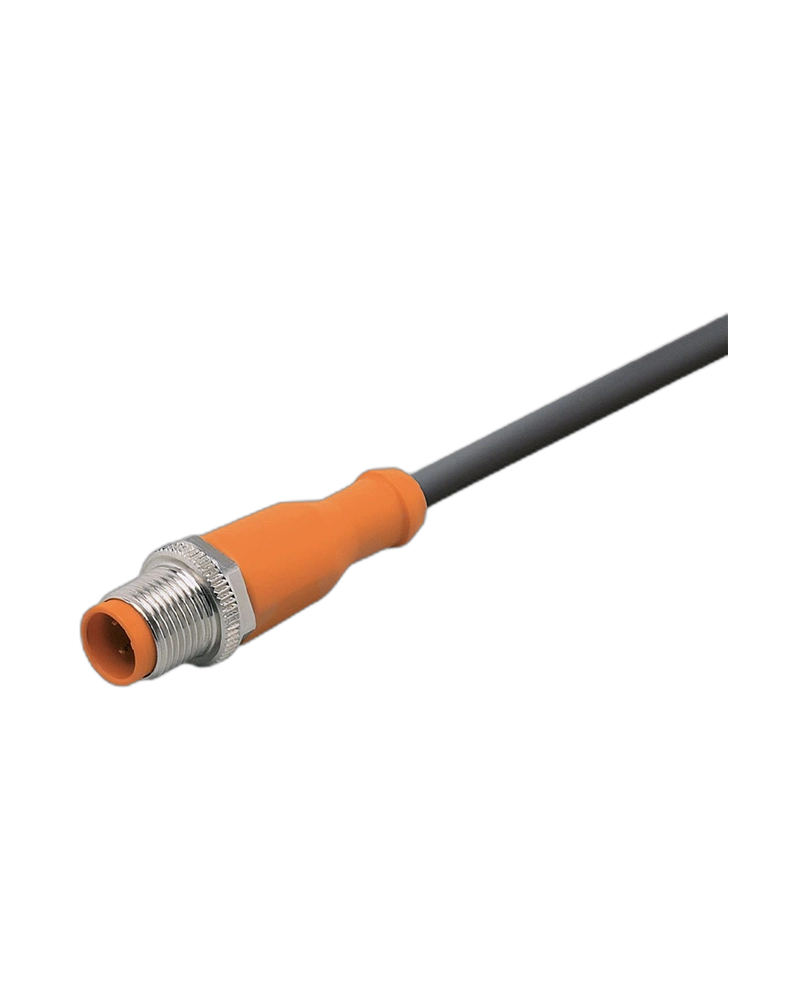

EVC076 is a 2 m industrial connecting cable with a straight 4-pole M12 plug. It is designed for reliable connections in factory automation and industrial machinery. The PUR, halogen-free cable provides flexibility and durability. Gold-plated contacts, high protection and drag-chain suitability support demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC076 provides a reliable 4-pole M12 plug connection for compatible automation equipment. Gold-plated contacts support dependable electrical transmission. The straight connector design suits conventional installations. Secure locking maintains connection stability.
The 2 m cable provides practical routing between sensors, actuators and control components. PUR construction supports flexible cable installation. The length is suitable for medium-distance machine connections. It helps keep wiring organized.
EVC076 supports up to 250 V AC / 300 V DC and a 4 A total current rating. This makes it suitable for a wider range of industrial connection requirements. The cable is designed for industrial automation applications. Proper application-specific electrical limits should always be observed.
The cable is suitable for drag-chain applications. It supports bending cycles above 5 million under specified conditions. Vibration and shock resistance support moving machinery. IP65/IP67/IP68/IP69K protection supports demanding environments.
2 m cable length
Straight M12 plug
4-pole configuration
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
250 V AC capability
300 V DC capability
4 A current rating
Oil/coolant application suitability
IP65/IP67/IP68/IP69K
Drag-chain suitable
Vibration resistant
Shock resistant
Factory automation
Machine tools
Industrial machinery
Control equipment
Actuator systems
Sensor connections
Conveyor equipment
Dynamic machine applications
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Plug |
| Model | ASTGH040MSS0002H04 |
| Cable Length | 2 m |
| Connector | M12 Plug |
| Design | Straight |
| Contacts | 4 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| cULus Temperature | Up to +75°C |
| Protection | IP65/IP67/IP68/IP69K |
| Silicone Free | Yes |
| Halogen Free | Yes |
| Drag Chain | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc |
