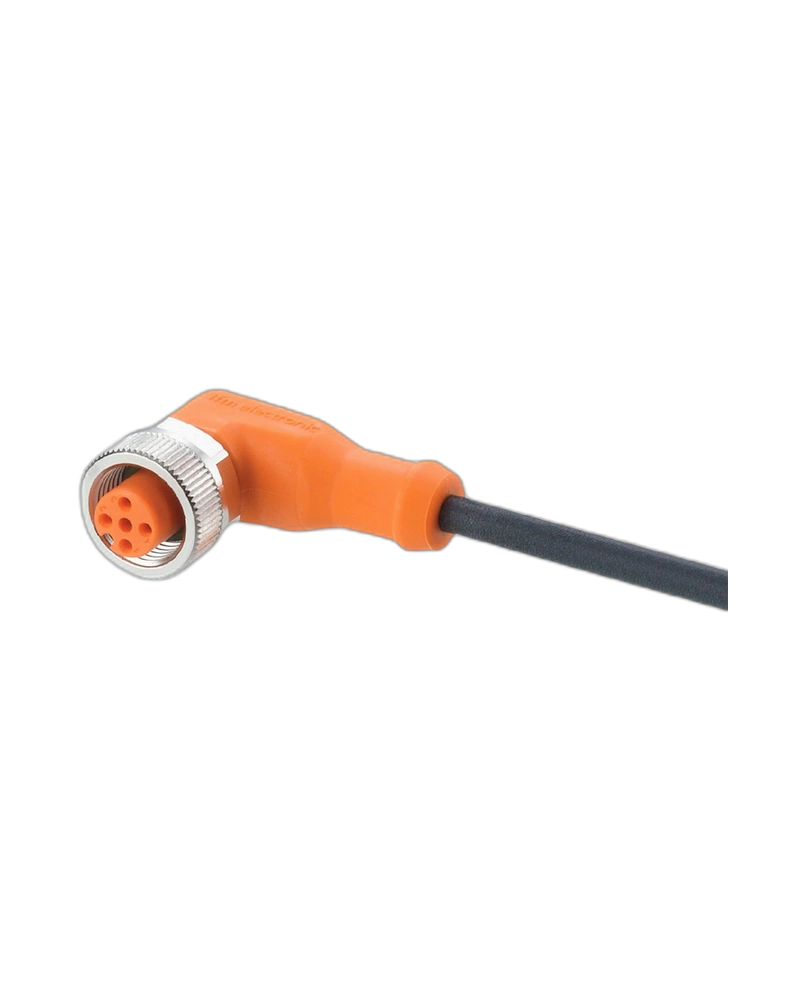

EVC075 is a 10 m industrial connecting cable with an angled 5-pole M12 socket. It is designed for extended sensor connections across larger machines and automation systems. The PUR cable provides flexibility, durability and resistance to industrial conditions. Its angled connector and long cable length provide practical routing flexibility.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC075 provides a reliable 5-pole M12 connection for compatible industrial sensors. The angled socket supports cable routing in restricted machine spaces. Gold-plated contacts help provide stable electrical transmission. Secure locking supports reliable operation.
The 10 m cable provides long-distance connectivity within industrial installations. It is suitable for larger machinery and distributed sensor systems. PUR construction supports flexible routing. It can reduce the need for additional extensions.
The cable is constructed from PUR and is halogen-free. Silicone-free construction supports industrial installation requirements. TPU housing and nickel-plated brass locking provide mechanical durability. The connection system is designed for vibration and shock resistance.
EVC075 is designed for oil and coolant exposure. High IP protection supports demanding machine environments. Reliable sealing helps protect the connection. It is suitable for factory automation and machine tools.
10 m cable length
Angled M12 socket
5-pole connection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
High IP protection
Vibration resistant
Shock resistant
Drag-chain suitable
Extended routing
Large machinery
Machine tools
Factory automation
Industrial sensors
Production systems
Conveyor equipment
Actuator systems
Distributed automation
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH050MSS0010H05 |
| Cable Length | 10 m |
| Connector | M12 Socket |
| Design | Angled |
| Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65/IP67/IP68/IP69K |
| Oil Resistant | Yes |
| Coolant Resistant | Yes |
| Drag Chain | Yes |
| Pack Quantity | 1 pc |
