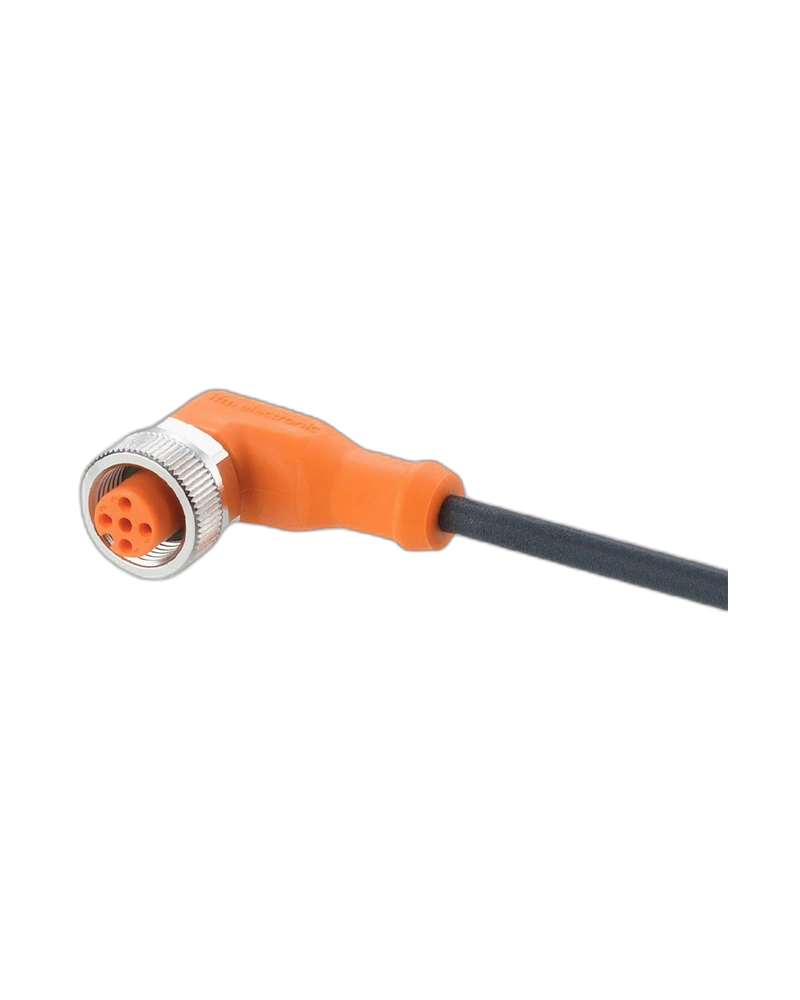

EVC074 is a 5 m industrial connecting cable with an angled 5-pole M12 socket. It is designed for reliable sensor connectivity in factory automation and machine-tool applications. The PUR, halogen-free cable provides flexibility and mechanical durability. High IP protection, oil resistance and coolant resistance make it suitable for harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC074 provides a secure 5-pole M12 connection for compatible industrial sensors. The angled design simplifies cable routing around machinery. Gold-plated contacts provide reliable electrical transmission. Secure locking supports stable operation.
The 5 m cable provides extended routing capability for larger machine installations. It allows sensors to be positioned farther from control equipment. PUR construction supports flexible cable management. The long cable length reduces extension requirements.
The PUR cable is halogen-free and silicone-free. TPU housing provides mechanical durability. Brass, nickel-plated locking supports secure coupling. The connector design resists vibration and shock.
EVC074 is resistant to oils and coolants. IP65/IP67/IP68/IP69K protection supports harsh industrial environments. FKM sealing provides dependable environmental protection. It is suitable for machine tools and factory automation.
5 m cable length
Angled M12 socket
5-pole connection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65/IP67/IP68/IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
Extended routing
Machine tools
Factory automation
Industrial sensors
Production machinery
Coolant systems
Conveyor equipment
Actuator systems
Industrial automation
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH050MSS0005H05 |
| Cable Length | 5 m |
| Connector | M12 Socket |
| Design | Angled |
| Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| cULus Current | 3 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65/IP67/IP68/IP69K |
| Oil Resistant | Yes |
| Coolant Resistant | Yes |
| Drag Chain | Yes |
| Weight | Approx. 188.6 g |
| Pack Quantity | 1 pc |
