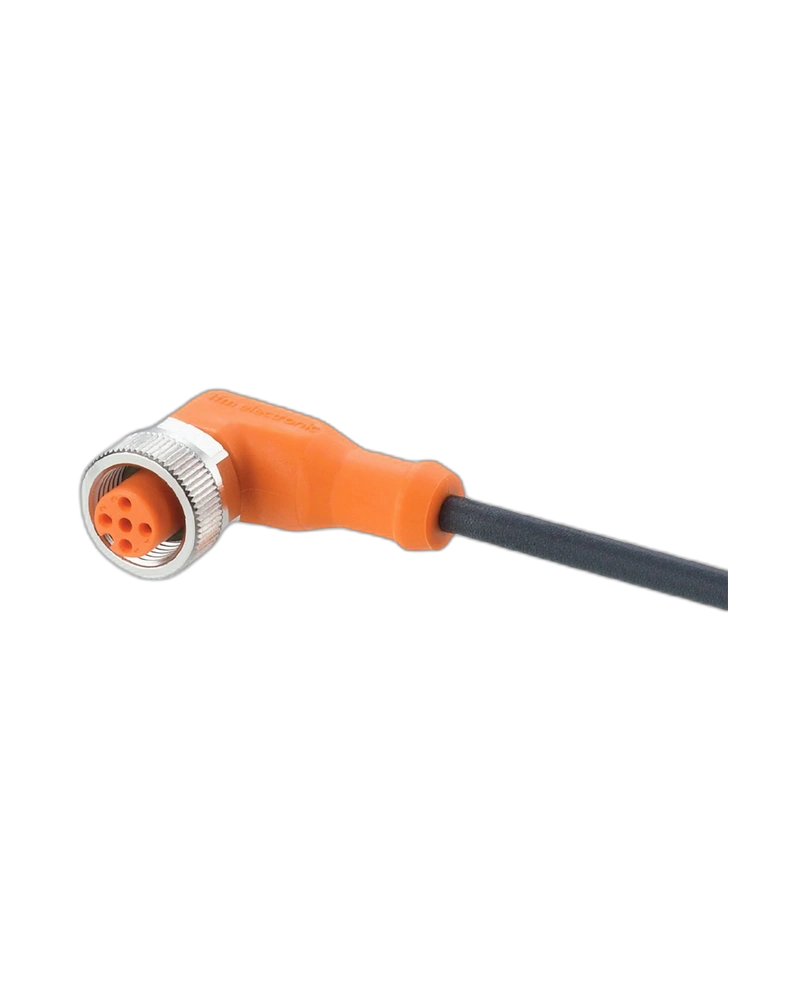

EVC073 is a 2 m industrial connecting cable with an angled 5-pole M12 socket. Its angled design supports convenient routing around sensors and machine components. The PUR cable is halogen-free and provides reliable industrial performance. Gold-plated contacts, high protection and environmental resistance support demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The angled M12 socket provides practical cable routing where space is restricted. It helps position the cable away from machine surfaces. Gold-plated contacts support reliable signal transmission. Secure locking maintains connection integrity.
The 2 m cable provides useful routing distance within industrial machinery. It is suitable for medium-distance sensor connections. PUR construction provides flexibility. The cable helps maintain organized wiring.
The cable is manufactured from PUR and is halogen-free. The TPU housing provides mechanical durability. Brass, nickel-plated locking provides secure coupling. The construction supports vibration and shock resistance.
EVC073 is designed for industrial automation, machine tools, coolants and lubricants. It provides IP65/IP67/IP68/IP69K protection. Oil and coolant resistance supports reliable operation. Drag-chain suitability allows dynamic applications.
2 m cable length
Angled M12 socket
5-pole connection
PUR cable
Halogen-free
Silicone-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65/IP67/IP68/IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
Industrial sensors
Machine tools
Factory automation
Coolant environments
Production machinery
Conveyor systems
Actuator systems
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH050MSS0002H05 |
| Cable Length | 2 m |
| Connector | M12 Socket |
| Design | Angled |
| Contacts | 5 |
| Coding | A |
| Cable Material | PUR |
| Cable Size | 5 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Operating Voltage | 60 V AC/DC |
| Current Rating | 4 A |
| Protection Class | II |
| Temperature | -25°C to +90°C |
| Protection | IP65/IP67/IP68/IP69K |
| Oil Resistant | Yes |
| Coolant Resistant | Yes |
| Drag Chain | Yes |
| Pack Quantity | 1 pc |
