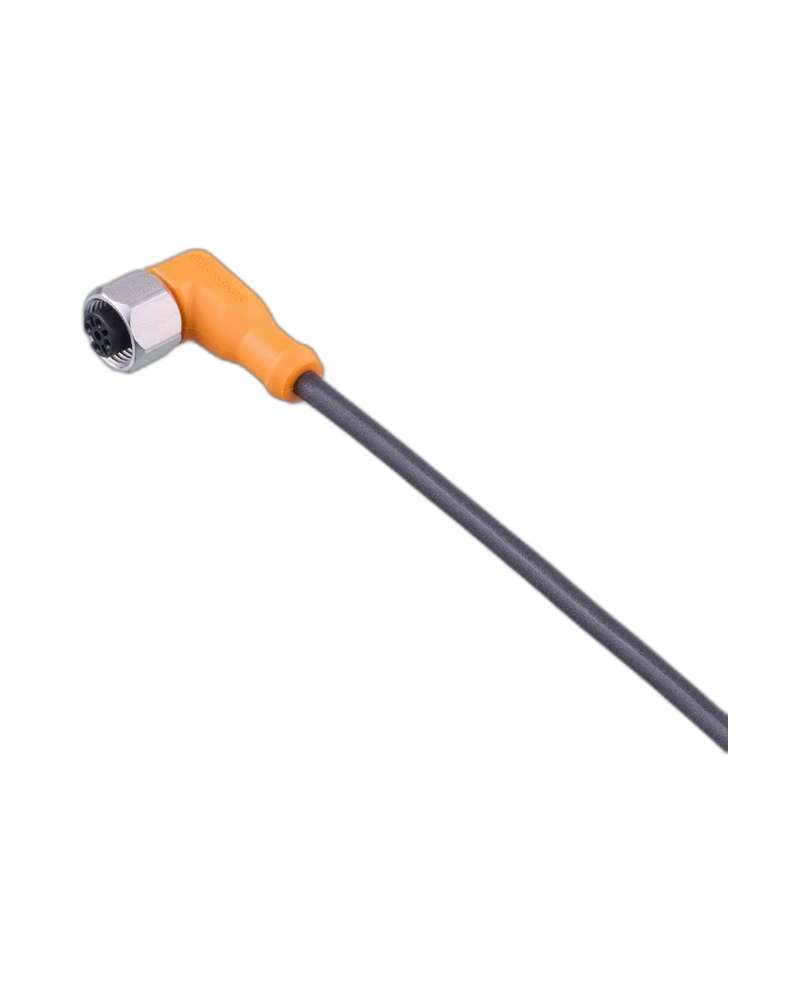

EVC06A is a hazardous-area connecting cable with an angled M12 socket designed for industrial sensors. The 10 m PUR cable provides extended connection distance for demanding installations. Its stainless-steel construction and certified hazardous-area design support reliable operation in explosive atmospheres. It is intended for specified ATEX and IECEx applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC06A is designed for connection technology used in potentially explosive environments. Its certified construction supports specified hazardous-area applications. The M12 socket provides secure sensor connectivity. It is suitable for industrial installations requiring certified connection components.
The angled M12 design simplifies cable routing around sensors and machinery. The connector uses gold-plated contacts for dependable electrical transmission. The stainless-steel locking hardware provides robust mechanical coupling. Reliable sealing helps protect the connection.
The 10 m PUR cable provides extended routing flexibility. It is suitable where sensors and control equipment are positioned far apart. The cable is black and designed for industrial environments. Its flexible construction supports practical installation.
The EVC06A family is intended for hazardous-area applications and is listed with ATEX/IECEx-related construction. The connector design is intended to meet the applicable requirements when correctly installed. Correct tightening and installation procedures should be followed. Always verify the exact certification marking against the supplied product before final publication.
10 m cable length
Angled M12 socket
4-pole connection
PUR cable
Halogen-free
Gold-plated contacts
Stainless-steel construction
Hazardous-area suitable
ATEX application
IECEx application
Oil resistant
Coolant resistant
IP67 hazardous-area protection
Extended routing capability
Hazardous-area automation
Explosive atmospheres
Industrial sensors
Chemical processing
Process automation
Oil and gas equipment
Paint and coating environments
Factory automation
| Specification | Details |
|---|---|
| Product Type | Connecting Cable with Socket |
| Model | ADOAH040VAT0010H04/3G/2D |
| Cable Length | 10 m |
| Connector | M12 Socket |
| Connector Design | Angled |
| Contacts | 4 |
| Cable Material | PUR |
| Cable Size | 4 × 0.34 mm² |
| Cable Colour | Black |
| Contact Finish | Gold-plated |
| Locking Material | Stainless Steel 316L |
| Sealing | FKM |
| Operating Voltage | <60 V AC/DC |
| Temperature | -20°C to +60°C |
| Hazardous Area Protection | IP67 |
| Protection Outside Hazardous Area | IP68/IP69K family-dependent |
| ATEX | Yes |
| IECEx | Yes |
| Application | Hazardous / Explosive Areas |
| Pack Quantity | 1 pc |
