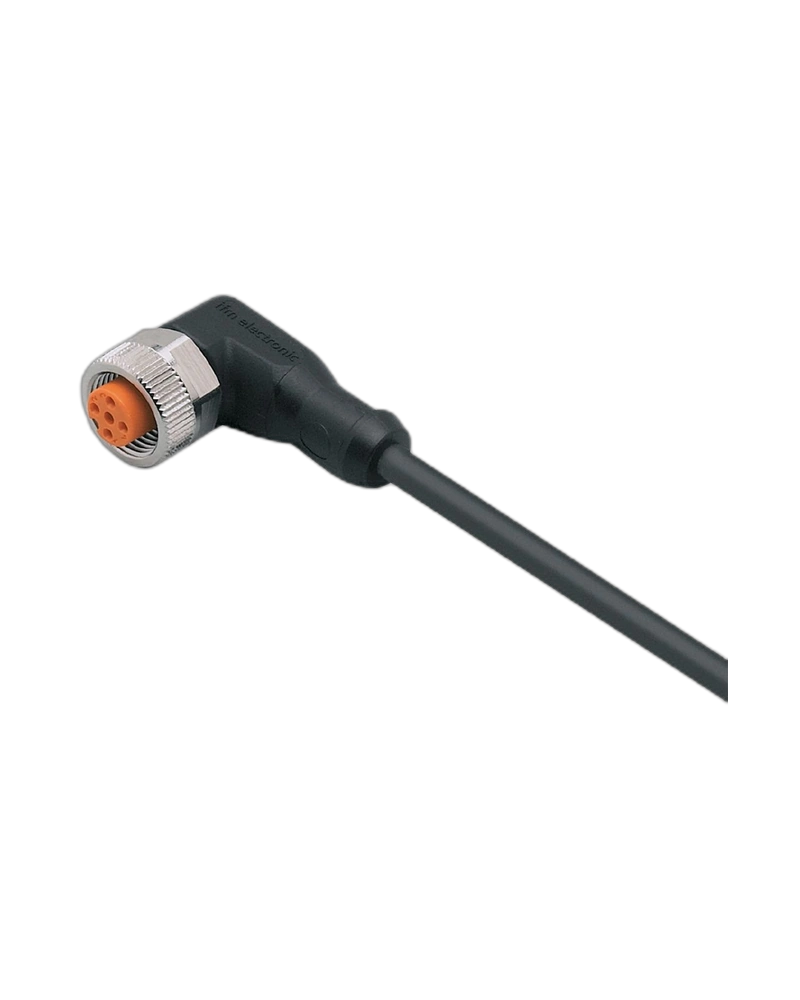

EVC05E is a PNP/NPN inverter module designed to convert PNP sensor signals into NPN-compatible signals. It is intended for sensors with normally open functionality and provides reliable signal conversion in automation systems. The 15 m PUR cable offers extended installation flexibility. Its robust industrial construction provides resistance to oils, coolants, vibration and shock.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC05E converts PNP output signals into NPN-compatible signals for control systems. It allows compatible sensors to be integrated into systems requiring a different switching logic. This reduces the need to replace existing sensors. It provides a practical interface between different automation architectures.
The module is supplied with a 15 m PUR cable. The extended cable length provides flexibility when connecting sensors to control equipment. The cable is halogen-free and designed for industrial environments. Its flexible construction supports practical machine routing.
The module is designed for demanding industrial applications. It provides resistance to oils and coolants commonly encountered around machinery. High IP protection helps protect the connection from environmental contamination. Vibration and shock resistance supports reliable machine operation.
EVC05E is suitable for sensors with normally open function. It can be used where PNP sensor signals need to interface with NPN input systems. Gold-plated contacts support dependable electrical transmission. Drag-chain suitability provides additional installation flexibility.
PNP-to-NPN signal conversion
15 m cable
Suitable for normally open sensors
Operating voltage below 24 V DC
Maximum total current load 0.1 A
Low switching voltage drop
PUR cable
Halogen-free
Gold-plated contacts
Oil resistant
Coolant resistant
IP65 / IP67 / IP68 / IP69K
Vibration resistant
Shock resistant
Drag-chain suitable
PNP sensor integration
NPN control systems
Industrial automation
Sensor signal conversion
Machine control systems
Factory automation
PLC input adaptation
Machine tools
Production equipment
| Specification | Details |
|---|---|
| Product Type | PNP/NPN Inverter Module |
| Product Code | EVC05E |
| Function | PNP to NPN Signal Conversion |
| Cable Length | 15 m |
| Sensor Type | Normally Open |
| Operating Voltage | <24 V DC |
| Operating Voltage Tolerance | 10% |
| Protection Class | II |
| Maximum Total Current Load | 0.1 A |
| Switching Output Voltage Drop | Max. 2 V DC |
| Cable Material | PUR |
| Cable Type | Halogen-free |
| Cable Diameter | 4.3 mm |
| Cable Size | 4 × 0.34 mm² |
| Connector | M12, angled |
| Connector Coding | A |
| Contacts | Gold-plated |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Ambient Temperature | -25°C to +60°C |
| Moving Temperature | -25°C to +60°C |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Drag Chain Suitability | Yes |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Compatible with Paint | Yes |
| Weight | Approx. 426.3 g |
| Application | Signal Conversion / Automation |
| Pack Quantity | 1 pc |
