EVC05A is a 5 m industrial connecting cable with an angled M12 socket, designed for sensors with M12 connectors. It is suitable for hazardous-area applications and is compatible with paint environments. The PUR, halogen-free cable provides reliable industrial connectivity with gold-plated contacts. ATEX and IECEx approvals make it suitable for specified explosive atmospheres.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC05A is specifically designed for applications in potentially explosive environments. Its ATEX and IECEx approvals support use within the specified hazardous-area classifications. The M12 socket provides a secure connection for compatible sensors. This makes it suitable for industrial installations requiring certified connection technology.

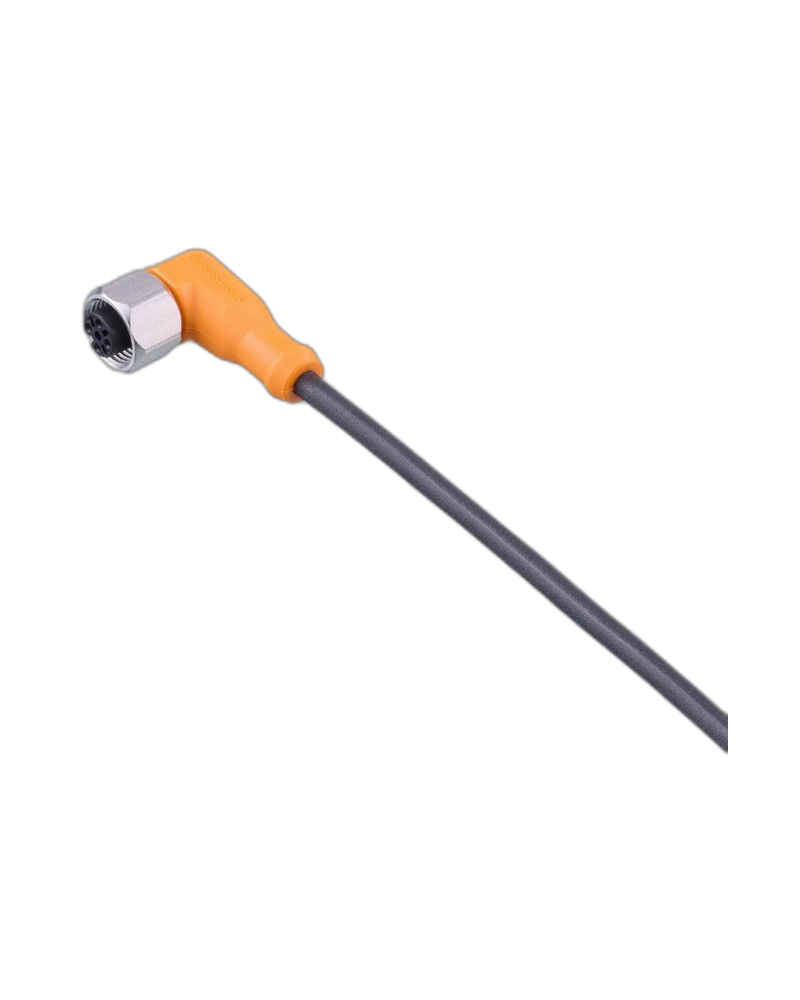

The angled M12 socket design helps simplify cable routing around sensors and machine components. The connector uses four gold-plated contacts for reliable electrical transmission. Stainless-steel locking hardware provides secure mechanical coupling. The FKM sealing system helps maintain environmental protection.
The 5 m cable provides extended installation flexibility between sensors and control equipment. The PUR cable is black, halogen-free and has a 4 × 0.34 mm² construction. Its robust design supports industrial installation conditions. The cable is suitable for demanding machine and process environments.
EVC05A is designed to withstand oils and coolants commonly encountered in industrial environments. It is also specified as compatible with paint applications. IP67 protection applies in hazardous areas, while IP68/IP69K protection is available when used outside hazardous areas. This provides flexibility across different industrial environments.
5 m cable length
Angled M12 socket
4 gold-plated contacts
PUR cable construction
4 × 0.34 mm² cable
Halogen-free cable
Compatible with paint
Oil resistant
Coolant resistant
IP67 protection
IP68/IP69K outside hazardous areas
Stainless-steel 316L locking
FKM sealing
ATEX approved
IECEx approved
Hazardous-area suitable
Compact angled connector design
Reliable industrial connectivity
Hazardous-area automation
Explosive atmospheres
Paint-shop equipment
Industrial sensors
Process automation
Chemical processing equipment
Oil and gas environments
Factory automation
Machine monitoring
Sensor connections
Industrial control systems
Potentially explosive dust environments
Potentially explosive gas environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Product Name | Connecting Cable with Socket |
| Product Code | EVC05A |
| Model / Part Number | ADOAH040VAT0005H04/3G/2D |
| Product Type | Connection Cable with Socket |
| Application | Hazardous / Explosive Areas |
| Cable Length | 5 m |
| Connector Type | M12 Socket |
| Connector Design | Angled |
| Number of Contacts | 4 |
| Contact Material | Gold-plated |
| Cable Material | PUR |
| Cable Construction | 4 × 0.34 mm² |
| Cable Diameter | 4.9 mm |
| Cable Colour | Black |
| Cable Type | Halogen-free |
| Electrical Design | AC/DC |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 2 A |
| Protection Class | II |
| Ambient Temperature | -20°C to +60°C |
| Protection in Hazardous Area | IP67 |
| Protection Outside Hazardous Area | IP68 / IP69K |
| Housing Material | TPU / Urethane, Orange |
| Locking Material | Stainless Steel 316L / 1.4404 |
| Sealing Material | FKM |
| Tightening Torque | 1.2–1.5 Nm |
| Compatible with Paint | Yes |
| Oil Resistant | Yes |
| Coolant Resistant | Yes |
| ATEX Approval | BVS 08 ATEX E 109 U |
| IECEx Approval | IECEx BVS 08.0041 U |
| ATEX Marking | II 3G Ex ec IIC Gc; II 2D Ex tb IIIC Db IP65/IP67 |
| Weight | Approx. 196.7 g |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Pack Quantity | 1 pc |
| Application Category | Automation and Controls |
| Sub Category | Accessories |
| Status | Published |
