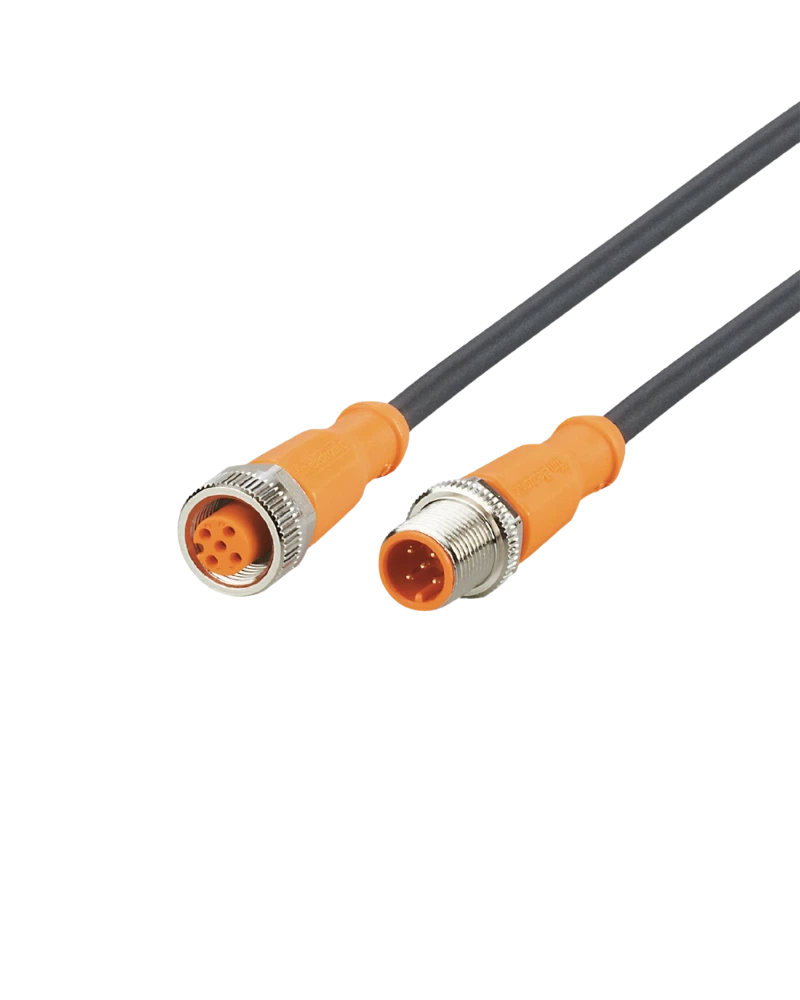

The IFM EVC059 is a 5 m industrial connection cable developed for reliable signal and power connections in automation systems. It features straight A-coded M12 connectors with gold-plated contacts for dependable connectivity. The black PUR cable provides excellent durability and resistance to oils, coolants, vibration and shock. Its high IP protection makes it suitable for harsh industrial operating conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC059 provides an extended 5 m connection solution for industrial sensors, actuators and automation devices. Its straight M12 connectors provide a secure and standardized interface for industrial equipment. Gold-plated contacts support reliable electrical transmission and long service life. The locking mechanism helps maintain secure connections under vibration and movement.
The 5 m black PUR cable provides additional installation flexibility where longer connection distances are required. Its halogen-free construction is suitable for demanding industrial environments. The cable offers resistance against oils and coolants used around machine tools and production equipment. PUR construction also supports durability in applications involving repeated movement.
The cable is designed with high protection against environmental contamination and moisture. IP65, IP67, IP68 and IP69K ratings support use in demanding industrial conditions. The mechanical end stop helps prevent O-ring damage during connector installation. Drag-chain suitability allows the cable to be used in selected moving machine applications.
5 m extended connection cable
Straight M12 A-coded connectors
Five gold-plated contacts
Black halogen-free PUR cable
Oil and coolant resistant
IP65/IP67/IP68/IP69K protection
Vibration and shock resistant
Suitable for drag-chain applications
Secure nickel-plated brass locking system
Reliable connection for industrial automation
Machine tools
Industrial automation systems
Factory production equipment
Sensor and actuator connectivity
Moving machinery
Automated assembly systems
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVC059 |
| Product Type | Connection Cable |
| Order Code | VDOGH050MSS0005H05STGH050MSS |
| Connector Type | M12 |
| Connector Style | Straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.6 mm |
| Wire Size | 5 × 0.34 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Class | II |
| Maximum Current Load | 4 A |
| UL Current Rating | 3 A |
| Ambient Temperature | -25 to +90 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | > 5 million |
| Maximum Travel Speed | 3.3 m/s |
| Pack Quantity | 1 |
