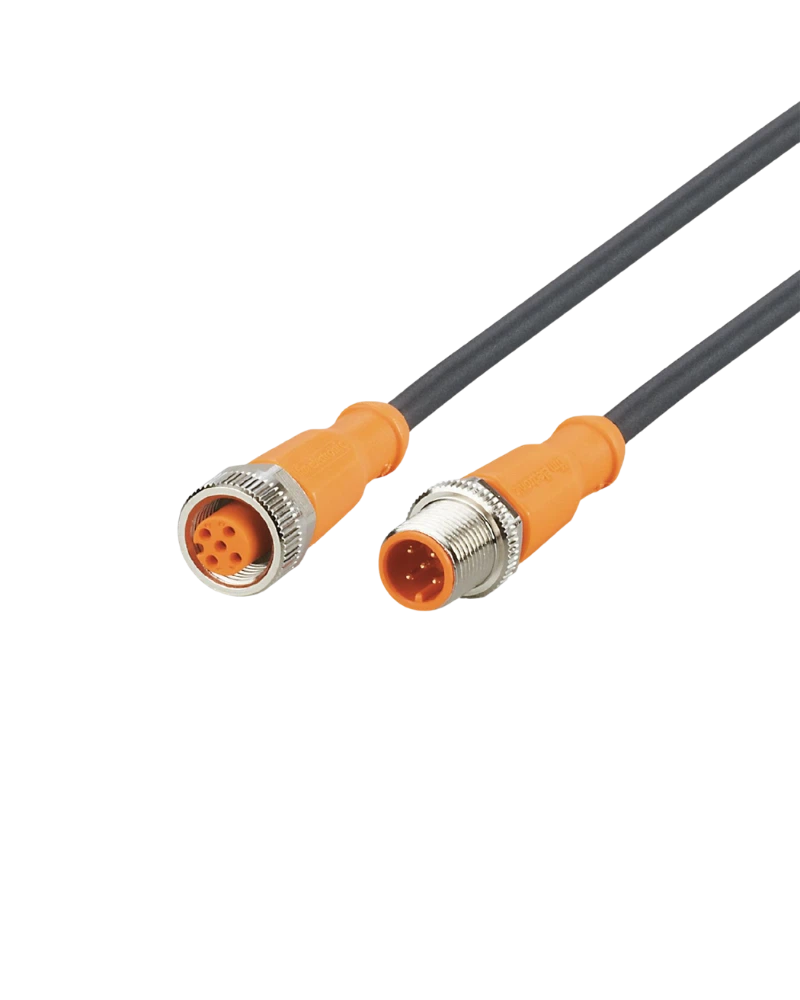

The IFM EVC058 is a durable industrial connection cable designed for reliable sensor and actuator connectivity. It uses straight A-coded M12 connectors with gold-plated contacts for dependable electrical performance. The 2 m PUR cable provides flexibility and resistance against oils, coolants and mechanical stress. Its high protection rating makes it suitable for demanding factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EVC058 provides a reliable connection solution for industrial automation and machine-tool applications. Its M12 connector design enables secure connection with compatible sensors, actuators and automation components. Gold-plated contacts help provide stable electrical transmission over repeated operating cycles. The locking mechanism supports a secure connection in machinery subject to vibration.
The 2 m cable is manufactured using black, halogen-free PUR material for demanding industrial environments. PUR construction provides good resistance against oils, coolants and mechanical wear. The cable is suitable for applications where cables may be exposed to movement and continuous machine operation. Its flexible construction supports practical installation around industrial equipment.
The EVC058 is designed for high environmental protection and reliable sealing. Its connector design provides resistance to vibration and shock during machine operation. The mechanical end stop helps protect the O-ring from excessive damage during installation. This makes the cable suitable for harsh factory environments and automated machinery.
2 m industrial connection cable
Straight A-coded M12 connectors
Five gold-plated contacts
Black halogen-free PUR cable
Resistant to oils and coolants
High protection against dust and moisture
Vibration and shock-resistant locking mechanism
Mechanical O-ring protection
Suitable for demanding industrial automation
Reliable long-term connection performance
Factory automation systems
Machine-tool equipment
Industrial sensors and actuators
Automation control systems
Moving machinery
Production and assembly lines
Oil and coolant exposed machinery
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVC058 |
| Product Type | Connection Cable |
| Order Code | VDOGH050MSS0002H05STGH050MSS |
| Connector Type | M12 |
| Connector Style | Straight |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Wire Construction | 5 × 0.34 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Class | II |
| Maximum Current Load | 4 A |
| UL Current Rating | 3 A |
| Ambient Temperature | -25 to +90 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Connector Body | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Drag Chain Suitability | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Pack Quantity | 1 |
