The IFM EVC057 is a robust connection cable designed for reliable industrial electrical connections. It features straight M12 connectors with gold-plated contacts for dependable signal transmission. The 1 m PUR cable is halogen-free and suitable for demanding automation environments. Its oil, coolant, vibration and shock resistance supports reliable long-term operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

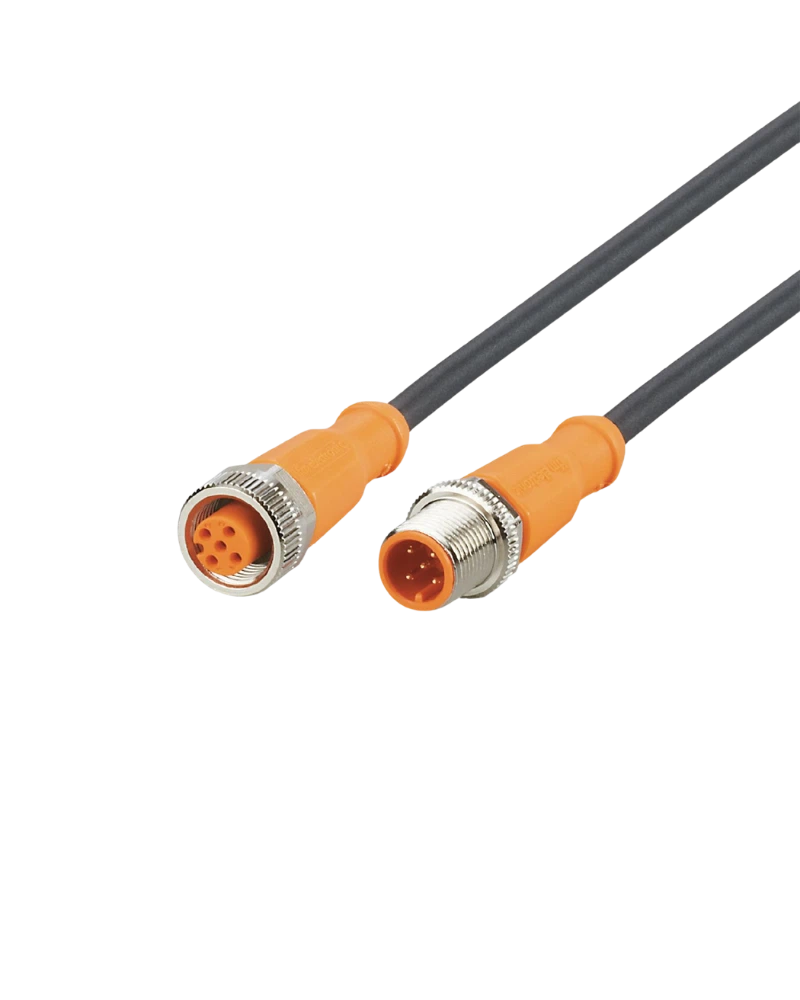

The IFM EVC057 provides a dependable connection between industrial sensors, actuators and automation components. It uses straight M12 connectors with A coding and five gold-plated contacts. The robust connector construction helps maintain stable electrical contact during continuous machine operation. It is well suited for factory automation and machine-tool applications.
The cable uses a black, halogen-free PUR jacket designed for demanding industrial environments. Its construction provides good resistance to oils and coolants commonly found around machinery. The TPU connector body and nickel-plated brass locking components provide additional mechanical durability. The cable is also suitable for applications involving vibration and shock.
The EVC057 provides IP65, IP67, IP68 and IP69K protection for reliable operation in harsh environments. Its mechanical end stop helps protect the O-ring from damage during connector tightening. The cable is suitable for drag-chain applications with a minimum flexible bending radius of 10 times the cable diameter. This makes it suitable for moving machinery and automated equipment.
Straight M12 connection with A-coded interface
Five gold-plated contacts for reliable electrical transmission
1 m black PUR cable construction
Halogen-free cable material
Resistant to oils and coolants
High IP65/IP67/IP68/IP69K protection
Vibration and shock-resistant connector design
Suitable for drag-chain applications
Mechanical end stop protects the O-ring
Reliable operation in industrial automation environments
Industrial automation systems
Machine tools and CNC equipment
Sensor and actuator connections
Factory automation machinery
Moving machine assemblies
Coolant and lubricant exposed environments
Control cabinet and field connection systems
| Specification | Details |
|---|---|
| Brand | IFM |
| Model | EVC057 |
| Product Type | Connection Cable |
| Order Code | VDOGH050MSS0001H05STGH050MSS |
| Connector Type | M12 |
| Connector Configuration | Straight connector / straight socket |
| Coding | A-coded |
| Number of Contacts | 5 |
| Contact Material | Gold-plated |
| Cable Length | 1 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | Approx. 4.6 mm |
| Wire Size | 5 × 0.34 mm² |
| Operating Voltage | < 60 V AC/DC |
| Protection Class | II |
| Maximum Current Load | 4 A |
| UL Current Rating | 3 A |
| Ambient Temperature | -25 to +90 °C |
| Protection Rating | IP65, IP67, IP68, IP69K |
| Connector Body | TPU, orange |
| Locking Nut | Brass, nickel-plated |
| Sealing Material | FKM |
| Drag Chain Suitable | Yes |
| Minimum Bending Radius | 10 × cable diameter |
| Bending Cycles | > 5 million |
| Travel Speed | Up to 3.3 m/s |
| Pack Quantity | 1 |
