EVC056 is a 0.6 m five-contact M12 connection cable designed for reliable industrial AC/DC connectivity. It uses straight M12 plug and socket interfaces for direct and compact machine wiring. The cable features five gold-plated contacts and a flexible PUR construction. Its high IP rating and mechanical durability support demanding automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC056 provides a dependable five-contact connection solution for compatible industrial automation devices. It supports less than 60 V AC/DC and a maximum current rating of 4 A. The straight-to-straight configuration provides simple and direct cable installation. Its industrial-grade materials support applications involving oils, coolants, vibration and shock.

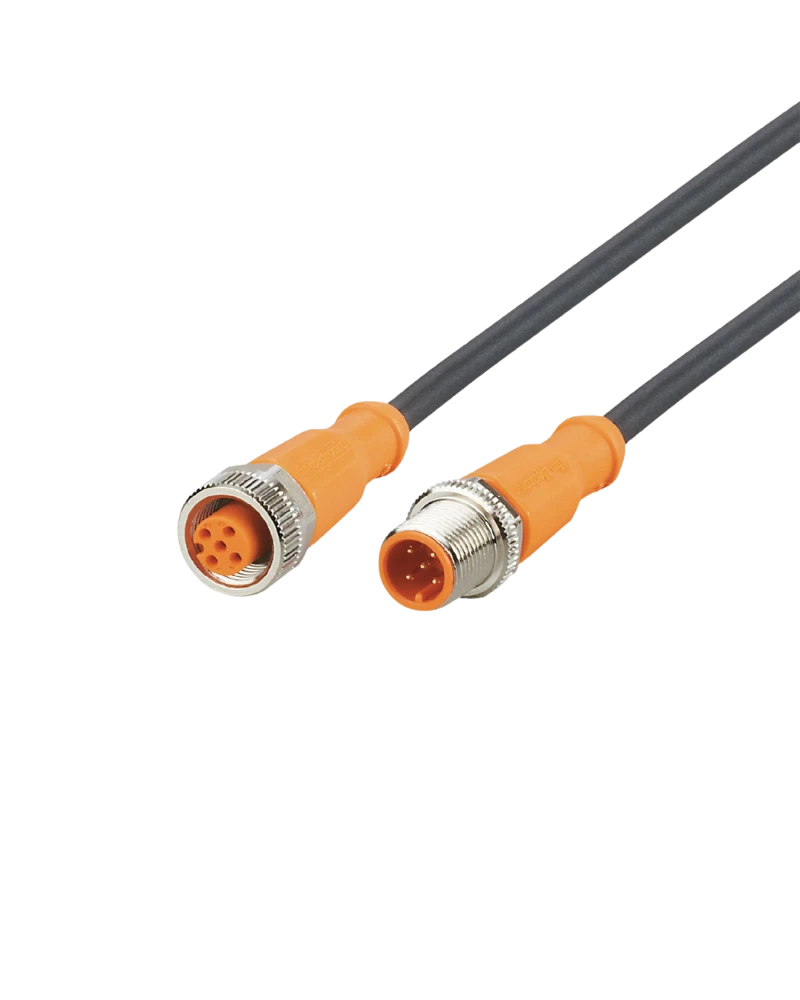

The cable uses straight M12 plug and straight M12 socket connections with five gold-plated contacts. TPU connector housings provide mechanical strength and electrical insulation. Nickel-plated brass locking components provide secure connection retention. The sealing arrangement provides protection against environmental contamination.
EVC056 incorporates a 0.6 m black PUR cable with five 0.34 mm² conductors and approximately 4.9 mm diameter. The cable is halogen-free and silicone-free. It is suitable for drag-chain applications and repeated movement. More than five million bending cycles are supported under specified conditions.
EVC056 supports less than 60 V AC/DC and up to 4 A current, with cULus current limited to 3 A. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection supports harsh industrial conditions. The cable is suitable for machine tools, factory automation and demanding production environments.
0.6 m cable
5-contact M12 interface
Straight M12 plug
Straight M12 socket
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Shock resistant
Industrial automation
Machine tools
Multi-signal sensor connections
Actuator connections
Factory machinery
Control systems
Automation equipment
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC056 |
| Model | VDOGH050MSS00,6H05STGH050MSS |
| Cable Length | 0.6 m |
| Electrical Design | AC/DC |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| cULus Current | 3 A |
| Plug | M12, straight |
| Socket | M12, straight |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Conductors | 5 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM/Viton |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Up to 75 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag Chain | Yes |
| Weight | Approx. 56.1 g |
