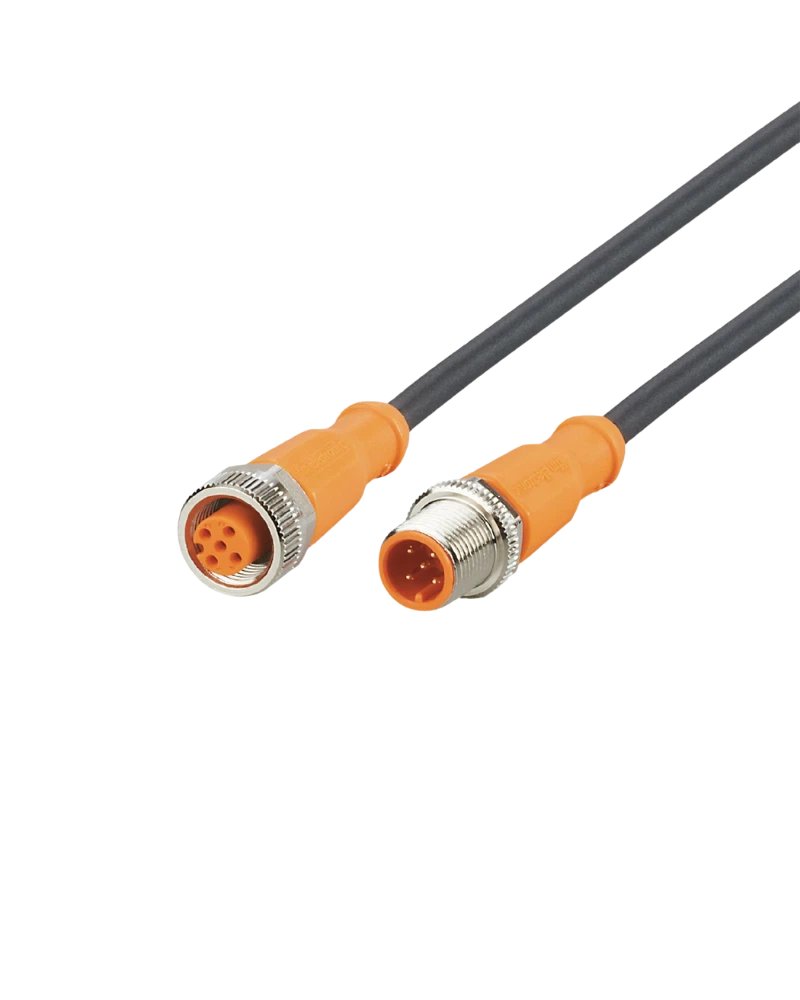

EVC055 is a compact 0.3 m five-contact M12 connection cable designed for industrial AC/DC applications. It uses straight M12 plug and socket connections for direct machine-level wiring. The cable features gold-plated contacts and a durable PUR jacket. Its high protection rating supports reliable operation in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC055 provides a compact connection solution for compatible industrial sensors, actuators and automation devices. It supports less than 60 V AC/DC with a maximum current rating of 4 A. The five-contact configuration provides additional connection capability compared with three-contact versions. Its robust construction is suitable for factory automation and machine-tool environments.
The cable uses straight M12 plug and straight M12 socket interfaces. Five gold-plated contacts provide reliable electrical transmission. TPU connector bodies and nickel-plated brass locking components provide mechanical stability. The connector system incorporates sealing designed for demanding industrial environments.
EVC055 uses a 0.3 m black PUR cable with five 0.34 mm² conductors. The cable is halogen-free and silicone-free. Its flexible construction supports industrial movement and drag-chain applications. The cable is designed to withstand repeated bending and mechanical stress.
EVC055 supports less than 60 V AC/DC and up to 4 A current. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection supports demanding industrial environments. Oil, coolant, vibration and shock resistance support reliable machine operation.
0.3 m compact length
5-contact M12 connection
Straight M12 plug
Straight M12 socket
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain suitable
Oil resistant
Coolant resistant
Vibration resistant
Industrial automation
Machine tools
Multi-signal connections
Sensor systems
Actuator systems
Control equipment
Factory machinery
Industrial production
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC055 |
| Model | VDOGH050MSS00,3H05STGH050MSS |
| Cable Length | 0.3 m |
| Electrical Design | AC/DC |
| Operating Voltage | <60 V AC/DC |
| Current Rating | 4 A |
| cULus Current | 3 A |
| Plug | M12, straight |
| Socket | M12, straight |
| Contacts | 5, gold-plated |
| Cable Material | PUR |
| Conductors | 5 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Up to 75 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag Chain | Yes |
