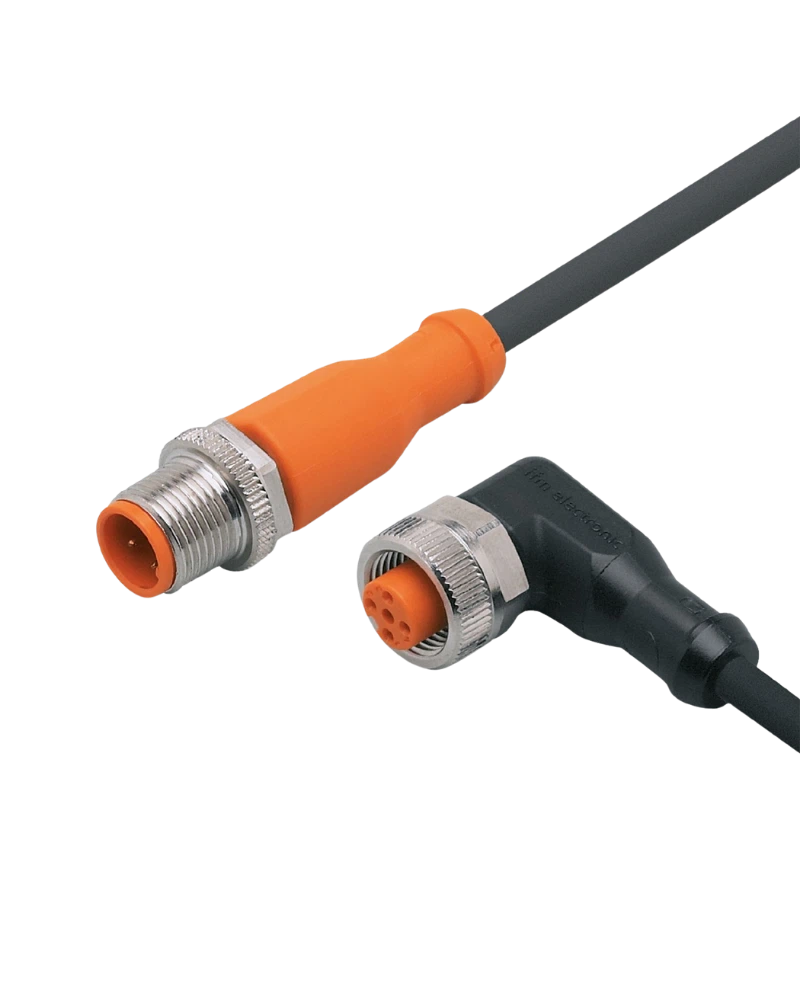

EVC054 is a 5 m DC PNP M12 connection cable designed for extended industrial sensor and actuator connections. Its straight plug and angled socket provide flexible cable routing. The cable uses a durable PUR construction with gold-plated contacts. LEDs provide convenient visual indication of power and switching status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC054 provides a long-distance connection solution for industrial automation equipment. It supports 10–36 V DC operation and up to 4 A current. The angled socket helps route the cable efficiently around machine components. Its high IP protection and industrial-grade construction support demanding factory environments.
The product features a straight M12 plug and angled M12 socket with A coding. Three gold-plated contacts provide reliable electrical transmission. TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. FKM/Viton sealing protects the connection from environmental contamination.
EVC054 incorporates a 5 m black PUR cable with three 0.34 mm² conductors and approximately 4.9 mm diameter. The cable is halogen-free and silicone-free. It supports drag-chain applications and repeated bending. More than five million bending cycles are supported under specified conditions.
The cable supports 10–36 V DC and up to 4 A. Its operating temperature range is -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection supports harsh industrial conditions. Oil and coolant resistance makes it suitable for machine-tool applications.
5 m cable length
DC PNP operation
10–36 V DC
4 A current rating
Straight M12 plug
Angled M12 socket
3 gold-plated contacts
Yellow switching LED
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
Long-distance sensor connections
Factory automation
Machine tools
PNP sensor systems
Actuator connections
Industrial control
Production machinery
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC054 |
| Model | VDOAH032MSS0005H03STGH030MSS |
| Cable Length | 5 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM/Viton |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Status LED | Yellow |
| Power LED | Green |
| Bending Cycles | >5 million |
| Drag Chain | Yes |
