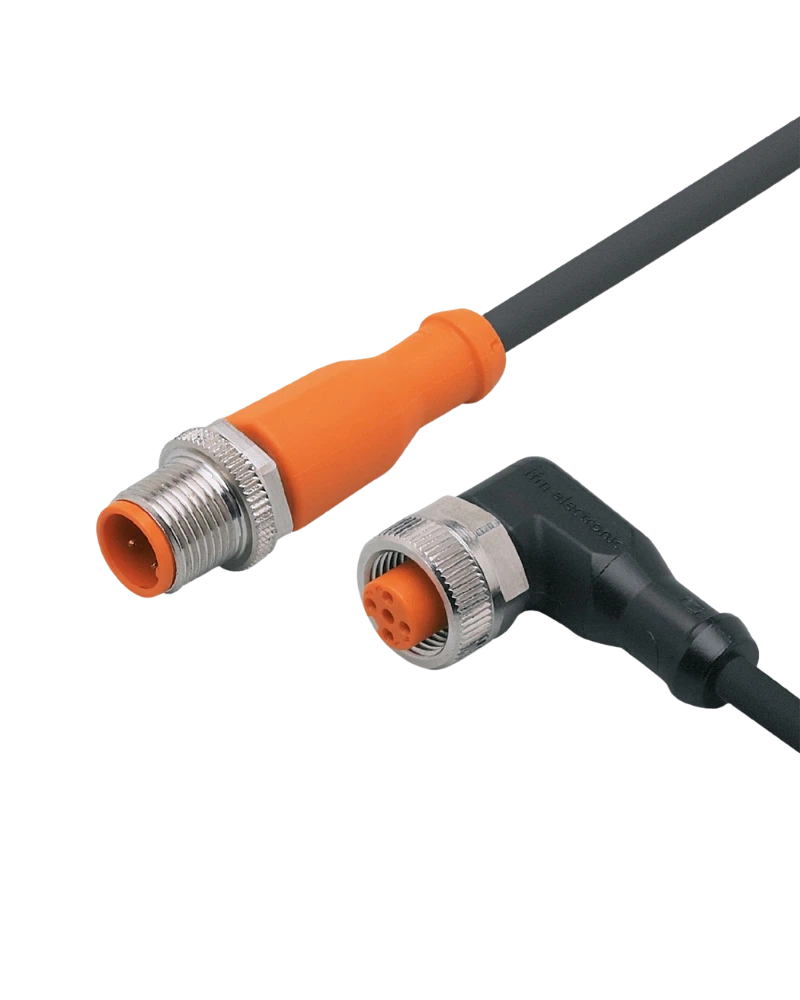

EVC052 is a 1 m DC PNP M12 connection cable designed for reliable industrial automation connections. Its straight plug and angled socket configuration provides convenient routing around machine components. The cable incorporates gold-plated contacts and a flexible PUR jacket. Integrated LEDs provide clear operating-status feedback.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC052 supports 10–36 V DC operation and a maximum current rating of 4 A. It is suitable for connecting compatible PNP sensors and actuators in industrial machinery. The angled socket helps simplify wiring where installation space is restricted. Its robust construction is designed for demanding factory environments.
The product uses a straight M12 plug and angled M12 socket with A coding. Three gold-plated contacts provide stable signal transmission. TPU connector bodies and nickel-plated brass locking components provide mechanical strength. Yellow switching and green power LEDs support convenient visual monitoring.
EVC052 uses a 1 m black PUR cable with three 0.34 mm² conductors and approximately 4.3 mm diameter. The cable is halogen-free and designed for industrial movement. Its drag-chain compatibility supports repeated mechanical operation. The cable construction provides long-term flexibility and durability.
The cable is designed for 10–36 V DC PNP systems with a 4 A current rating. It supports an operating temperature range of -25 to +90 °C. IP65/IP67/IP68/IP69K protection provides strong environmental resistance. Its construction is suitable for oils, coolants, vibration and shock.
1 m cable
DC PNP electrical design
10–36 V DC
4 A current rating
Straight M12 plug
Angled M12 socket
3 gold-plated contacts
Yellow status LED
Green power LED
PUR construction
Halogen-free
IP69K protection
PNP sensor wiring
Factory automation
Machine tools
Actuator connections
Industrial controls
Machine automation
Production lines
Sensor monitoring
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC052 |
| Model | VDOAH032MSS0001H03STGH030MSS |
| Cable Length | 1 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Status LED | Yellow |
| Power LED | Green |
| Drag Chain | Yes |
