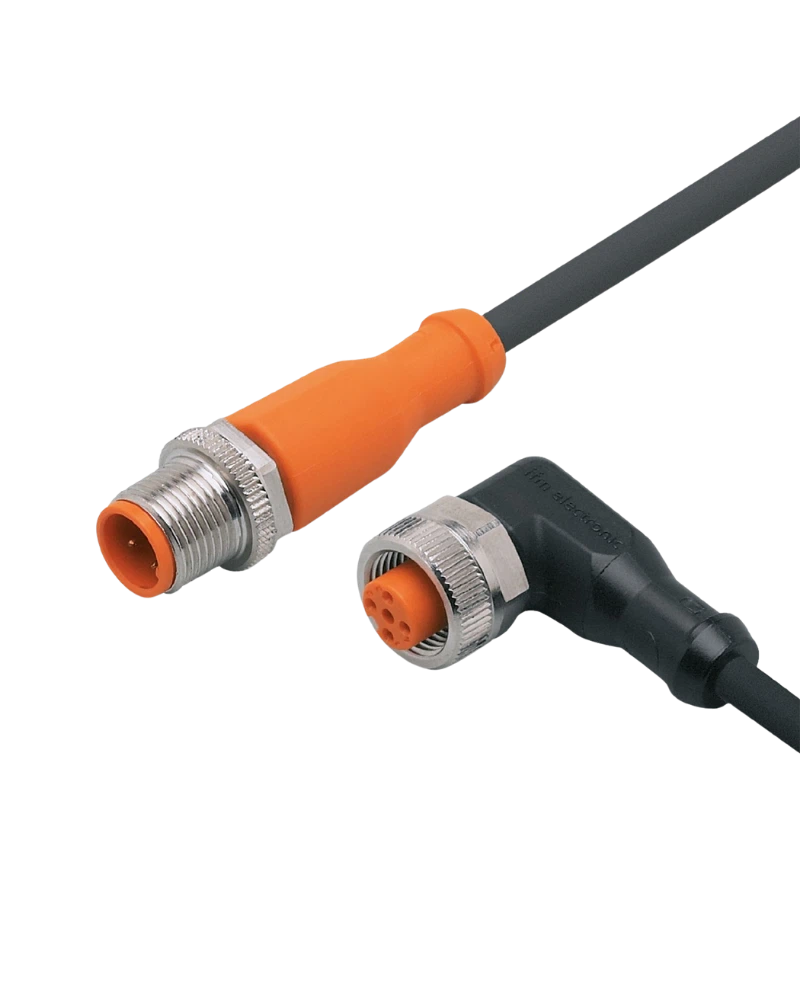

EVC051 is a 0.6 m DC PNP M12 connection cable designed for industrial sensor and actuator connections. It uses a straight plug and angled socket configuration for flexible installation. The cable features gold-plated contacts and a durable PUR jacket. Integrated LEDs provide clear power and switching-status indication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC051 provides reliable 10–36 V DC connectivity for industrial automation equipment. Its 4 A current rating supports common sensor and actuator applications. The angled socket allows easier cable routing around machinery. Its high IP protection and robust construction support harsh factory environments.
The cable uses an A-coded straight M12 plug and angled M12 socket. Three gold-plated contacts ensure dependable electrical transmission. TPU housings and nickel-plated brass locking components provide secure coupling. Yellow switching and green power LEDs enable quick visual diagnostics.
EVC051 incorporates a 0.6 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and silicone-free. Drag-chain suitability allows use in moving machinery. More than five million bending cycles are supported under specified conditions.
The cable operates from 10–36 V DC and supports up to 4 A. Its ambient operating range is -25 to +90 °C. IP65/IP67/IP68/IP69K protection provides resistance to demanding environmental conditions. The construction is resistant to oils, coolants, vibration and shock.
0.6 m cable
DC PNP operation
10–36 V DC
4 A current rating
Straight M12 plug
Angled M12 socket
Gold-plated contacts
Yellow status LED
Green power LED
PUR cable
IP69K protection
Drag-chain suitable
Oil resistant
PNP sensors
Industrial automation
Machine tools
Actuators
Factory machinery
Sensor diagnostics
Control systems
Production equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC051 |
| Model | VDOAH032MSS00,6H03STGH030MSS |
| Cable Length | 0.6 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM/Viton |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Status LED | Yellow |
| Power LED | Green |
| Drag Chain | Yes |
