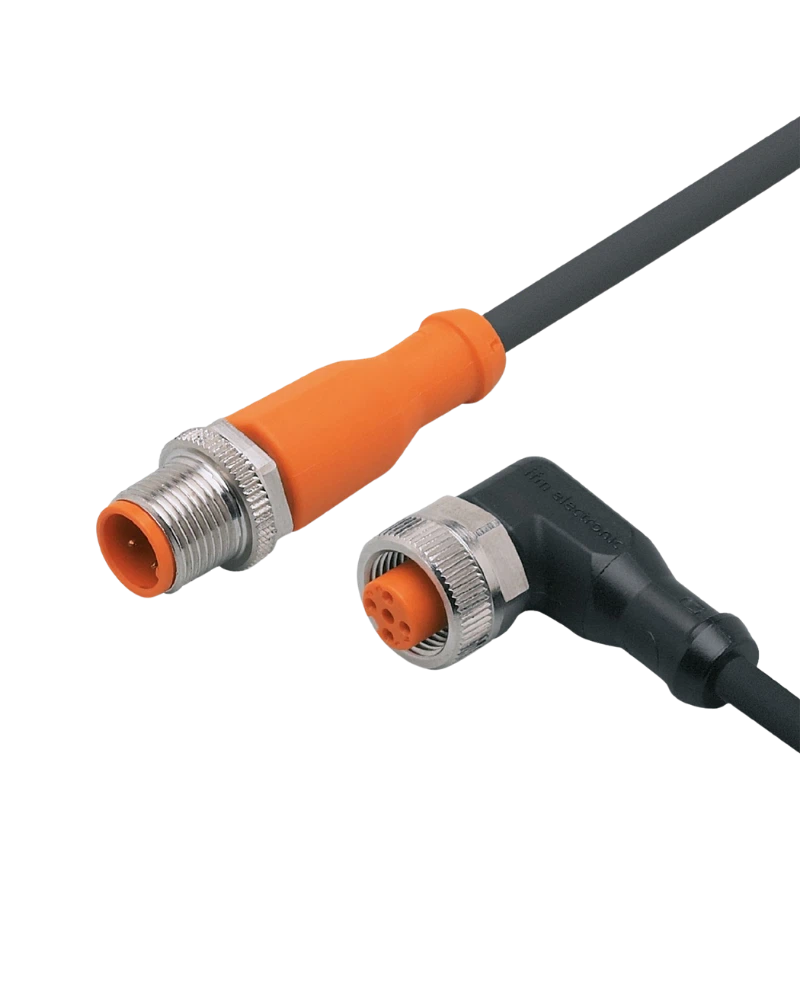

EVC050 is a compact 0.3 m industrial M12 connection cable designed for DC PNP automation systems. It features a straight M12 plug and angled M12 socket for convenient cable routing. The cable uses a PUR jacket with gold-plated contacts. LEDs provide visible power and switching-status indication during operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC050 is designed for connecting compatible sensors and actuators in factory automation and machine-tool environments. It operates from 10–36 V DC and supports a maximum current of 4 A. The connector assembly provides reliable sealing and mechanical stability. Its compact length is useful for closely positioned automation components.
The product uses a straight M12 plug and angled M12 socket with A coding. Three gold-plated contacts provide reliable signal and power transmission. TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. Yellow switching and green power LEDs provide convenient visual diagnostics.
EVC050 uses a 0.3 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and silicone-free for industrial applications. It is suitable for drag-chain use and repeated movement. The construction supports more than five million bending cycles under specified conditions.
EVC050 supports 10–36 V DC PNP operation with a 4 A current rating. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection provides high environmental resistance. The cable is designed for applications involving oils, coolants, vibration and shock.
0.3 m cable
DC PNP design
10–36 V DC operation
Straight M12 plug
Angled M12 socket
A-coded connection
3 gold-plated contacts
Yellow switching LED
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
PNP sensor connections
Factory automation
Machine tools
Actuator wiring
Industrial control
Sensor diagnostics
Machine automation
Production equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC050 |
| Model | VDOAH032MSS00,3H03STGH030MSS |
| Cable Length | 0.3 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Status Indication | Yellow LED |
| Power Indication | Green LED |
| Drag Chain | Yes |
