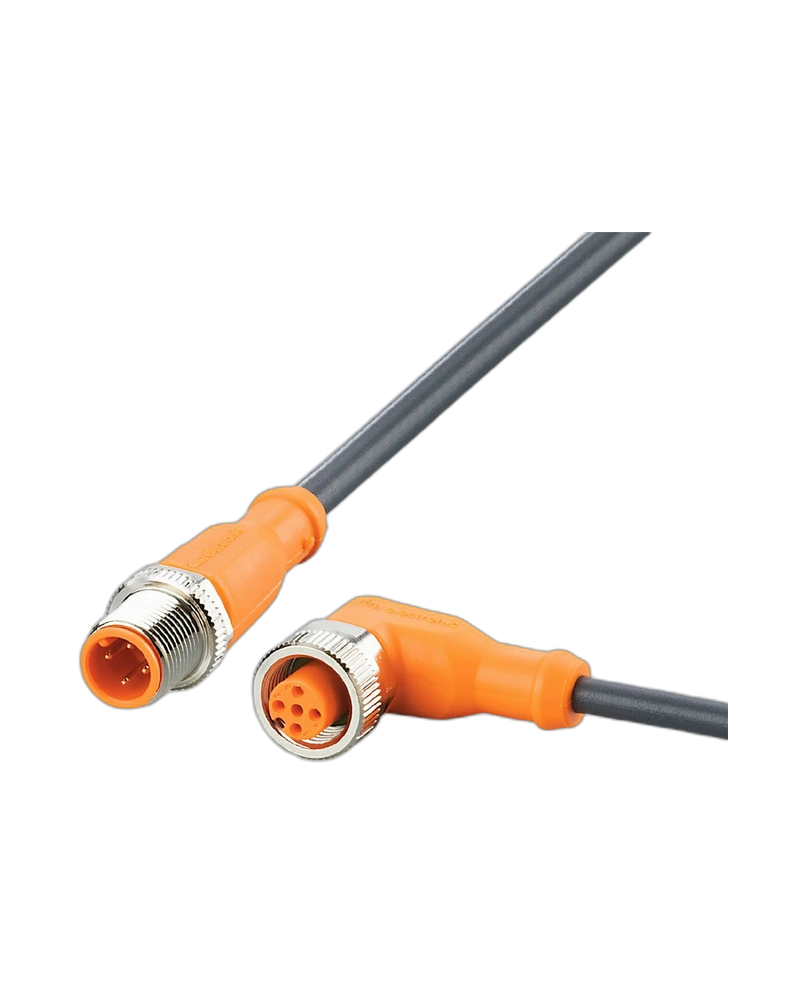

EVC049 is a 5 m industrial M12 connection cable designed for extended sensor and actuator connections. Its straight plug and angled socket configuration allows convenient cable routing around machine components. The PUR cable provides flexibility and mechanical durability. Gold-plated contacts and high IP protection support dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC049 provides an extended connection distance for industrial automation systems and machine tools. The cable supports AC/DC applications with up to 4 A current. Its angled socket helps reduce installation space around machinery. The rugged cable assembly is suitable for applications exposed to oils, coolants, vibration and mechanical movement.
The cable uses a straight M12 plug and angled M12 socket with A coding. Three gold-plated contacts provide stable electrical connectivity. TPU connector construction provides mechanical strength and insulation. Nickel-plated brass locking components and FKM sealing provide secure and protected connections.
EVC049 uses a 5 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and silicone-free for industrial applications. Its flexible construction supports repeated movement and drag-chain routing. The cable assembly is designed for long-term mechanical reliability in automation systems.
The cable supports less than 250 V AC or 300 V DC and up to 4 A current. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection provides resistance against dust, water and industrial cleaning. Oil and coolant resistance supports machine-tool environments.
5 m extended cable length
Straight M12 plug
Angled M12 socket
A-coded interface
3 gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain compatibility
Oil resistant
Coolant resistant
Vibration resistant
Machine-tool automation
Factory automation
Extended sensor connections
Actuator wiring
Industrial control systems
Moving machinery
Production equipment
Automation panels
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC049 |
| Model | VDOAH030MSS0005H03STGH030MSS |
| Cable Length | 5 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag Chain | Yes |
