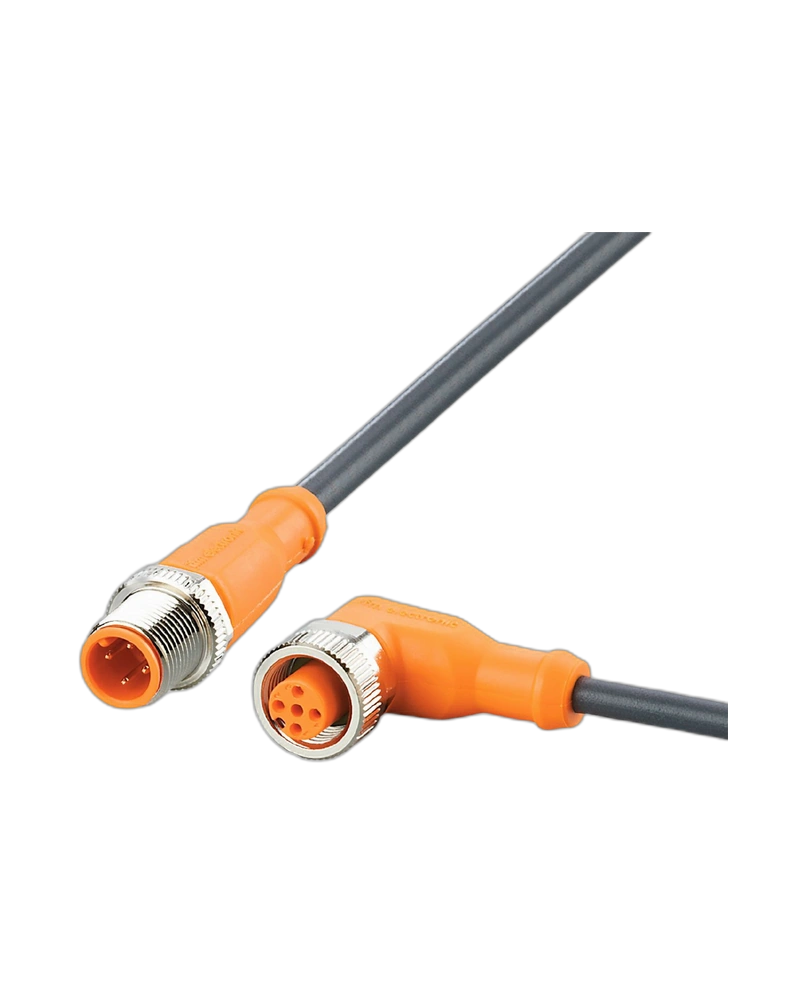

EVC048 is a 2 m industrial M12 connection cable designed for reliable sensor and actuator connectivity. It combines a straight M12 plug with an angled M12 socket for flexible routing. The cable uses a durable PUR jacket with gold-plated contacts. Its high protection rating makes it suitable for demanding industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC048 provides dependable electrical connectivity for factory automation and machine-tool applications. It supports AC/DC operation with a maximum current load of 4 A. The straight-to-angled connector arrangement simplifies cable routing around machinery. Its robust construction provides reliable performance where vibration, shock, oils and coolants are present.
The cable features one straight M12 plug and one angled M12 socket with A coding. Three gold-plated contacts provide reliable electrical transmission. TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. FKM sealing helps protect the connection from moisture and industrial contaminants.
EVC048 uses a 2 m black, halogen-free PUR cable with three 0.34 mm² conductors. The cable is silicone-free and designed for flexible industrial routing. It supports drag-chain applications with a minimum bending radius of 10 times the cable diameter. More than five million bending cycles are supported under specified conditions.
The cable supports less than 250 V AC or 300 V DC with a maximum total current load of 4 A. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65, IP67, IP68 and IP69K protection supports demanding industrial environments. The construction is suitable for machine tools, coolants and lubricants.
2 m cable length
Straight M12 plug
Angled M12 socket
A-coded connection
3 gold-plated contacts
PUR cable construction
Halogen-free material
Silicone-free construction
IP69K protection
Drag-chain suitable
Oil and coolant resistant
Vibration and shock resistant
Factory automation
Industrial sensor connections
Machine-tool wiring
Actuator connections
Control equipment
Moving machinery
Production-line automation
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC048 |
| Model | VDOAH030MSS0002H03STGH030MSS |
| Cable Length | 2 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65 / IP67 / IP68 / IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag Chain | Yes |
