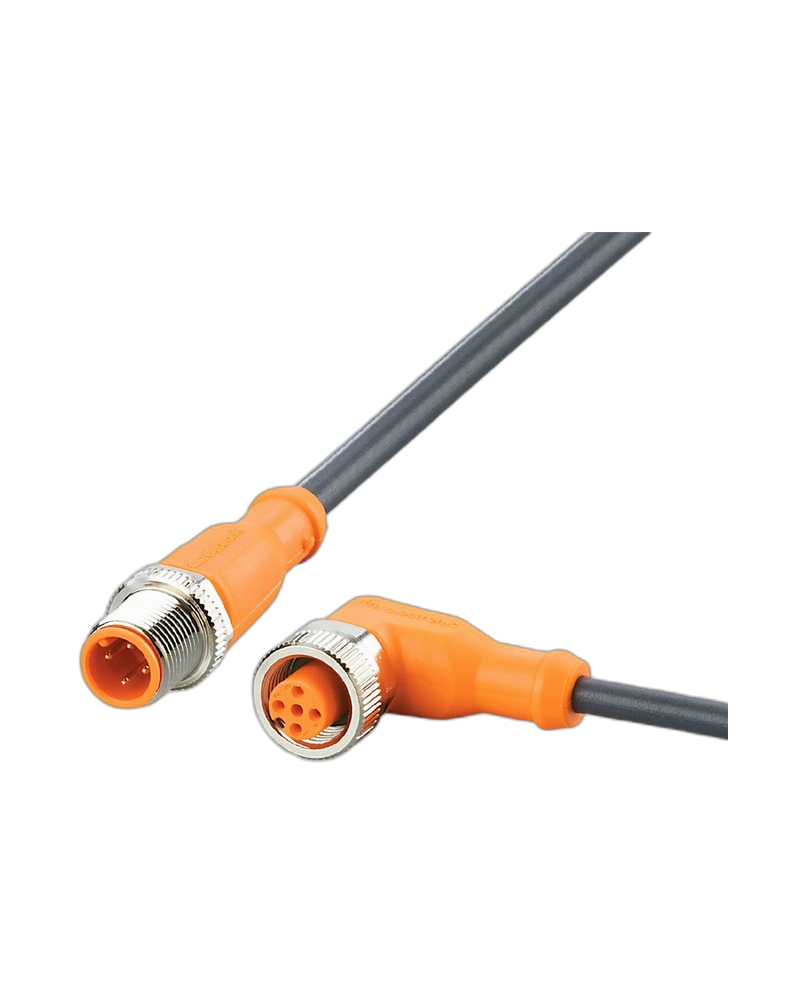

EVC047 is a 1 m industrial M12 connection cable designed for reliable AC/DC sensor and actuator connectivity. It uses a straight M12 plug and angled M12 socket for efficient routing around machine components. The cable features a halogen-free PUR jacket and gold-plated contacts. Its rugged construction provides dependable performance in demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC047 provides a practical 1 m connection length for industrial automation systems. It supports less than 250 V AC or 300 V DC with a maximum current rating of 4 A. The straight-to-angled connector arrangement provides installation flexibility where cable direction needs to change. High IP protection and mechanical durability make it suitable for machine tools and factory automation.
EVC047 uses a straight M12 plug and angled M12 socket with A coding and three gold-plated contacts. The plug and socket use brass, nickel-plated locking components with a 0.6–1.5 Nm tightening torque range. TPU connector construction and FKM/Viton sealing provide reliable environmental protection. The angled socket helps simplify cable routing around equipment.
The cable is 1 m long and uses a black halogen-free PUR jacket with three 0.34 mm² conductors. Its approximately 4.3 mm diameter provides a compact and flexible connection solution. The cable is suitable for drag-chain applications and repeated movement. It supports more than five million bending cycles and ±180°/m torsional strain.
EVC047 supports <250 V AC / <300 V DC with a 4 A maximum current rating. It operates from -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection supports demanding industrial environments. Oil and coolant resistance, combined with vibration and shock resistance, makes it suitable for machine-tool applications.
1 m cable length
Straight M12 plug
Angled M12 socket
A-coded interface
Three gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Shock resistant
Flexible cable routing
Factory automation
Machine tools
Industrial sensor wiring
Actuator connections
Automation machinery
Control systems
Moving equipment
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC047 |
| Model | VDOAH030MSS0001H03STGH030MSS |
| Cable Length | 1 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM/Viton |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Tightening Torque | 0.6–1.5 Nm |
