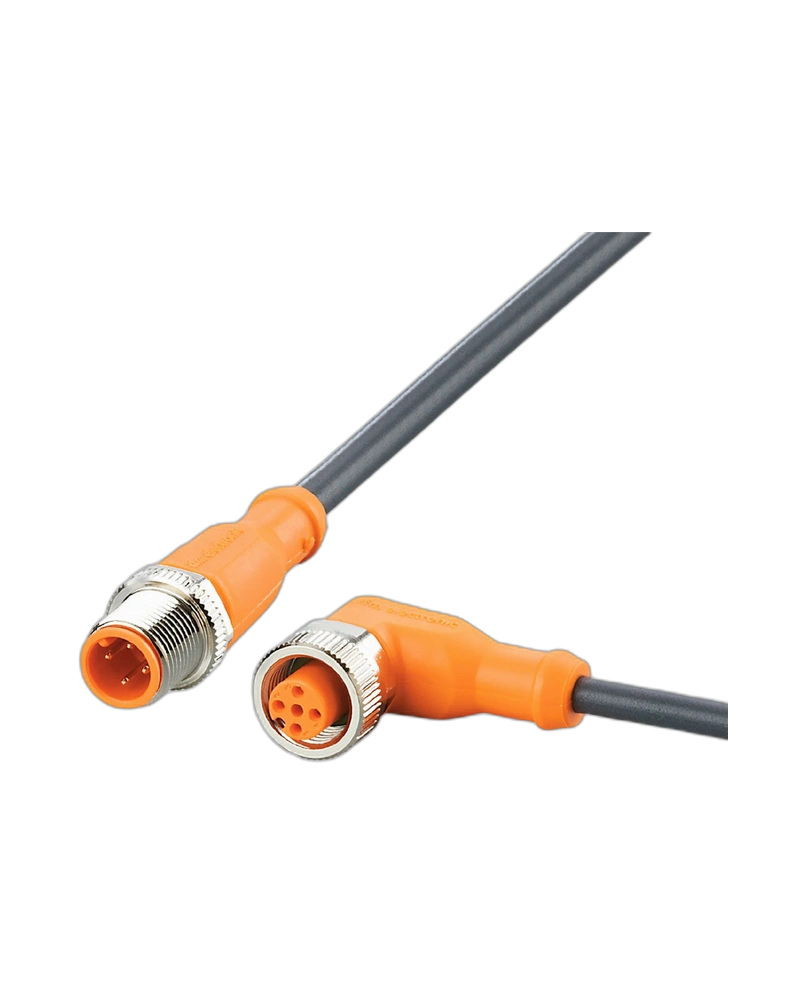

EVC046 is a 0.6 m industrial M12 connection cable designed for dependable AC/DC sensor and actuator connections. It combines a straight M12 plug with an angled M12 socket for practical cable routing. The cable uses a flexible, halogen-free PUR jacket with gold-plated contacts. Its high protection rating makes it suitable for demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC046 provides a 0.6 m connection length for industrial equipment requiring compact yet flexible wiring. It supports less than 250 V AC or 300 V DC and a maximum current of 4 A. The connector configuration is useful where the cable must change direction near the connection point. IP69K protection and rugged construction support machine-tool applications.
The product uses a straight M12 plug and angled M12 socket with A coding. Three gold-plated contacts provide dependable electrical transmission. The connector bodies use TPU material with nickel-plated brass locking components. FKM sealing provides reliable environmental protection at the angled socket connection.
EVC046 incorporates a 0.6 m black PUR cable with three 0.34 mm² conductors and approximately 4.3 mm diameter. The cable is halogen-free and silicone-free. It is suitable for drag-chain applications and repeated machine movement. The specified bending performance exceeds five million cycles.
The cable supports <250 V AC / <300 V DC and up to 4 A. Operating temperature is -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection provides strong resistance against dust, moisture and industrial cleaning. The cable is designed for oil, coolant, vibration and shock exposure.
0.6 m cable
Straight M12 plug
Angled M12 socket
A-coded interface
Three gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Flexible routing
Machine-tool wiring
Factory automation
Industrial sensor connections
Actuator connections
Compact machinery
Control equipment
Moving applications
Industrial production systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC046 |
| Model | VDOAH030MSS00,6H03STGH030MSS |
| Cable Length | 0.6 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, angled |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Diameter | Approx. 4.3 mm |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Weight | Approx. 49.9 g |
