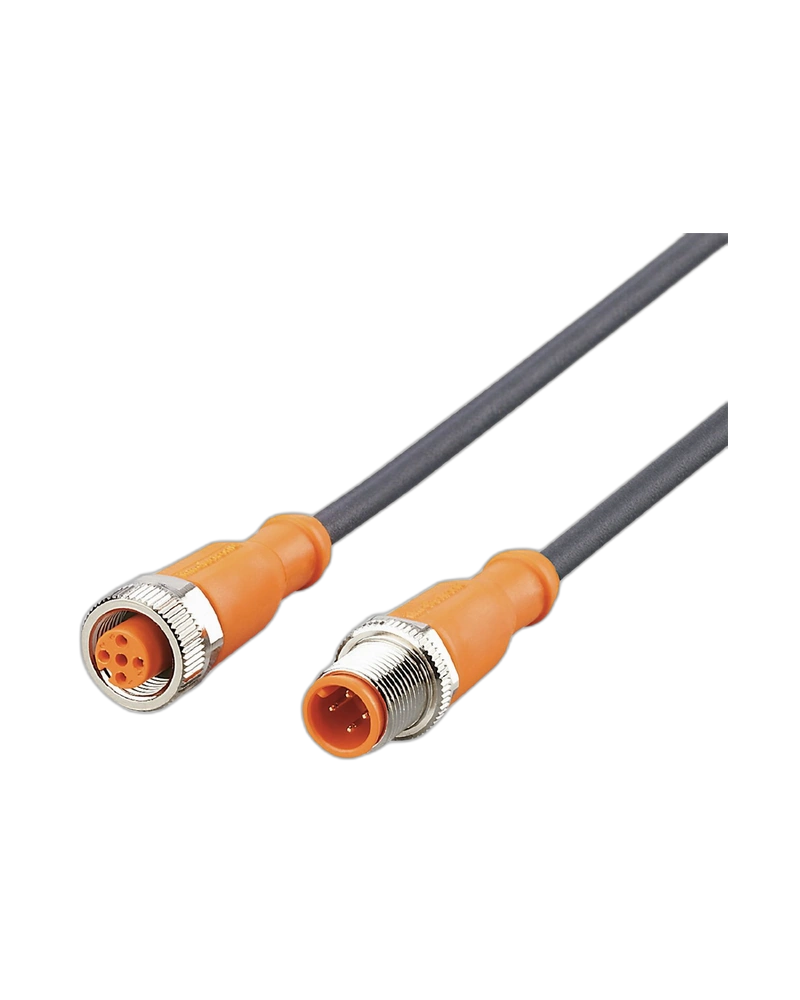

EVC044 is a 5 m industrial M12 connection cable designed for extended three-contact sensor and actuator connections. It uses straight M12 plug and socket interfaces for reliable machine wiring. The cable features a halogen-free PUR construction and gold-plated contacts. Its high IP protection supports demanding industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC044 provides an extended 5 m connection distance for factory automation and machine-tool systems. It supports AC/DC applications with less than 250 V AC or 300 V DC and a 4 A current rating. Its robust connector construction provides resistance to vibration and shock. The cable is suitable for applications involving oils, coolants and continuous machine movement.
The cable uses straight M12 plug and straight M12 socket connections with A coding. Three gold-plated contacts provide reliable electrical transmission. TPU connector bodies and nickel-plated brass locking components provide mechanical strength. FKM sealing supports reliable environmental protection at the connection interface.
EVC044 uses a 5 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and silicone-free. Its construction supports drag-chain applications and repeated bending. The cable supports more than five million bending cycles and ±180°/m torsional strain.
The cable supports <250 V AC / <300 V DC and up to 4 A. Operating temperature is -25 to +90 °C, with cULus operation up to 75 °C. IP65/IP67/IP68/IP69K protection enables use in harsh industrial environments. Oil and coolant resistance supports machine-tool applications.
5 m extended cable
Straight M12 plug
Straight M12 socket
A-coded interface
Three gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Shock resistant
Machine-tool connections
Factory automation
Long-distance sensor wiring
Actuator connections
Industrial control systems
Moving machinery
Coolant environments
Production equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC044 |
| Model | VDOGH030MSS0005H03STGH030MSS |
| Cable Length | 5 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, straight |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
