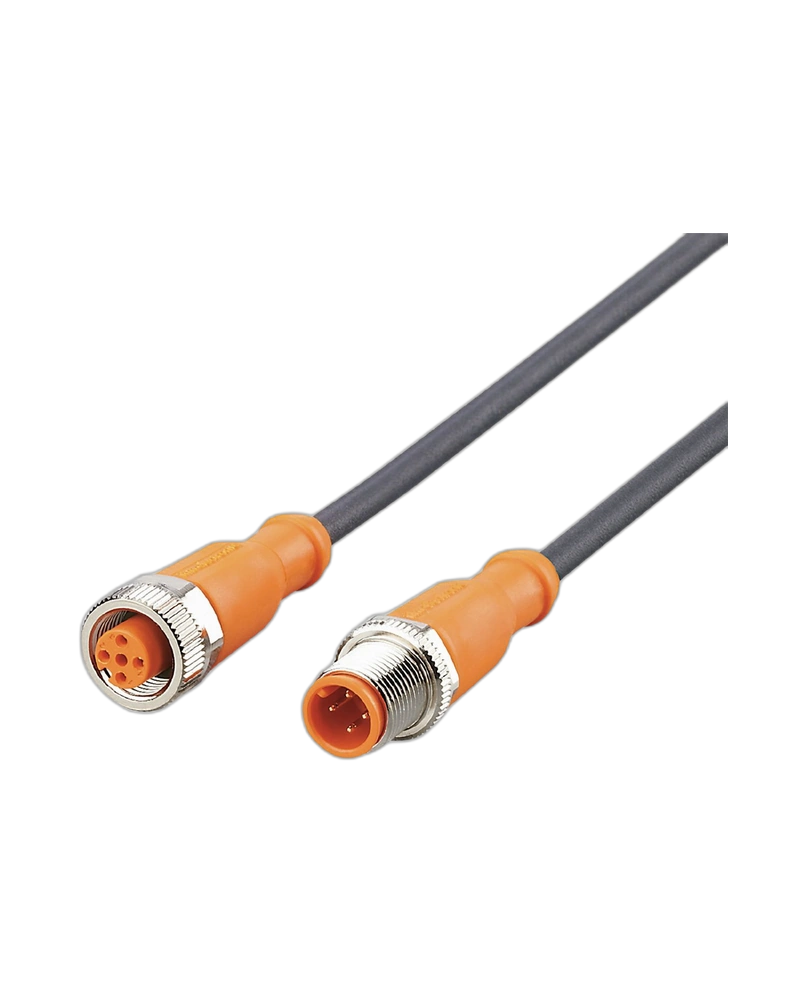

EVC043 is a 2 m industrial M12 connection cable designed for dependable sensor and actuator connectivity. Straight M12 connectors provide a simple and space-efficient connection arrangement. The cable uses halogen-free PUR insulation with gold-plated contacts. Its robust construction provides reliable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC043 provides a 2 m connection distance for industrial automation and machine-tool installations. It supports AC/DC applications with a maximum current rating of 4 A. The cable is designed to withstand vibration, shock, oils and coolants. Its high IP protection and drag-chain suitability make it appropriate for demanding machinery.
The product uses straight M12 plug and socket connectors with A coding and three gold-plated contacts. Nickel-plated brass locking components provide secure mechanical coupling. FKM sealing helps maintain protection against moisture and contaminants. The connector design provides stable performance during machine operation.
EVC043 incorporates a 2 m black PUR cable with three 0.34 mm² conductors. The cable is free from halogens and silicone for industrial installation requirements. Drag-chain suitability allows repeated movement in automated equipment. Its bending capability exceeds five million cycles under specified conditions.
The cable supports less than 250 V AC and less than 300 V DC with a maximum current load of 4 A. Operating temperature is -25 to +90 °C. IP65/IP67/IP68/IP69K protection supports harsh factory environments. Oil and coolant resistance makes the cable suitable for machine-tool applications.
2 m cable
Straight M12 plug
Straight M12 socket
A-coded interface
Three gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain suitable
Oil resistant
Coolant resistant
Vibration resistant
Machine tools
Factory automation
Industrial sensors
Actuator connections
Automation equipment
Control systems
Moving machinery
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC043 |
| Model | VDOGH030MSS0002H03STGH030MSS |
| Cable Length | 2 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, straight |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
