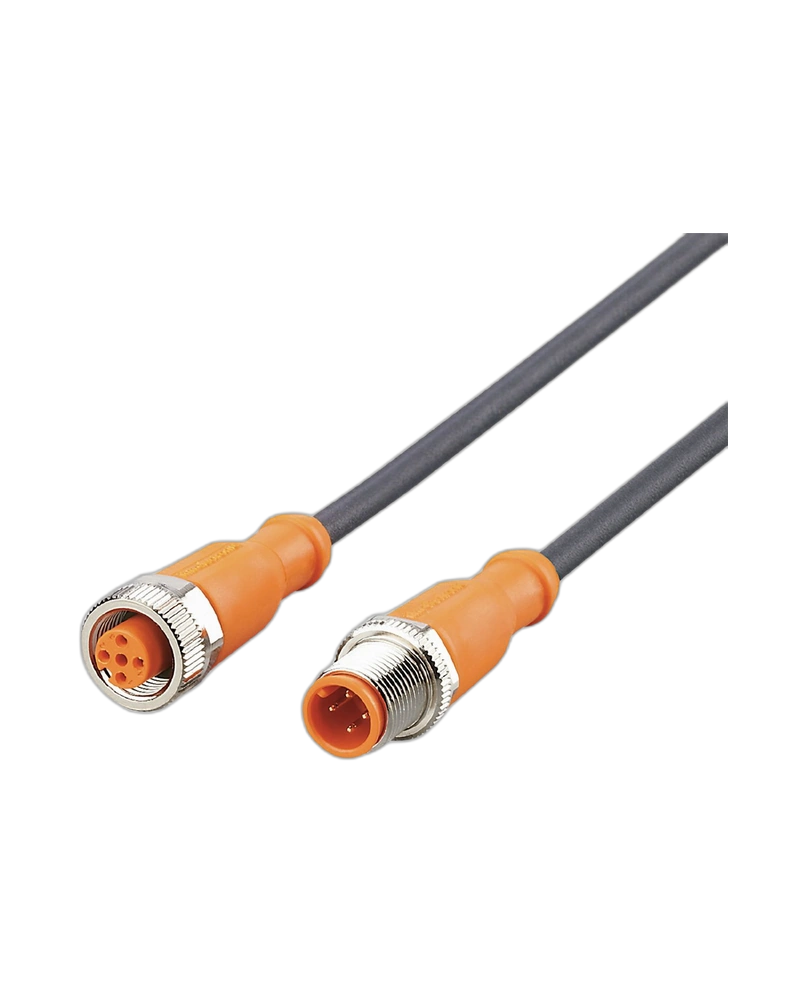

EVC042 is a 1 m industrial M12 connection cable designed for dependable three-contact connectivity. It uses straight M12 plug and socket interfaces for clean and direct machine wiring. The cable is manufactured with halogen-free PUR insulation and gold-plated contacts. Its rugged sealing and locking system supports reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC042 provides a 1 m connection length for sensors, actuators and automation components. It supports AC/DC electrical applications with a 4 A current rating. The connector system is designed to maintain reliable sealing even during tool-free installation. High IP protection and mechanical resistance make it suitable for harsh industrial environments.
Both cable ends use straight A-coded M12 connectors with three gold-plated contacts. Brass, nickel-plated locking components provide secure coupling. FKM sealing protects the connection from moisture and contaminants. The mechanical end stop helps prevent damage to the O-ring during tightening.
The 1 m cable uses a flexible black PUR jacket with three 0.34 mm² conductors. The construction is free from halogens and silicone. Drag-chain compatibility supports applications involving repeated movement. Its bending performance exceeds five million cycles under specified conditions.
EVC042 operates with less than 250 V AC or 300 V DC and supports up to 4 A. It operates from -25 to +90 °C with high IP protection. The cable is resistant to oils and coolants encountered in machine-tool applications. Its locking mechanism provides resistance against vibration and shock.
1 m cable length
Three-contact M12 interface
Straight M12 plug
Straight M12 socket
A-coded connection
Gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Machine-tool wiring
Factory automation
Industrial sensors
Actuator connections
Control systems
Moving machinery
Automation equipment
Industrial production systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC042 |
| Model | VDOGH030MSS0001H03STGH030MSS |
| Cable Length | 1 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, straight |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
