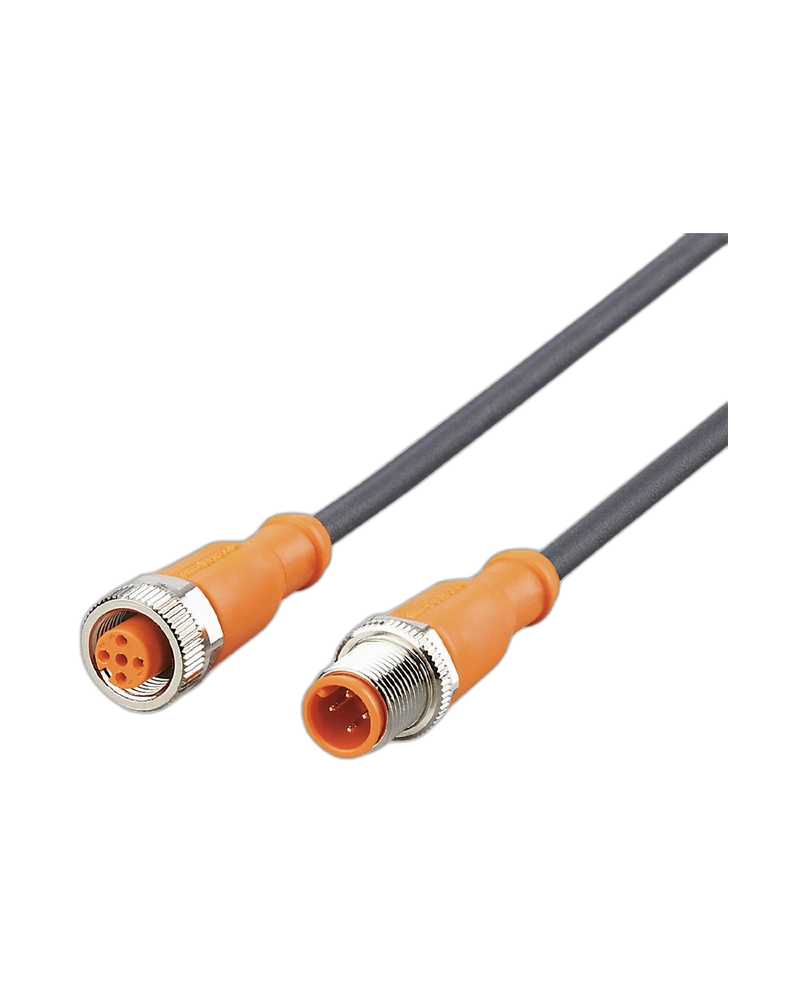

EVC041 is a 0.6 m industrial M12 connection cable designed for reliable three-contact sensor and actuator connections. It uses straight M12 plug and socket interfaces for straightforward machine installation. The cable combines a flexible PUR construction with gold-plated contacts. Its high protection rating makes it suitable for demanding factory automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC041 provides a practical 0.6 m connection length for industrial automation equipment. It supports AC/DC applications with up to 4 A current and less than 250 V AC or 300 V DC. Its locking mechanism provides resistance against vibration and shock. The cable is designed for machine tools and applications involving oils and coolants.
Both ends use straight M12 connectors with A coding and three gold-plated contacts. Nickel-plated brass locking components provide secure mechanical coupling. The connector body uses TPU material with FKM sealing. The mechanical end stop helps protect the sealing interface during installation.
The cable uses a 0.6 m black halogen-free PUR jacket with three 0.34 mm² conductors. It is designed for flexible routing and continuous machine movement. Drag-chain suitability allows use in automated machinery with repeated cable motion. More than five million bending cycles are supported.
EVC041 supports <250 V AC / <300 V DC and up to 4 A current. It operates from -25 to +90 °C and provides IP65/IP67/IP68/IP69K protection. The cable is resistant to industrial oils and coolants. Its coupling system provides reliable performance under vibration and shock.
0.6 m cable
Three-contact M12 connection
Straight M12 plug
Straight M12 socket
A-coded interface
Gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Industrial automation
Machine tools
Sensor connections
Actuator wiring
Factory machinery
Control systems
Moving equipment
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC041 |
| Model | VDOGH030MSS00,6H03STGH030MSS |
| Cable Length | 0.6 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, straight |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
