EVC040 is a compact 0.3 m industrial M12 connection cable designed for reliable sensor and actuator connectivity. It uses straight M12 plug and socket interfaces for direct machine-level connections. The cable features a halogen-free PUR jacket and gold-plated contacts. Its rugged construction provides reliable performance in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC040 is designed for AC/DC industrial applications where a short and dependable three-contact connection is required. It supports up to 4 A current and less than 250 V AC or 300 V DC. The cable is suitable for factory automation and machine-tool installations. Its high protection rating supports exposure to oils, coolants, vibration and shock.

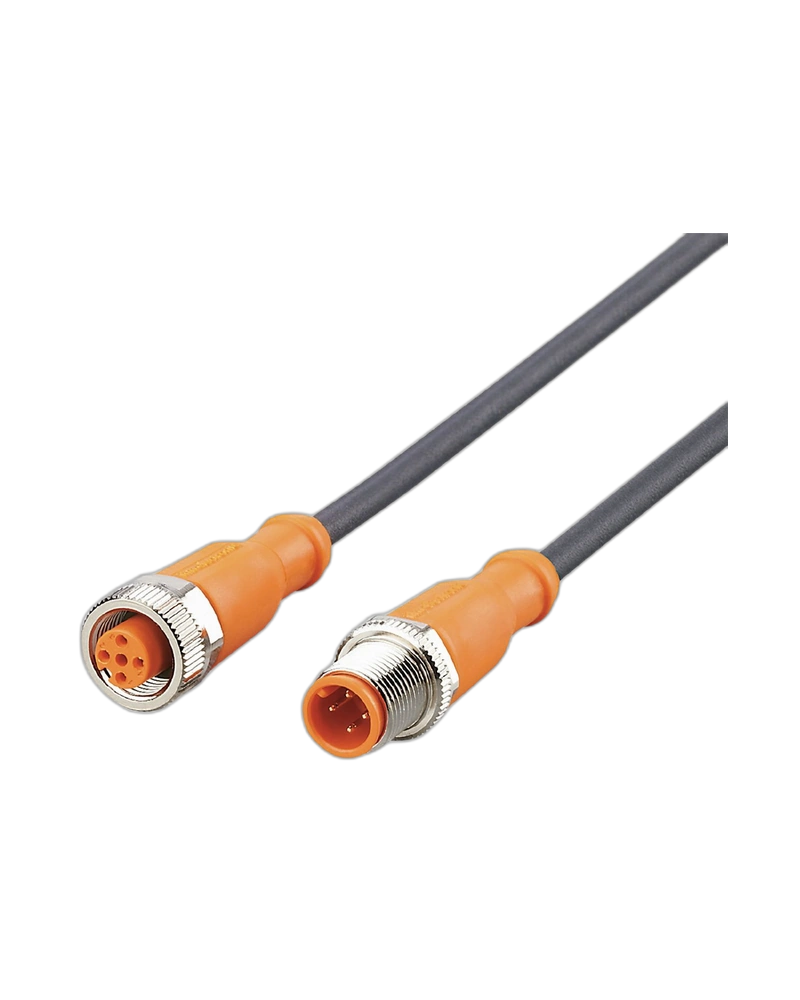

The cable incorporates straight M12 plug and straight M12 socket connectors with A coding. Three gold-plated contacts provide reliable electrical connectivity. TPU connector bodies and nickel-plated brass locking components provide mechanical stability. FKM sealing supports long-term environmental protection.
EVC040 uses a 0.3 m black PUR cable with three 0.34 mm² conductors. The cable is halogen-free and silicone-free for industrial use. Its flexible construction supports drag-chain applications and repeated bending. It supports more than five million bending cycles under specified conditions.
The cable supports less than 250 V AC and less than 300 V DC with a 4 A maximum current load. Operating temperature is -25 to +90 °C. IP65/IP67/IP68/IP69K protection enables use in demanding industrial environments. The connector system is resistant to vibration and shock during machine operation.
0.3 m compact cable
Three-contact M12 interface
Straight M12 plug
Straight M12 socket
A-coded connection
Gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain suitable
Oil resistant
Coolant resistant
Vibration resistant
Factory automation
Machine tools
Industrial sensors
Actuator connections
Machine-level wiring
Control equipment
Moving machinery
Industrial production systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC040 |
| Model | VDOGH030MSS00,3H03STGH030MSS |
| Cable Length | 0.3 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, straight |
| Socket | M12, straight |
| Coding | A |
| Contacts | 3, gold-plated |
| Cable Material | PUR |
| Conductors | 3 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
