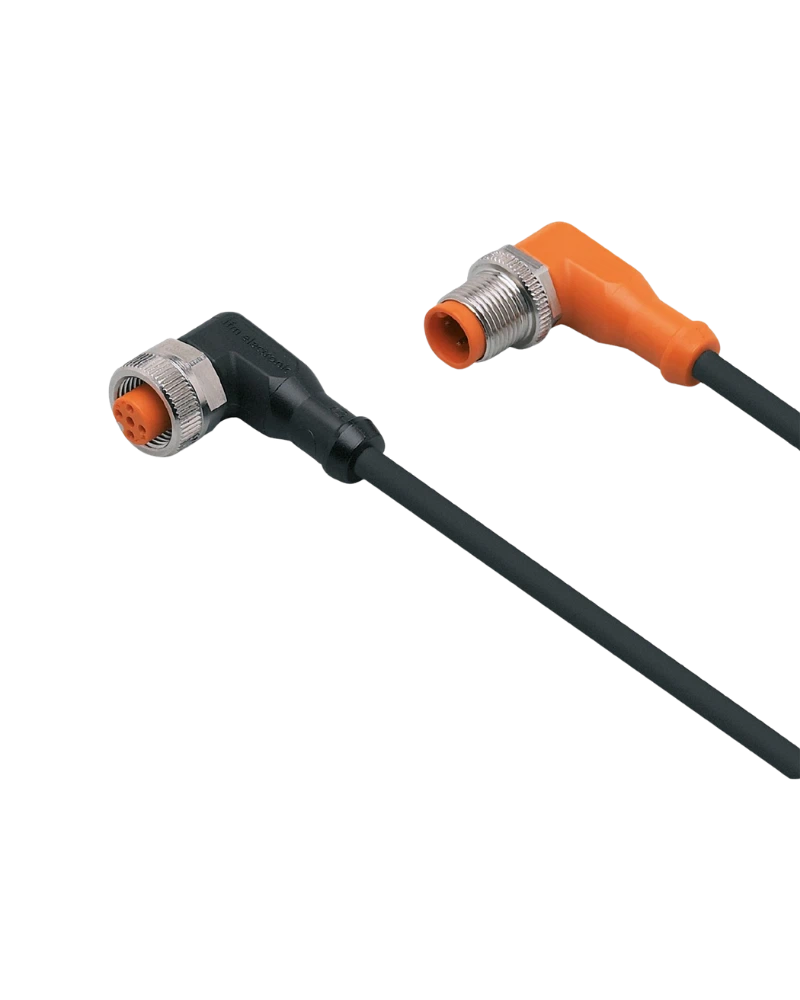

EVC039 is a 5 m industrial M12 connection cable designed for extended PNP sensor and actuator connections. Its angled M12 plug and socket configuration allows practical routing around machinery. The cable combines a flexible PUR jacket with gold-plated contacts and integrated status indication. It is designed for reliable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC039 provides a longer connection distance for industrial sensors and actuators without compromising the compact M12 interface. It supports 10–36 V DC PNP operation with a maximum current rating of 4 A. The connector assembly is designed for resistance to vibration and mechanical shock. Its industrial protection rating makes it suitable for machine tools and factory automation.
The product uses angled M12 plug and angled M12 socket connections with A coding. Four gold-plated contacts provide dependable electrical transmission. The connector bodies use TPU material with nickel-plated brass locking components and Viton sealing. Two yellow switching LEDs and one green power LED provide visible operating information.
EVC039 incorporates a 5 m black PUR cable with four 0.34 mm² conductors and approximately 4.9 mm diameter. The cable is free from halogens and silicone and supports drag-chain applications. It is designed for repeated movement and bending in automated machinery. The specified bending performance exceeds five million cycles.
The cable supports 10–36 V DC operation and up to 4 A current. IP65/IP67/IP68/IP69K protection provides resistance against dust, water and demanding industrial cleaning conditions. Operating temperature is -25 to +90 °C, with cULus operation up to 75 °C. Oil, coolant, vibration and shock resistance support reliable machine operation.
5 m extended cable length
DC PNP design
10–36 V DC operation
Angled M12 plug
Angled M12 socket
A-coded interface
Gold-plated contacts
2 yellow switching LEDs
Green power LED
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatibility
Long-distance sensor connections
PNP automation systems
Machine tools
Factory automation
Actuator wiring
Moving machinery
Sensor diagnostics
Industrial control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC039 |
| Model | VDOAH043MSS0005H04STAH040MSS |
| Cable Length | 5 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Conductors | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton/FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 × yellow |
| Power LED | Green |
