EVC038 is a 2 m industrial M12 connection cable designed for reliable PNP sensor and actuator connectivity. It features angled M12 plug and socket connections for convenient installation in compact machinery. The cable uses a flexible, halogen-free PUR construction with gold-plated contacts. Integrated LED indicators provide clear visual feedback during operation and troubleshooting.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC038 provides a dependable connection solution for industrial automation and machine-tool applications. It supports DC PNP electrical systems with a 10–36 V DC operating range and 4 A current rating. The robust connector design provides secure electrical and mechanical coupling under vibration and movement. Its high IP protection makes it suitable for demanding factory environments.

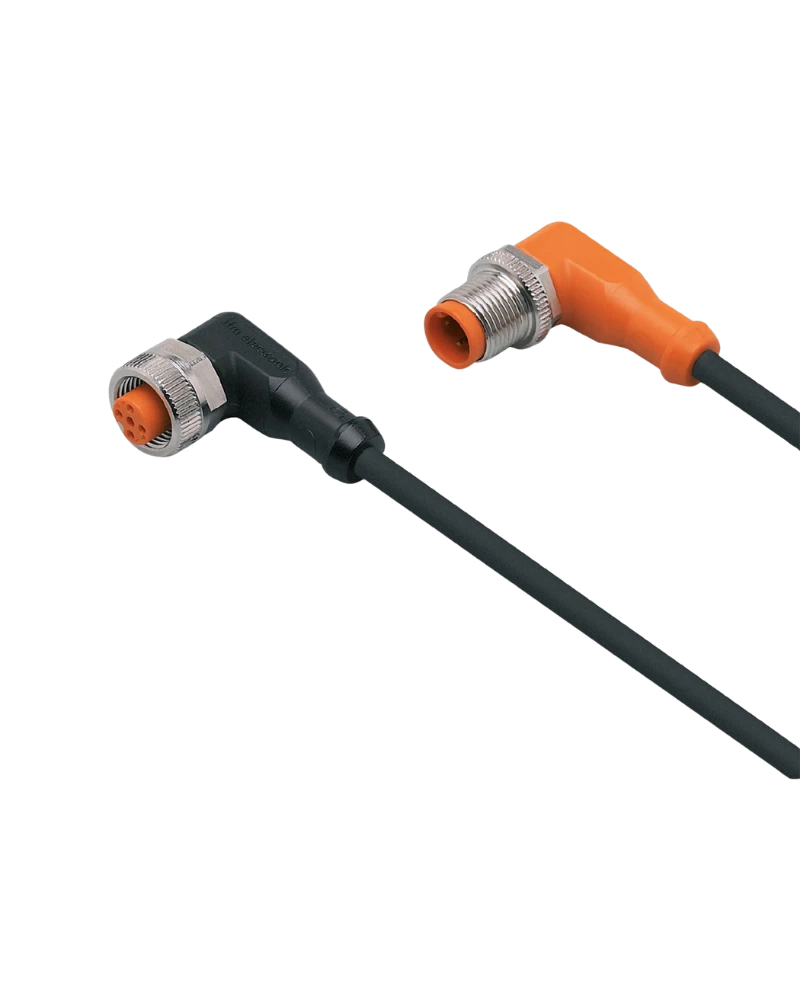

The cable uses an angled M12 plug and angled M12 socket with A-coded interfaces. Four gold-plated contacts provide stable signal and power transmission. The connector bodies are manufactured from durable TPU material with nickel-plated brass locking components. Two yellow switching LEDs and one green power LED provide convenient visual status indication.
EVC038 uses a 2 m black PUR cable with four 0.34 mm² conductors and approximately 4.9 mm cable diameter. The cable is halogen-free and silicone-free for industrial installation requirements. It supports drag-chain applications and repeated mechanical movement. The cable construction is rated for more than five million bending cycles.
The cable operates from 10–36 V DC with a maximum current rating of 4 A. IP65, IP67, IP68 and IP69K protection supports use in demanding industrial environments. It operates from -25 to +90 °C, with cULus operation up to 75 °C. Oil, coolant, vibration and shock resistance make it suitable for machine automation.
2 m cable length
DC PNP electrical design
10–36 V DC operation
Angled M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
2 yellow switching LEDs
Green power LED
Halogen-free PUR cable
Silicone-free construction
IP69K protection
Drag-chain suitable
Industrial sensor connections
PNP automation systems
Machine-tool wiring
Actuator connections
Factory automation
Sensor diagnostics
Moving machinery
Industrial control equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC038 |
| Model | VDOAH043MSS0002H04STAH040MSS |
| Cable Length | 2 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10–36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Conductors | 4 × 0.34 mm² |
| Cable Diameter | Approx. 4.9 mm |
| Cable Colour | Black |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | Viton/FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Moving Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 × yellow |
| Power LED | Green |
