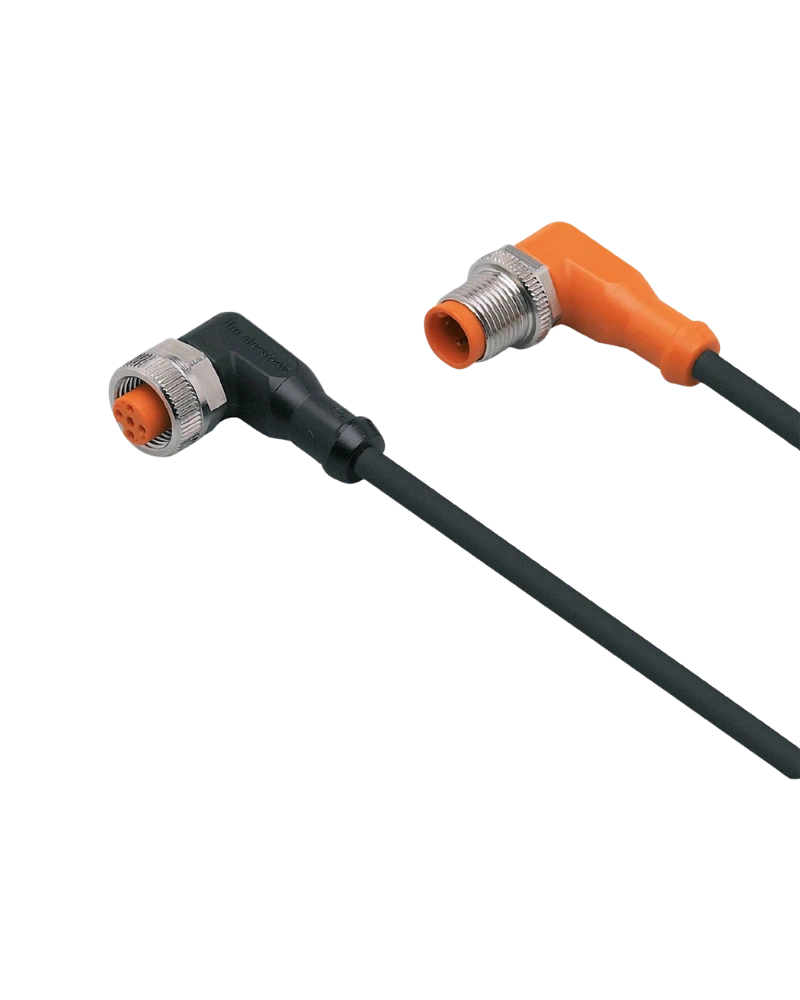

EVC037 is a 1 m M12 PNP connection cable designed for reliable sensor and actuator connectivity in industrial automation systems. It uses angled M12 plug and socket interfaces for flexible routing in machine installations. The cable features a halogen-free PUR construction with gold-plated contacts. Integrated LED indicators provide clear visual information for power and output status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC037 provides a 1 m connection length for standard machine-level sensor and actuator installations. Its DC PNP electrical design supports 10–36 V DC operation and a maximum current rating of 4 A. Integrated LEDs simplify commissioning and fault diagnosis. The cable is suitable for factory automation, machine tools and applications involving repeated mechanical movement.
The cable uses angled M12 plug and socket connectors with A coding and four gold-plated contacts. The connector bodies combine TPU construction with nickel-plated brass locking components. FKM sealing provides reliable protection at the connection points. The integrated yellow and green LEDs allow quick visual verification of power and switching status.
EVC037 uses a 1 m black PUR cable containing four 0.34 mm² conductors with a 4.9 mm cable diameter. The cable is halogen-free and silicone-free and is suitable for drag-chain applications. It supports more than five million bending cycles. The cable is designed for repeated movement, vibration and industrial mechanical loads.
EVC037 operates from 10 to 36 V DC and supports up to 4 A current. IP65/IP67/IP68/IP69K protection provides reliable environmental resistance for industrial applications. The operating temperature range is -25 to +90 °C, with cULus operation up to 75 °C. Its robust construction makes it suitable for machine tools and factory automation.
1 m cable
DC PNP electrical design
10–36 V DC operation
Angled M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
2 yellow switching LEDs
Green power LED
Halogen-free PUR cable
Silicone-free
IP69K protection
PNP sensor wiring
Factory automation
Machine tools
Industrial sensor systems
Actuator connections
Sensor diagnostics
Moving machinery
Automation control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC037 |
| Model | VDOAH043MSS0001H04STAH040MSS |
| Cable Length | 1 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM/Viton |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Max. 75 °C |
| Weight | 64 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 × yellow |
| Power LED | Green |
| Drag-Chain Suitability | Yes |
