EVC036 is a 0.6 m M12 PNP connection cable designed for reliable industrial sensor and actuator wiring. Its angled M12 plug and socket configuration supports efficient cable routing around machine components. The cable uses flexible halogen-free PUR construction with gold-plated contacts. Integrated LED indicators provide convenient visual status information.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC036 provides a practical 0.6 m connection length for industrial automation installations. It supports 10–36 V DC PNP applications with a maximum current rating of 4 A. The integrated status LEDs assist with installation, commissioning and troubleshooting. Its rugged construction is suitable for machine tools, factory automation and moving machinery.

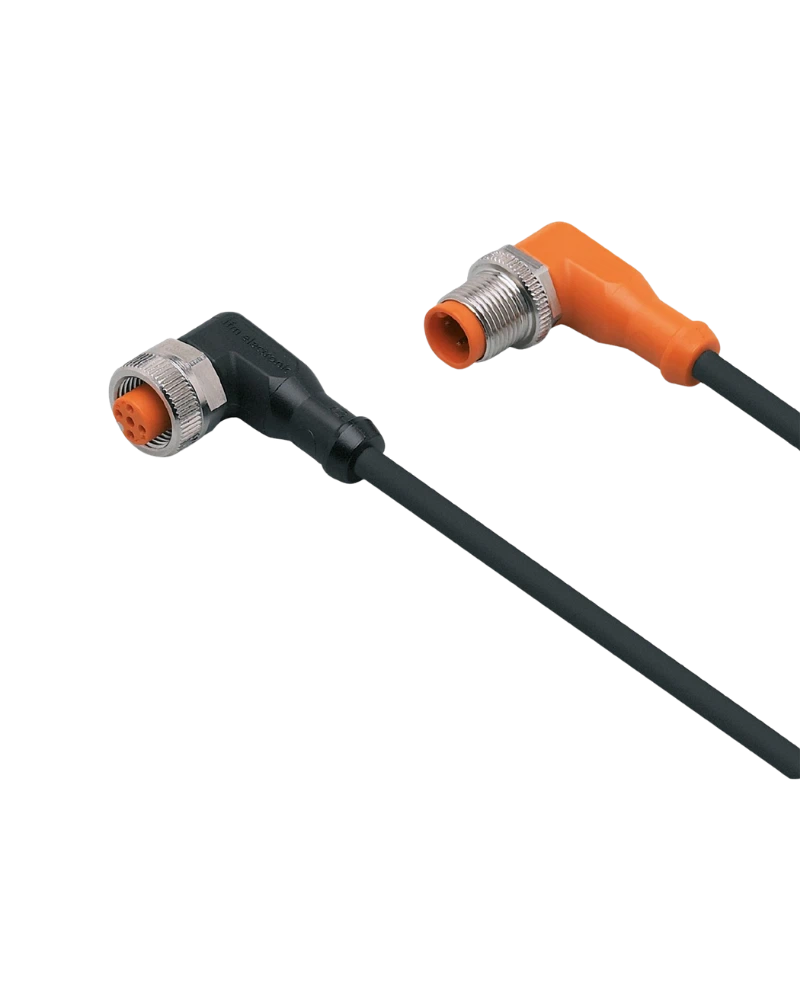

The product uses angled A-coded M12 plug and socket connectors with four gold-plated contacts. TPU connector bodies provide mechanical protection while nickel-plated brass locking components maintain secure coupling. FKM sealing supports reliable environmental protection. Yellow switching LEDs and a green power LED provide direct visual feedback.
EVC036 uses a 0.6 m black PUR cable with four 0.34 mm² conductors and a 4.9 mm diameter. The cable is halogen-free and silicone-free for industrial installation. It is suitable for drag-chain applications and repeated movement. The construction supports more than five million bending cycles under specified conditions.
EVC036 supports 10–36 V DC operation with a maximum current rating of 4 A. IP65/IP67/IP68/IP69K protection enables operation in demanding industrial environments. The operating temperature range is -25 to +90 °C. Its design is suitable for applications exposed to oils, coolants, vibration and repeated mechanical movement.
0.6 m cable
DC PNP design
10–36 V DC
Angled M12 connections
Gold-plated contacts
Yellow switching LEDs
Green power LED
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil and coolant resistant
Industrial sensors
PNP automation systems
Machine tools
Factory automation
Sensor diagnostics
Moving machinery
Control systems
Industrial equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC036 |
| Model | VDOAH043MSS00,6H04STAH040MSS |
| Cable Length | 0.6 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Max. 75 °C |
| Weight | 54 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 × yellow |
| Power LED | Green |
