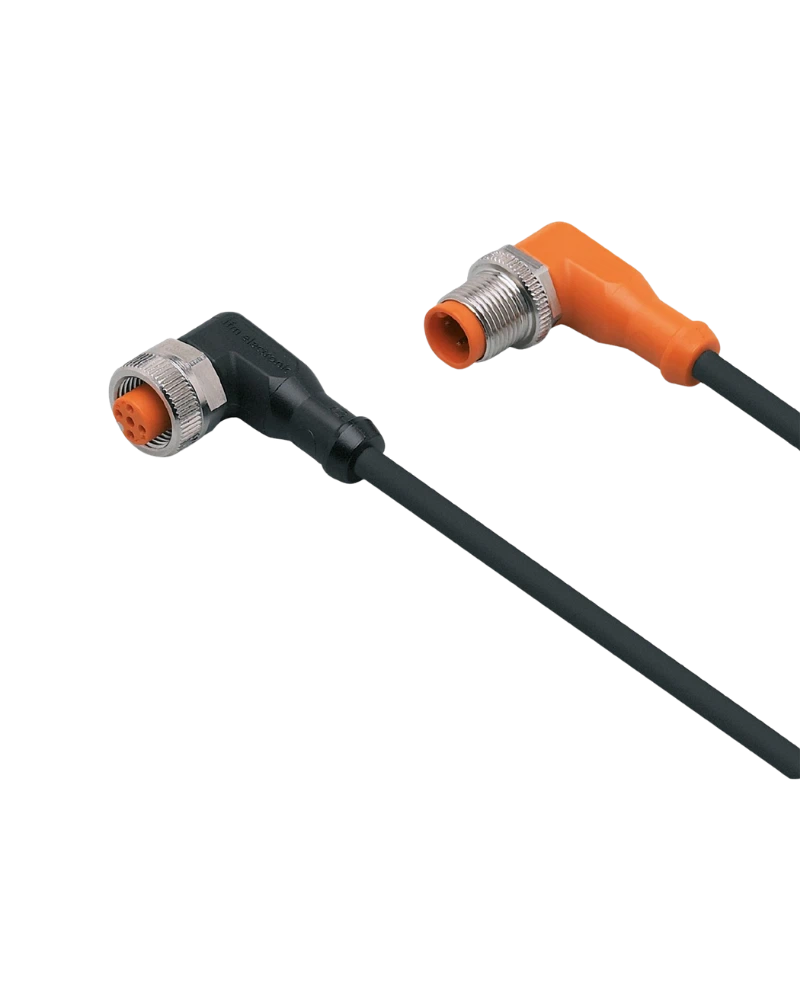

EVC035 is a 0.3 m M12 connection cable designed for PNP industrial sensor and automation applications. It uses angled M12 plug and socket interfaces for efficient machine-level cable routing. The cable features a flexible halogen-free PUR jacket with gold-plated contacts. Integrated LED indication provides convenient visibility of power and switching status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC035 provides a compact connection solution for sensors and actuators installed close to automation equipment. Its DC PNP electrical design operates from 10 to 36 V DC and supports up to 4 A. Integrated yellow status LEDs and a green power LED simplify commissioning and diagnostics. The cable is designed for industrial automation, machine tools and moving applications.
The cable uses angled M12 plug and socket connectors with A coding and four gold-plated contacts. The connectors use TPU housings with nickel-plated brass locking components. FKM sealing supports reliable protection against industrial contaminants. Integrated LEDs provide visible indication of output status and power availability.
EVC035 uses a 0.3 m black PUR cable with four 0.34 mm² conductors and a 4.9 mm diameter. The cable is free from silicone and halogens and is suitable for drag-chain applications. It supports more than five million bending cycles. Its flexible construction is suitable for repeated movement in automated machinery.
The cable operates from 10 to 36 V DC and supports a maximum current rating of 4 A. IP65/IP67/IP68/IP69K protection supports harsh industrial environments. The operating temperature range is -25 to +90 °C, with cULus operation up to 75 °C. The cable is suitable for machine tools and environments involving oils and coolants.
0.3 m cable
DC PNP design
10–36 V DC operation
Angled M12 plug
Angled M12 socket
Gold-plated contacts
Yellow switching LEDs
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
PNP sensor connections
Factory automation
Machine tools
Sensor diagnostics
Actuator connections
Moving machinery
Industrial control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC035 |
| Model | VDOAH043MSS00,3H04STAH040MSS |
| Cable Length | 0.3 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Cable Colour | Black |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| cULus Temperature | Max. 75 °C |
| Weight | 43 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Status LEDs | 2 × yellow |
| Power LED | Green |
