EVC034 is a 5 m industrial M12 connection cable designed for extended sensor and actuator connections. It features angled M12 plug and socket interfaces for efficient cable routing in automation equipment. The cable uses a halogen-free PUR construction with gold-plated contacts. Its IP69K protection and rugged mechanical design support harsh industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable provides extended reach between sensors, actuators and automation equipment. EVC034 supports AC/DC applications with a maximum current rating of 4 A. Its connector construction provides reliable sealing and resistance to vibration and shock. It is suitable for industrial automation, machine tools and applications involving coolants and lubricants.

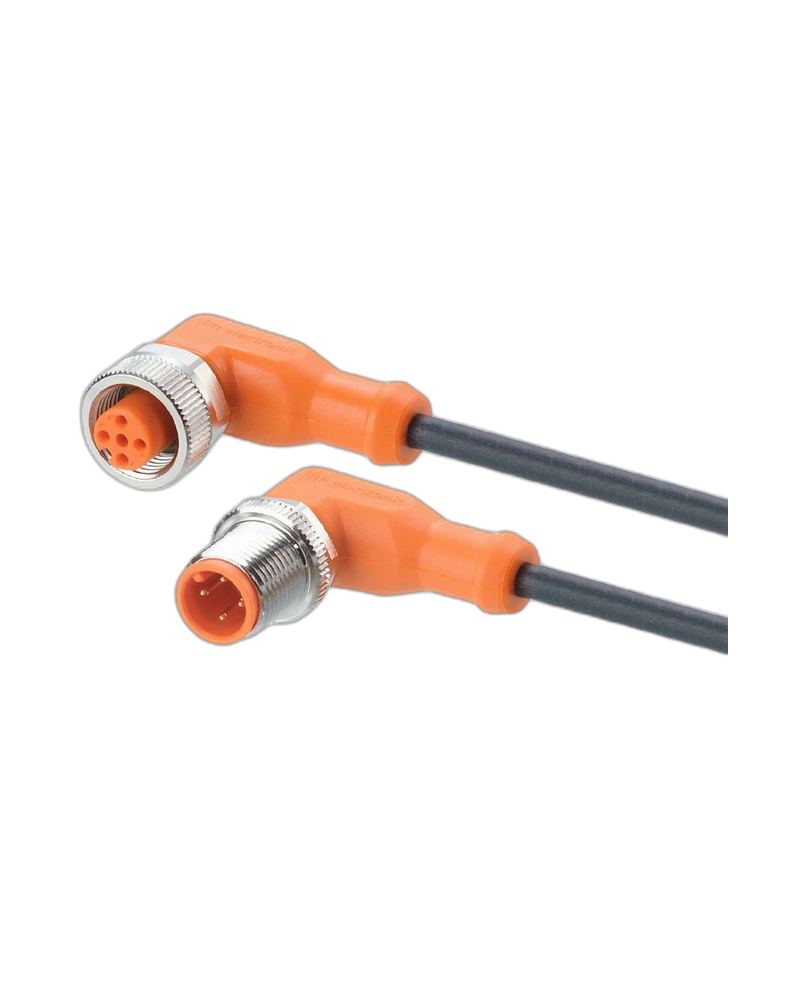

EVC034 uses angled A-coded M12 plug and socket connections with four gold-plated contacts. The connector bodies use TPU material and the locking components use nickel-plated brass. FKM sealing helps maintain reliable protection against environmental contaminants. The connection system is designed for secure installation even in demanding machinery.
The 5 m cable uses black halogen-free PUR with four 0.34 mm² conductors and a 4.3 mm diameter. It is suitable for drag-chain applications and repeated mechanical movement. The minimum bending radius is 10 times the cable diameter. The cable supports more than five million bending cycles and torsional strain of ±180°/m.
EVC034 supports less than 250 V AC and less than 300 V DC with a maximum current of 4 A. It operates from -25 to +90 °C and provides IP65/IP67/IP68/IP69K protection. The product is designed for industrial automation and machine-tool environments. It provides reliable operation where oils, coolants, vibration and mechanical movement are present.
5 m cable length
Angled M12 plug
Angled M12 socket
A-coded interface
Gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
High vibration resistance
Machine tools
Factory automation
Industrial sensor wiring
Actuator wiring
Long-distance machine connections
Moving machinery
Coolant applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC034 |
| Model | VDOAH040MSS0005H04STAH040MSS |
| Cable Length | 5 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Storage Temperature | -25...55 °C |
| Dimensions | 30.5 × 15.5 × 36.5 mm |
| Weight | 167.2 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc. |
