EVC033 is a 2 m industrial M12 connection cable designed for reliable sensor and actuator wiring. Its angled M12 plug and socket configuration provides practical routing around machinery and control equipment. The cable uses a durable halogen-free PUR jacket and gold-plated contacts. It is designed for demanding industrial automation and machine-tool applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2 m cable provides extended reach for industrial machine connections while maintaining a compact M12 interface. EVC033 supports AC/DC operation with a maximum current rating of 4 A. Its connector locking mechanism provides resistance to vibration and shock. The product is suitable for factory automation, machine tools and applications involving coolants and lubricants.

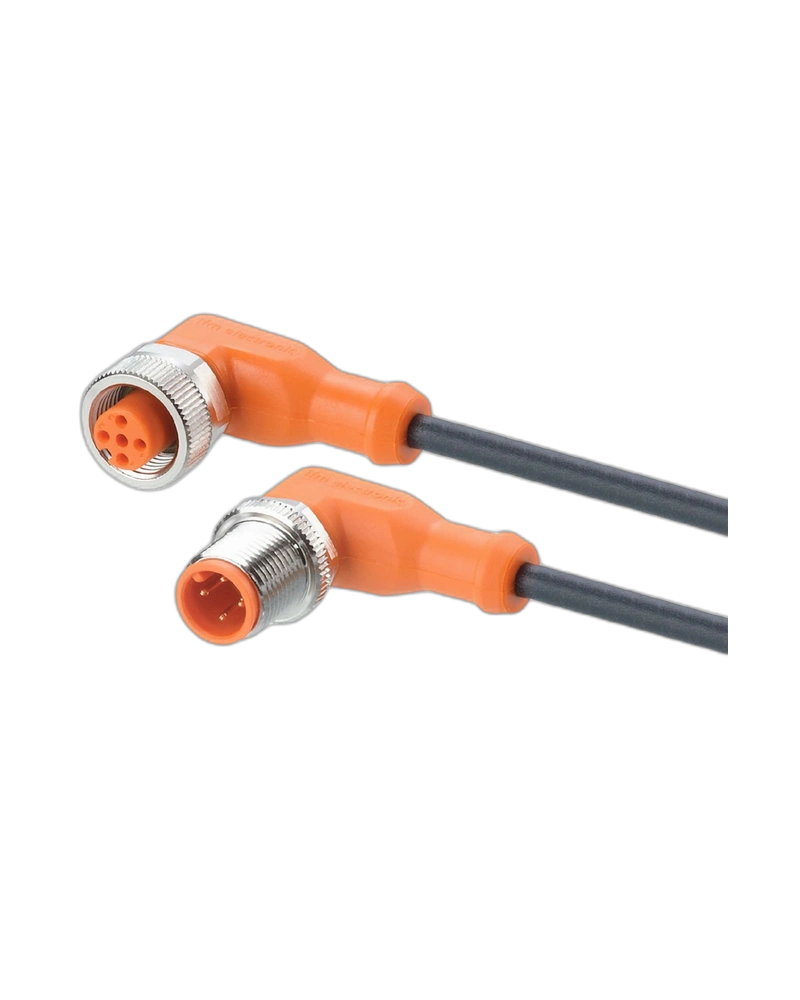

EVC033 uses angled M12 plug and socket connectors with A coding and four gold-plated contacts. TPU moulded bodies provide mechanical protection around the connectors. Nickel-plated brass locking components provide secure connection during machine operation. FKM sealing provides reliable environmental protection at the interface.
The 2 m cable is manufactured from black halogen-free PUR and contains four 0.34 mm² conductors. It is designed for flexible industrial installation and drag-chain use. The cable supports a minimum bending radius of 10 times its diameter. More than five million bending cycles are supported under specified conditions.
EVC033 supports less than 250 V AC and less than 300 V DC with a 4 A maximum current load. It operates from -25 to +90 °C and provides IP65/IP67/IP68/IP69K protection. The cable is suitable for harsh industrial environments and coolant or lubricant exposure. Its mechanical construction supports vibration, shock and continuous machine movement.
2 m extended cable
Angled M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
Halogen-free PUR
Silicone-free
IP69K protection
Drag-chain suitability
Oil resistant
Coolant resistant
Vibration and shock resistant
Machine tools
Factory automation
Industrial sensors
Actuators
Moving machinery
Automation equipment
Coolant environments
Industrial control systems
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC033 |
| Model | VDOAH040MSS0002H04STAH040MSS |
| Cable Length | 2 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Dimensions | 30.5 × 15.5 × 36.5 mm |
| Weight | 88 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
