EVC032 is a 1 m M12 connection cable designed for dependable industrial sensor and actuator connections. It uses angled M12 plug and socket interfaces for flexible routing in machine installations. The cable features halogen-free PUR insulation and gold-plated contacts. Its rugged construction supports reliable performance in harsh automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 1 m cable length provides a practical connection distance for standard machine automation installations. EVC032 supports AC/DC applications with a maximum current load of 4 A. Its connector design provides secure coupling even under vibration and shock. The cable is suitable for factory automation, machine tools and moving industrial equipment.

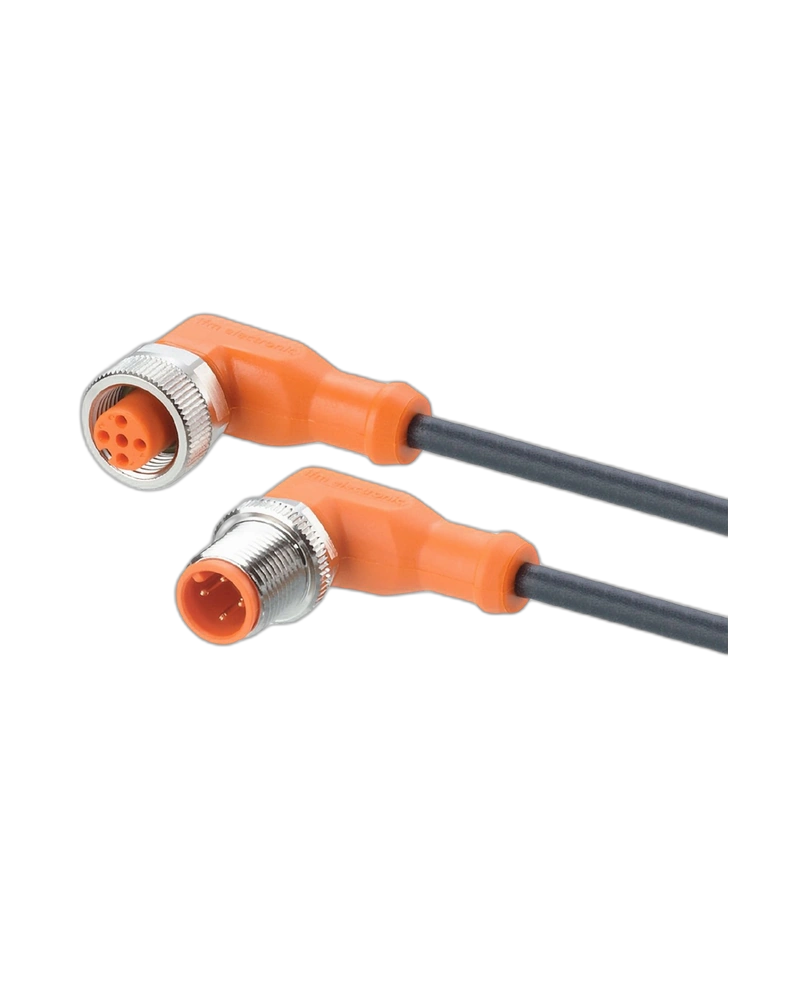

The product incorporates angled A-coded M12 plug and socket connections. Each connector provides four gold-plated contacts for reliable electrical transmission. TPU housings and nickel-plated brass locking components provide strong mechanical connection. FKM sealing provides additional environmental protection around the interface.
EVC032 uses a 1 m black PUR cable containing four 0.34 mm² conductors. The cable is halogen-free and silicone-free for industrial installation requirements. Its flexible construction supports drag-chain applications and repeated movement. The cable is rated for more than five million bending cycles.
The cable supports less than 250 V AC and less than 300 V DC with a maximum current load of 4 A. It operates from -25 to +90 °C and provides IP65/IP67/IP68/IP69K protection. Its industrial construction is resistant to oils and coolants. The connector locking mechanism provides resistance against vibration and shock.
1 m cable
Angled M12 plug
Angled M12 socket
A-coded interface
Gold-plated contacts
PUR insulation
Halogen-free
Silicone-free
IP69K protection
Drag-chain compatible
Oil and coolant resistant
High mechanical durability
Industrial automation
Machine tools
Sensor connections
Actuator connections
Factory machinery
Moving applications
Control systems
Industrial production equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC032 |
| Model | VDOAH040MSS0001H04STAH040MSS |
| Cable Length | 1 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Dimensions | 30.5 × 15.5 × 36.5 mm |
| Weight | 63.3 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
