EVC031 is a 0.6 m industrial M12 connection cable designed for reliable sensor and actuator wiring. It features angled M12 connections that support efficient routing around machine components. The cable uses flexible halogen-free PUR construction with gold-plated contacts. Its high protection rating makes it suitable for demanding factory and machine-tool environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 0.6 m cable length provides additional installation flexibility while maintaining a compact connection format. EVC031 supports AC/DC applications with a maximum current load of 4 A. Its robust connector assembly is designed to resist vibration and mechanical shock. The cable is suitable for industrial automation, sensors, actuators and moving machinery.

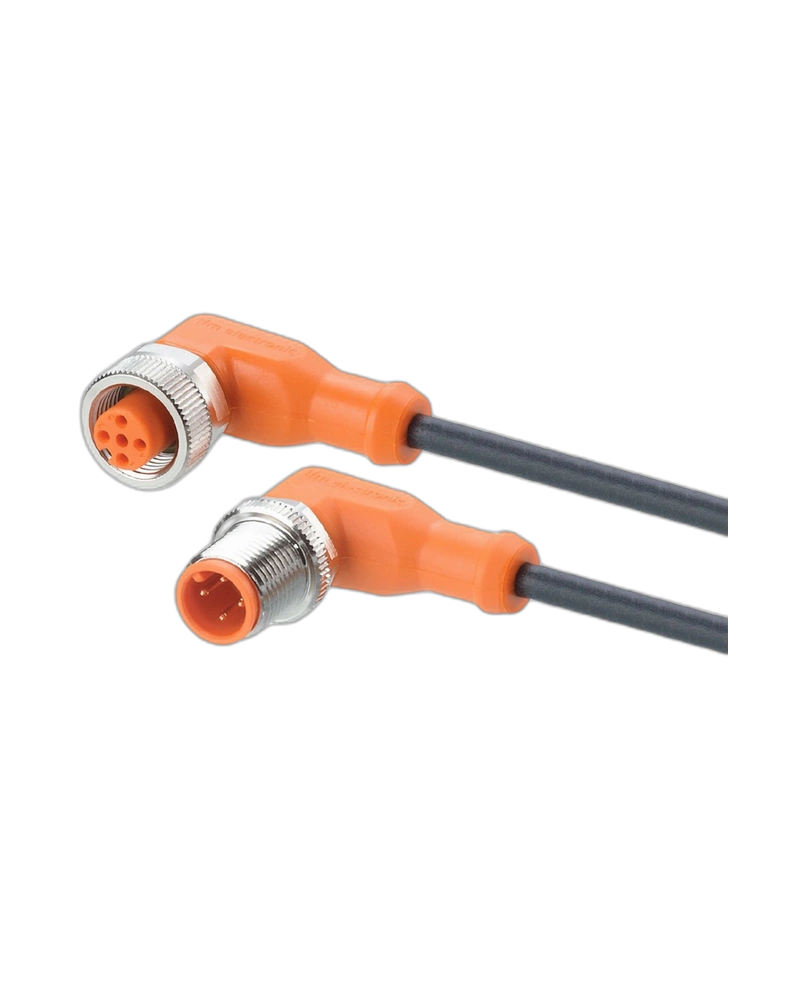

EVC031 uses angled M12 plug and socket connectors with A coding. Four gold-plated contacts provide stable electrical transmission and reliable connection performance. TPU connector bodies and nickel-plated brass locking components provide mechanical durability. FKM sealing protects the interface from industrial environmental exposure.
The 0.6 m cable is manufactured using black halogen-free PUR material with four 0.34 mm² conductors. Its flexible construction supports repeated bending and machine movement. Drag-chain suitability allows use in applications with continuous cable motion. The specified bending performance exceeds five million cycles.
EVC031 operates with less than 250 V AC or 300 V DC and supports up to 4 A. The operating temperature range is -25 to +90 °C. IP65/IP67/IP68/IP69K protection provides resistance to dust, water and industrial cleaning conditions. The cable is designed for applications involving oils, coolants, vibration and shock.
0.6 m cable length
Angled M12 connections
A-coded interface
Gold-plated contacts
Halogen-free PUR
Silicone-free construction
IP69K protection
Drag-chain compatible
Oil resistant
Coolant resistant
Vibration resistant
Shock resistant
Factory automation
Machine tools
Industrial sensor wiring
Actuator wiring
Moving equipment
Automation machinery
Control systems
Industrial production lines
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC031 |
| Model | VDOAH040MSS00,6H04STAH040MSS |
| Cable Length | 0.6 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Dimensions | 30.5 × 15.5 × 36.5 mm |
| Weight | 55.5 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
