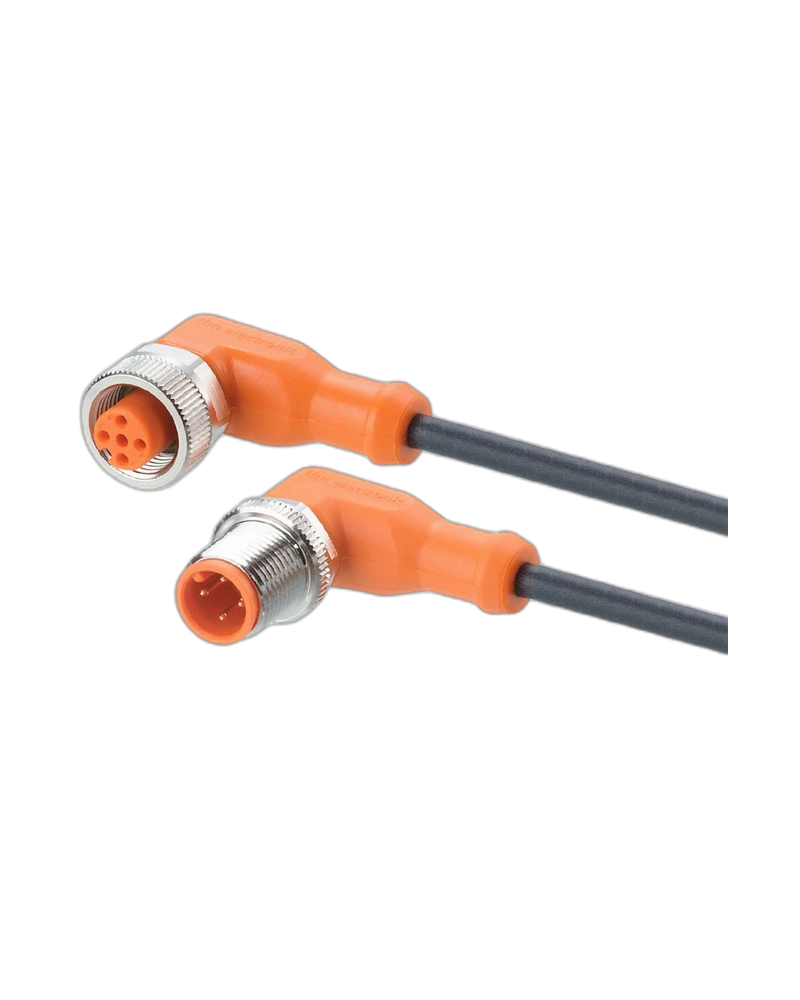

EVC030 is a compact 0.3 m M12 connection cable designed for industrial automation and sensor wiring. It uses angled M12 plug and socket connections for convenient routing in restricted installation spaces. The cable features halogen-free PUR insulation and gold-plated contacts. Its IP69K-rated construction provides reliable performance in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC030 provides a short connection path between compatible industrial sensors, actuators and automation equipment. Its compact 0.3 m length is suitable for closely positioned components and machine assemblies. The cable supports AC and DC applications with a maximum current load of 4 A. Its robust construction is designed for machine tools, factory automation and moving equipment.
EVC030 uses two angled M12 connectors with A coding and four gold-plated contacts. Both connector bodies are manufactured from durable TPU material. Nickel-plated brass locking components provide secure mechanical coupling during vibration and movement. FKM sealing provides reliable protection against environmental contaminants.
The cable is 0.3 m long and uses black halogen-free PUR insulation. It contains four 0.34 mm² conductors with a 4.3 mm cable diameter. The construction is suitable for drag-chain applications and repeated bending. The cable supports more than five million bending cycles under specified operating conditions.
EVC030 supports less than 250 V AC and less than 300 V DC with a 4 A maximum current load. The cable operates from -25 to +90 °C and provides IP65/IP67/IP68/IP69K protection. Its construction is resistant to oils and coolants commonly found in machine-tool environments. Vibration and shock resistance are supported by the connector locking mechanism.
0.3 m compact cable
Angled M12 plug
Angled M12 socket
A-coded connection
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
IP69K protection
Drag-chain suitable
Oil and coolant resistant
Vibration resistant
Industrial automation
Machine-tool wiring
Sensor connections
Actuator connections
Compact machine assemblies
Moving machinery
Factory automation
Industrial control equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC030 |
| Model | VDOAH040MSS00,3H04STAH040MSS |
| Cable Length | 0.3 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Dimensions | 30.5 × 15.5 × 36.5 mm |
| Weight | 44.6 g |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
