EVC02E is a PNP/NPN signal converter designed to provide reliable signal conversion for compatible industrial sensors. It is intended for sensors with normally closed operation and supports sensor systems conforming to IEC 60947-5-2. The module uses a 24 V DC supply and includes an integrated 5 m PUR cable. Its compact construction and high protection rating make it suitable for industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC02E enables signal compatibility between sensor output configurations and automation control equipment. It is particularly designed for PNP-to-NPN signal conversion and normally closed sensor applications. The module provides a compact interface solution without requiring a separate external converter enclosure. Its IP65/IP67/IP68/IP69K protection supports operation in demanding industrial environments.

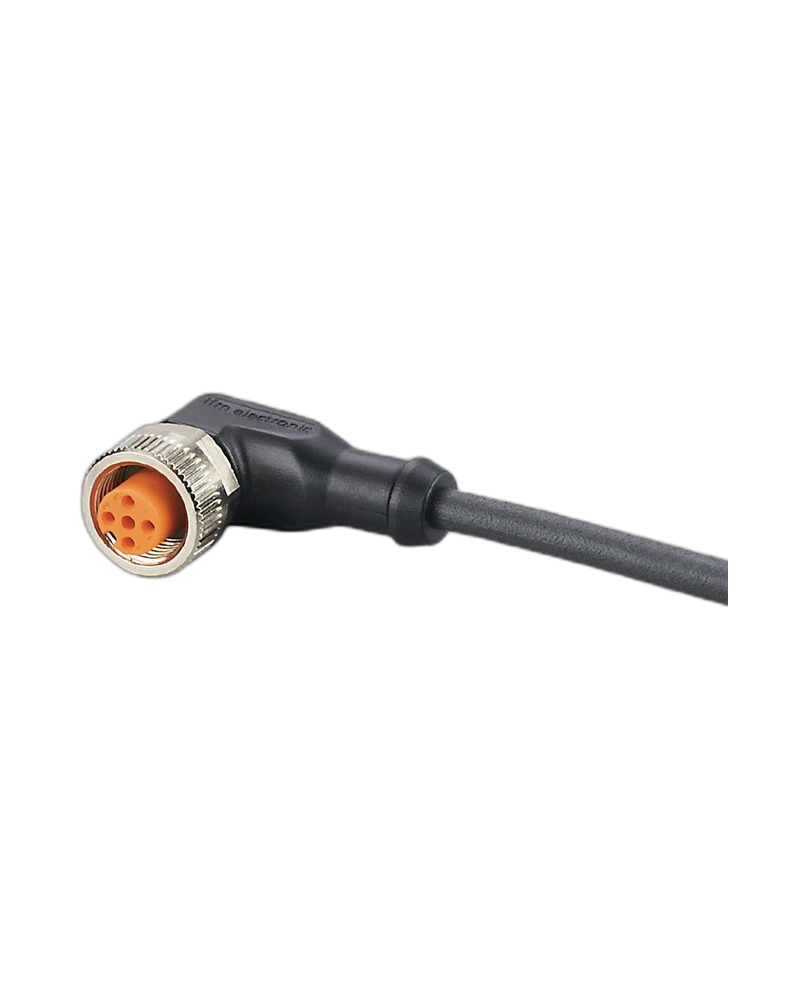

The module uses an angled A-coded M12 socket with four gold-plated contacts. A nickel-plated brass locking nut provides secure mechanical connection while the FKM seal supports environmental protection. The integrated 5 m cable simplifies installation between the sensor and control system. The connector design is suitable for compact machine installations and automation panels.
The integrated cable is 5 m long and uses black halogen-free PUR insulation. It contains four 0.34 mm² conductors with a 4.3 mm cable diameter. The cable is suitable for drag-chain applications and repeated movement. Its construction supports more than five million bending cycles under specified conditions.
EVC02E operates at less than 24 V DC with a 10% operating-voltage tolerance and has a total current rating of 0.1 A. The maximum switching-output voltage drop is 2 V. It operates from -25 to +60 °C and provides IP65/IP67/IP68/IP69K protection. The module is suitable for signal conversion in industrial automation systems.
PNP/NPN signal conversion
Signal conversion at pin 2
24 V DC operation
Designed for normally closed sensors
Integrated 5 m cable
M12 A-coded connection
Gold-plated contacts
Halogen-free PUR cable
Drag-chain suitable
IP69K protection
Compact housing
High environmental resistance
PNP/NPN sensor integration
Industrial automation
Machine control systems
Sensor interface conversion
PLC input compatibility
Factory automation
Machine-tool applications
Automation panels
| Specification | Details |
|---|---|
| Product Type | PNP/NPN Inverter Module |
| Order Number | EVC02E |
| Function | PNP/NPN Signal Conversion |
| Signal | SIGNAL PIN 2 |
| Sensor Function | Normally Closed |
| Supply Voltage | <24 V DC |
| Voltage Tolerance | 10% |
| Current Rating | 0.1 A |
| Max. Voltage Drop | 2 V |
| Protection Class | II |
| Connector | M12 |
| Connector Design | Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, black |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection Rating | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...60 °C |
| Moving Temperature | -25...60 °C |
| Dimensions | 26.5 × 15.5 × 36.5 mm |
| Weight | 156 g |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Pack Quantity | 1 pc. |
