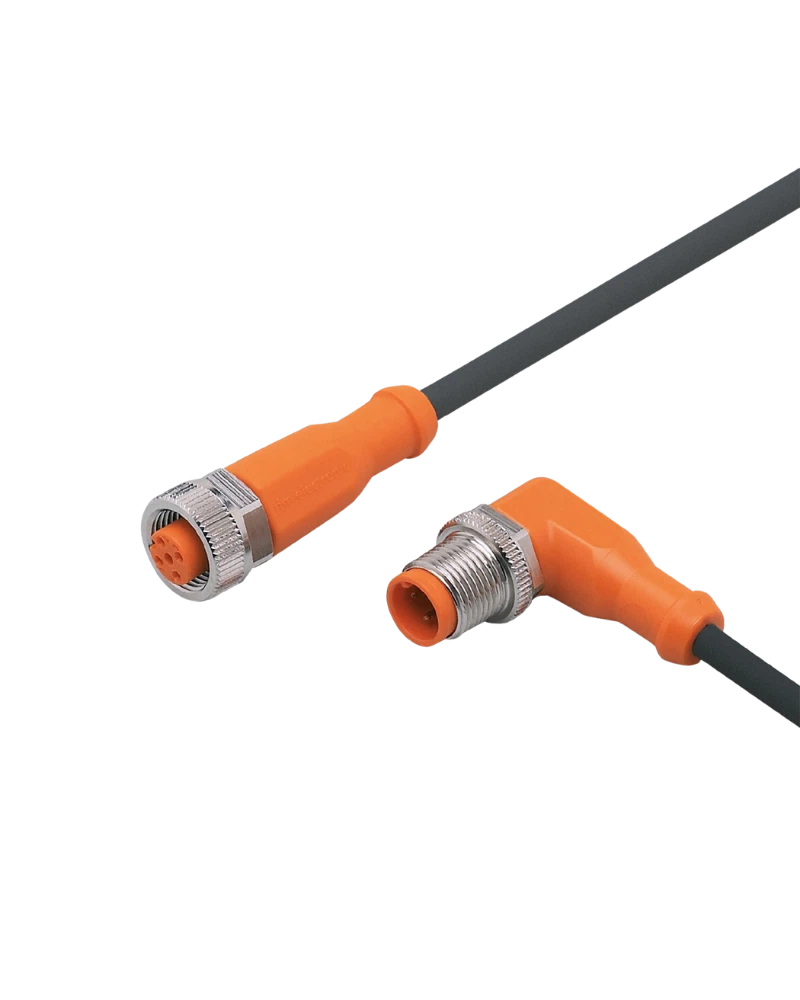

EVC025 is a compact 0.3 m M12 connection cable designed for reliable industrial sensor and automation connections. It features an angled M12 plug and straight M12 socket for convenient cable routing around machine components. The cable uses flexible halogen-free PUR insulation with gold-plated contacts. Its robust construction provides dependable operation in harsh industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
EVC025 is intended for short-distance connections between M12-compatible sensors, actuators and automation components. The angled plug helps direct the cable away from the connected device where installation space is limited. The cable is free from silicone and halogens and is suitable for drag-chain applications. Its high protection rating supports use in machine tools and factory automation.
The product uses an angled M12 plug and straight M12 socket with A coding. Both connectors use four gold-plated contacts for reliable electrical transmission. TPU connector bodies and nickel-plated brass locking components provide secure mechanical coupling. FKM sealing supports reliable environmental protection at the socket connection.
The cable is 0.3 m long and uses black PUR insulation with four 0.34 mm² conductors. The halogen-free and silicone-free construction provides flexibility for industrial installation. It is suitable for drag-chain applications with a minimum bending radius of 10 times the cable diameter. The cable supports more than five million bending cycles under specified conditions.
EVC025 supports up to 250 V AC and 300 V DC with a maximum current load of 4 A. IP65, IP67, IP68 and IP69K protection provides strong environmental protection. It is resistant to oils and coolants and suitable for machine-tool applications. The locking mechanism provides resistance against vibration and shock.
0.3 m cable
Angled M12 plug
Straight M12 socket
A-coded connection
Gold-plated contacts
PUR cable
Halogen-free
Silicone-free
FKM sealing
IP69K protection
Drag-chain suitable
Oil and coolant resistant
Industrial sensors
Machine tools
Factory automation
Compact machine assemblies
Sensor connections
Moving machinery
Control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC025 |
| Model | VDOGH040MSS00,3H04STAH040MSS |
| Cable Length | 0.3 m |
| Electrical Design | AC/DC |
| Operating Voltage | <250 V AC / <300 V DC |
| Current Rating | 4 A |
| Protection Class | II |
| Plug | M12, angled |
| Socket | M12, straight |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 4.3 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU, orange |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Pack Quantity | 1 pc. |
