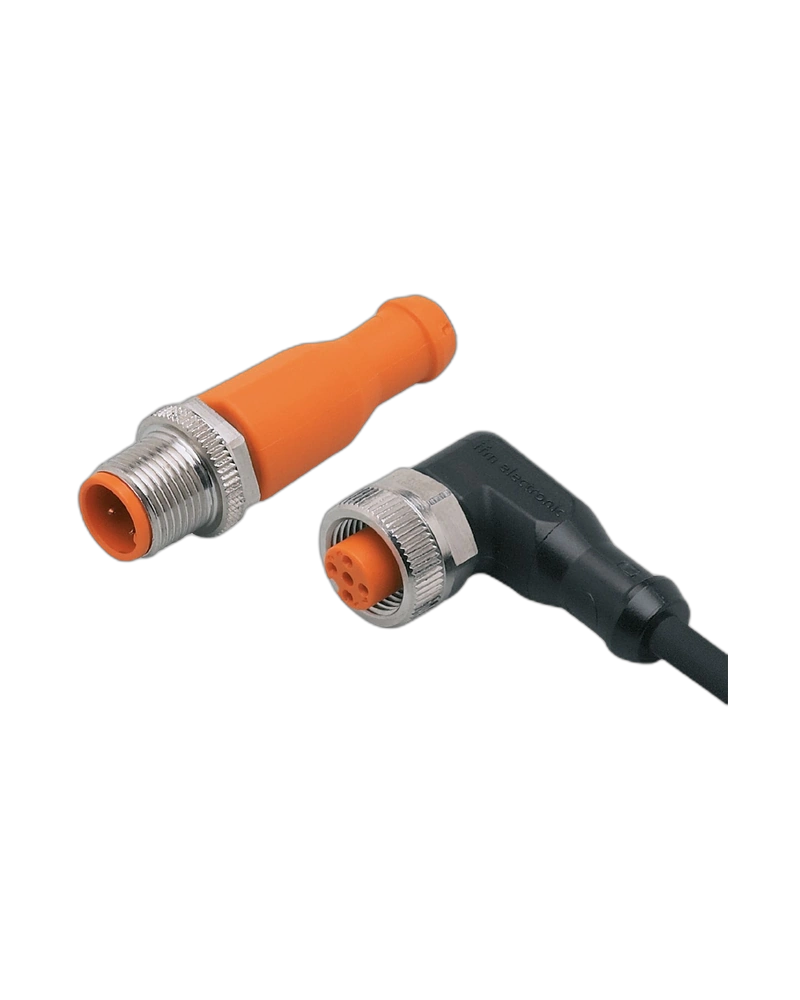

EVC024 is a 5 m M12 connection cable designed for PNP industrial sensors and automation equipment. It combines a straight M12 plug with an angled M12 socket and integrated LED indication. The extended cable length provides greater installation flexibility while maintaining robust industrial performance. Its PUR cable, gold-plated contacts and IP69K protection make it suitable for demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 5 m cable provides extended reach for machine and factory automation installations. Its 10–36 V DC PNP design supports compatible industrial sensors and automation devices. Two yellow switching LEDs and a green power LED provide direct visual feedback. The cable is suitable for moving applications, machine tools and environments involving oils and coolants.
EVC024 uses a straight M12 plug and angled M12 socket with A coding. Four gold-plated contacts provide dependable electrical connection. TPU connector bodies and nickel-plated brass locking components provide mechanical strength and secure coupling. FKM sealing and the high protection rating help maintain reliable operation in harsh environments.
The 5 m cable uses black halogen-free PUR insulation and four 0.34 mm² conductors. The cable is silicone-free and suitable for drag-chain applications. It supports a minimum bending radius of 10 times the cable diameter and more than five million bending cycles. Its construction provides resistance to industrial oils, coolants and mechanical movement.
EVC024 supports 10–36 V DC and a maximum current load of 4 A. IP65, IP67, IP68 and IP69K ratings provide protection against dust, water and demanding cleaning conditions. The cable is suitable for machine tools, factory automation and moving equipment. The specified MTTF is approximately 20,027 years.
5 m cable length
DC PNP design
10–36 V DC
Straight M12 plug
Angled M12 socket
Gold-plated contacts
2 yellow switching LEDs
Green power LED
Halogen-free PUR cable
Silicone-free
IP69K protection
Drag-chain suitable
Long-distance sensor connections
PNP sensor systems
Factory automation
Machine tools
Moving machinery
Sensor diagnostics
Industrial control systems
Automation equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC024 |
| Model | VDOAH043MSS0005H04STGH040MSS |
| Cable Length | 5 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Connector | M12 plug / M12 socket |
| Design | Straight / Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU |
| Locking | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Status LEDs | 2 × yellow |
| Power LED | Green |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc. |
