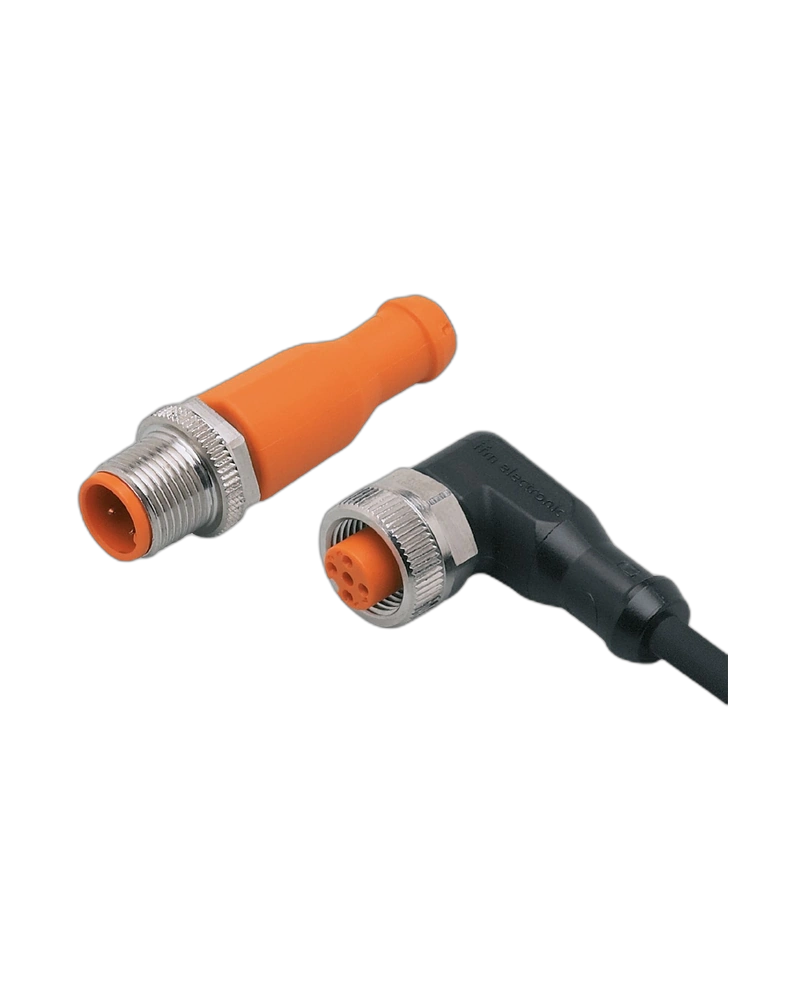

EVC023 is a 2 m M12 PNP connection cable designed for industrial sensor and automation systems. It combines a straight M12 plug with an angled M12 socket and provides integrated visual status indication. The PUR cable is halogen-free and silicone-free, offering flexibility and durability in industrial environments. Its high IP protection rating supports reliable use in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The 2 m cable provides extended reach for connecting sensors and automation devices positioned farther apart. Its 10–36 V DC PNP design supports standard industrial sensor interfaces. Integrated LEDs provide clear switching and power status information during commissioning and maintenance. The product is suitable for factory automation, machine tools and moving machinery.
EVC023 features a straight M12 plug and angled M12 socket with A coding. Four gold-plated contacts provide reliable signal transmission and long-term connection performance. The connector uses orange TPU material, nickel-plated brass locking hardware and FKM sealing. The integrated yellow and green LEDs make operating status easy to identify.
The 2 m cable contains four 0.34 mm² conductors inside a black PUR outer jacket. The cable is free from silicone and halogens and is suitable for industrial environments. It supports drag-chain applications with a minimum bending radius of 10 times the cable diameter. The construction supports more than five million bending cycles under specified conditions.
EVC023 supports 10–36 V DC operation and a maximum current of 4 A. IP65/IP67/IP68/IP69K protection provides strong resistance against environmental exposure. The cable is suitable for industrial applications involving coolants, lubricants and machine-tool operation. Its MTTF is approximately 20,027 years.
2 m cable
PNP electrical design
10–36 V DC
Straight M12 plug
Angled M12 socket
Gold-plated contacts
2 yellow switching LEDs
Green power LED
PUR cable
Halogen-free
Silicone-free
IP69K protection
Industrial automation
Machine tools
PNP sensor systems
Factory automation
Sensor diagnostics
Moving machinery
Control systems
Industrial production equipment
| Specification | Details |
|---|---|
| Product Type | Connection Cable |
| Order Number | EVC023 |
| Model | VDOAH043MSS0002H04STGH040MSS |
| Cable Length | 2 m |
| Electrical Design | DC PNP |
| Operating Voltage | 10...36 V DC |
| Current Rating | 4 A |
| Connector | M12 plug / M12 socket |
| Design | Straight / Angled |
| Coding | A |
| Contacts | 4, gold-plated |
| Cable Material | PUR |
| Cable Diameter | 4.9 mm |
| Conductors | 4 × 0.34 mm² |
| Housing | TPU |
| Locking Nut | Brass, nickel-plated |
| Sealing | FKM |
| Protection | IP65/IP67/IP68/IP69K |
| Ambient Temperature | -25...90 °C |
| MTTF | 20,027 years |
| Status LEDs | 2 × yellow |
| Power LED | Green |
| Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >5 million |
| Travel Speed | Max. 3.3 m/s |
| Torsional Strain | ±180°/m |
| Pack Quantity | 1 pc. |
